| Place of Origin: | China |
| Brand Name: | MIROC Top Hammer Rock Drilling Tools |
| Certification: | SGS |
| Model Number: | Speed Rod |
| Minimum Order Quantity: | 10 Pieces Speed Rod |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month Thread MF- Rod |
| Name: | Drifter Rod | Type: | Round And Hex Drill Rod |
|---|---|---|---|
| Thread: | R32 R38 T38 | Diameter: | 32mm |
| Length: | 3660mm 3050mm | Application: | Short Hole Drilling, Drifting And Tunneling |
| Highlight: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||
Product introduction
Basic Information
| Product Name | Threaded Drill Rod |
| Thread | R32 R38 T38 |
| Diameter | 32mm, 35mm, 39mm, |
| Length | 400mm - 5530mm |
| Drill Rod Type | Extension Rod, Hex Rod, |
| Material | High strength alloy steel bar |
| Color | Black or based on customer requirements. |
Drill rod using R32/R38/T38 thread system.
With wrench flats to aid in coupling/decoupling of rods for extension drilling.
Used in benching and long hole drilling.
Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system
1. Drifter Rod R/T38-Hex 32-R32 Specification
| Model |
Length (mm) |
Diameter (mm) |
Part Number | Product Code | ||
|
Drifter Rod R/T38-Hex 32-R32 Flushing hole 9.6mm |
2400 | 32 | 4148300560 | DRH32-R32R/T38-2400 | ||
| 3090 | 32 | 4148300561 | DRH32-R32R/T38-3090 | |||
| 3400 | 32 | 4148300562 | DRH32-R32R/T38-3400 | |||
| 4000 | 32 | 4148300563 | DRH32-R32R/T38-4000 | |||
| 4310 | 32 | 4148300564 | DRH32-R32R/T38-4310 | |||
| 4920 | 32 | 4148300565 | DRH32-R32R/T38-4920 | |||
| 5530 | 32 | 4148300566 | DRH32-R32R/T38-5530 | |||
2. Drifter Rod R/T38-Hex 35-R32 Specification
| Model | Length (mm) |
Diameter (mm) |
Part Number | Product Code |
|
R/T38-Hex 35-R32 |
3090 | 35 | 4148300567 | DRH35-R32R/T38-3090 |
| 3700 | 35 | 4148300568 | DRH35-R32R/138-3700 | |
| 4000 | 35 | 4148300569 | DRH35-R32R/T38-4000 | |
| 4310 | 35 | 4148300570 | DRH35-R32R/T38-4310 | |
| 4920 | 35 | 4148300571 | DRH35-R32R/T38-4920 | |
| 5530 | 35 | 4148300572 | DRH35-R32R/T38-5530 | |
| 6100 | 35 | 4148300573 | DRH35-R32R/T38-6100 |
3. Speed Rod T38-Hex 35-R32 Specification
| Model | Length (mm) |
Diameter (mm) |
Part Number | Product Code |
|
T38-Hex 35-R32 |
3700 | 35 | 4148300574 | SRH35-R32T38-3700 |
| 4310 | 35 | 4148300575 | SRH35-R32T38-4310 | |
| 4920 | 35 | 4148300576 | SRH35-R32T38-4920 | |
| 5530 | 35 | 4148300577 | SRH35-R32T38-5530 | |
| 6400 | 35 | 4148300578 | SRH35-R32T38-6400 |
4. R38 Hex Extension Rod
R38-Hex 32-R38, Flushing Hole 9.6 mm
| Model |
Length (mm) |
Diameter (mm) |
Part Number | Product Code | ||
|
R38 Hex Extension Rod
R38-Hex 32-R38
Flushing Hole 9.6 mm
|
1220 | 32 | 4148300698 | ERH32-R38-1220 | ||
| 1830 | 32 | 4148300699 | ERH32-R38-1830 | |||
| 2435 | 32 | 4148300700 | ERH32-R38-2435 | |||
| 3050 | 32 | 4148300701 | ERH32-R38-3050 | |||
| 3660 | 32 | 4148300702 | ERH32-R38-3660 | |||
5. T38 Hex Extension Rod
T38-Hex 32-T38 Flushing Hole 9.6mm
| Model |
Length (mm) |
Diameter (mm) |
Part Number | Product Code | ||
|
T38 Hex Extension Rod
T38-Hex 32-T38
Flushing Hole 9.6 mm
|
1220 | 32 | 4148300791 | ERH32-T38-1220 | ||
| 1830 | 32 | 4148300792 | ERH32-T38-1830 | |||
| 2435 | 32 | 4148300793 | ERH32-T38-2435 | |||
| 3050 | 32 | 4148300794 | ERH32-T38-3050 | |||
| 3660 | 32 | 4148300795 | ERH32-T38-3660 |
|||
Application
• Underground mining
• Tunneling, quarrying
• Granite, Basalt, Limestone rock, etc.
Competitive Advantage
• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Product pictures

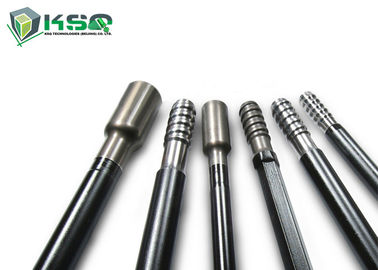

T38- Hex32-R32 Photos
