| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | DTH Button Bit |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Machine Type: | Drilling Tool | Use: | Well Drilling |
|---|---|---|---|
| Type: | DHD360 Drill Bit | Advantage: | High Wear Resistant,Widely Used Hard Rocks And Have Good Penetration |
| Packing: | Wooden Case | Face: | Flat / Convex / Concave |
| High Light: | carbide tipped drill bits,dth button bits |
||
6 inch High Air Pressure DHD360 drill bit and hammer
for Down the hole rock drilling
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Basic Information
|
Product |
DTH Button Bits |
| Low Air Pressure | CIR80, CIR90 |
|
3’’ |
DHD3.5, M30, |
|
4’’ |
DHD340, SD4,QL40, M40 |
|
5’’ |
DHD350, SD5,QL50, M50 |
|
6’’ |
DHD360, SD6,QL60, M60 |
|
8’’ |
DHD380, SD8,QL80, M80 |
|
Color |
Green, Gold, Black or based on customer requirements. |
|
MOQ: |
No MOQ required for testing and trial order |
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

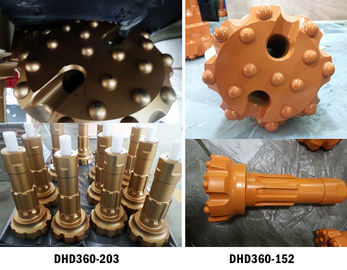

6'' High Air Pressure DTH Bit for DHD360 Shank Specification
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | |||
| mm | inch | Front | Gauge | kg | |||
| DHD360 Spherical button/Concave face | |||||||
| 152 | 6 | 4×16,4×16 | 8×18 | 2 | 26 | 4148301383 | |
| 155 | 6 1/8 | 4×16,4×16 | 8×18 | 2 | 27 | 4148301384 | |
| 159 | 6 1/4 | 4×16,4×16 | 8×18 | 2 | 29 | 4148301385 | |
| 165 | 6 1/2 | 4×16,4×16 | 8×18 | 2 | 30 | 4148301386 | |
| 165 | 6 1/2 | 4×18,4×18 | 8×18 | 2 | 30 | 4148301387 | |
| 172 | 6 3/4 | 4×18,4×18 | 8×18 | 2 | 31 | 4148301388 | |
| 178 | 7 | 4×18,4×18 | 8×18 | 2 | 32 | 4148301389 | |
| 190 | 7 1/2 | 3×18,5×18 | 9×18 | 3 | 34 | 4148301390 | |
| 203 | 8 | 3×18,6×18 | 9×18 | 3 | 36 | 4148301391 | |
| DHD360 Ballistic button/Convex face | |||||||
| 152 | 6 | 6×16,4×16 | 9×18 | 3 | 26 | 4148301392 | |
| 155 | 6 1/8 | 6×16,4×16 | 9×18 | 3 | 27 | 4148301393 | |
| 159 | 6 1/4 | 6×16,4×16 | 9×18 | 3 | 29 | 4148301394 | |
| 165 | 6 1/2 | 6×18,4×18 | 9×18 | 3 | 30 | 4148301395 | |
| 172 | 6 3/4 | 6×18,4×18 | 9×18 | 3 | 31 | 4148301396 | |
| 178 | 7 | 6×18,4×18 | 9×18 | 3 | 32 | 4148301397 | |
| 190 | 7 1/2 | 6×18,5×18 | 9×18 | 3 | 34 | 4148301398 | |
| 203 | 8 | 6×18,6×18 | 9×18 | 3 | 36 | 4148301399 | |
| DHD360 Spherical button/Flat face | |||||||
| 152 | 6 | 8×16 | 9×18 | 3 | 26 | 4148301400 | |
| 155 | 6 1/8 | 8×16 | 9×18 | 3 | 27 | 4148301401 | |
| 159 | 6 1/4 | 9×16 | 9×18 | 3 | 29 | 4148301402 | |
| 165 | 6 1/2 | 8×16 | 9×18 | 3 | 30 | 4148301403 | |
| 165 | 6 1/2 | 8×16 | 9×18 | 3 | 30 | 4148301404 | |
| 172 | 6 3/4 | 8×18 | 9×18 | 3 | 31 | 4148301405 | |
| 178 | 7 | 8×18 | 9×18 | 3 | 32 | 4148301406 | |
| 190 | 7 1/2 | 9×18 | 9×18 | 3 | 34 | 4148301407 | |
| 203 | 8 | 9×18 | 9×18 | 3 | 36 | 4148301408 | |
We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Keywords
DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit
