Black Thread T38 Drill semi bridge Coupling Sleeve Length 7 1 / 2 Inch Diameter 55mm

Black Thread T38 Drill semi bridge Coupling Sleeve Length 7 1 / 2 Inch Diameter 55mm

  • Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm
  • Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm
  • Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm
  • Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm
  • Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm
Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm
Product Details:
Place of Origin: China
Brand Name: MIROC T38 Coupling Sleeve
Model Number: T38 Coupling Sleeve
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces T38 Coupling Sleeve
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-15 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Name: T38 Coupling Sleeve Diameter: 55mm
Length: 190mm Color: Black
Weight: 2.1kg Thread: T38
High Light:

crossover coupling

,

rock drilling tool

,

threaded coupling



T38 Coupling Sleeve With Length 190mm Diameter 55mm



T38 Mining Coupling Sleeve Rock Drilling Tools

Description


Coupling Sleeve using T38 thread system

T38 thread system

Color: Green or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process



Applications


• Underground Mining

• Widely used in drifting and tunneling



Used in small hole drilling.


Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



Couplings sleeve are used to well connect the shank adapter to the drill rods or well contact two extension rods for transmitting energy. It has standard type coupling and crossover coupling.



Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 0


T38 Coupling Sleeve



Diameter: 55mm



Length: 190mm



Miroc P/N4148300803



Color: Black



Weight: 2.1kg



Widely used drifting and tunneling

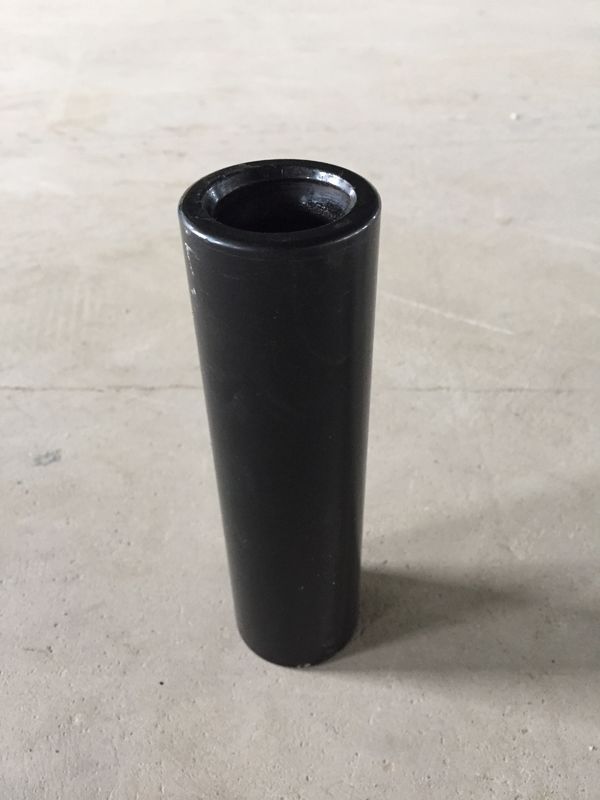

T38 Thread Coupling Sleeve Photos:



T38 Coupling Sleeve [D:55x190mm] P/N4148300805



Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 1

Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 2

Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 3



T38 Coupling Sleeve Specification

Coupling Length Diameter Thread Weight Part Number
mm inch mm inch kg
Coupling 190 7 1/255   2 1/6 T38 2.1 CS-T38-190



T38 190mm Coupling Sleeve



Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 4







Coupling Sleeve Package

Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 5



Coupling Sleeve from KSQ Technologies:



Coupling Sleeve Type:



1. Semi-Bridge Coupling



2. Full-Bridge Coupling



3. Adapter Coupling





Black Thread T38 Drill semi bridge Coupling Sleeve Length 7  1 / 2 Inch Diameter 55mm 6



More Coupling Sleeves from KSQ Technologies:

Coupling Sleeve
Length Diameter Thread Weight Part Number
mm inch mm inch   kg
R25 Coupling Sleeve
150 5 8/9 35 1 3/8 R25 0.7 4148300429
155 6 1/9 44 1 3/4 R25 1.0 4148300430
160 6 2/7 38 1 1/2 R25 1.3 4148300431
R28 Coupling Sleeve
150 5 8/9 40 1 4/7 R28 0.9 4148300483
170 6 5/7 55 2 1/6 R28 2.0 4148300484
R32 Coupling Sleeve
150 5 8/9 44 1 3/4 R32 1.0 4148300646
160 6 2/7 44 1 3/4 R32 1.1 4148300647
R38 Coupling Sleeve
170 6 5/7 55 2 1/6 R38 1.9 4148300703
190 7 1/2 55 2 1/6 R38 2.1 4148300704
T38 Coupling Sleeve
190 7 1/2 55 2 1/6 T38 2.1 4148300803
T45 Coupling Sleeve
210 8 1/4 63 2 1/2 T45 3.0 4148300881
210 8 1/4 66 2 3/5 T45 3.3 4148300882
T51 Coupling Sleeve
225 8 6/7 71 2 4/5 T51 4.6 4148300961
225 8 6/7 76 3 T51 4.8 4148300962
235 9 1/4 72 2 5/6 T51 4.7 4148300963
235 9 1/4 77 3 T51 4.9 4148300964



Crossover Coupling Specification

Length Diameter Thread Weight Part Number
mm inch mm inch   kg
R25-R32
150 5 8/9 45 1 7/9 R25-R32 1.1 4148300432
160 6 2/7 45 1 7/9 R25-R32 1.2 4148300433
R25-R38 Crossover Coupling
160 6 2/7 56 2 1/5 R25-R38 2.5 4148300434
170 6 5/7 56 2 1/5 R25-R38 3.2 4148300435
R28-R32 Crossover Coupling
160 6 2/7 45 1 7/9 R28-R32 1.2 4148300485
160 6 2/7 56 2 1/5 R28-R32 2.5 4148300486
R28-R38 Crossover Coupling
160 6 2/7 55 2 1/6 R28-R38 1.8 4148300584
170 6 5/7 55 2 1/6 R28-R38 2.0 4148300585
180 7 1/9 55 2 1/6 R28-R38 2.2 4148300586
210 8 1/4 55 2 1/6 R28-R38 2.8 4148300587
R28-T38 Crossover Coupling
170 6 5/7 56 2 1/5 R28-T38 2.1 4148300588
180 7 1/9 56 2 1/5 R28-T38 2.2 4148300589
210 8 1/4 56 2 1/5 R28-T38 2.8 4148300590
R28-T45 Crossover Coupling
190 7 1/2 63 2 1/2 R28-T45 3.2 4148300591
