| Place of Origin: | China |
| Brand Name: | MIROC (KSQ) |
| Model Number: | Reaming Bit, Pilot Adapter |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 10 - 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pcs Per Month |
| Thread System: | R32 | Application: | Mining Operations, Drifting And Tunneling, Quarrying, Construction |
|---|---|---|---|
| Material: | Tungsten Carbide | Color: | Blue,Green Or Based On Request |
| High Light: | reamer drill bit,tungsten drill bits,cnc drill bits |
||
Drifting and Tunneling Tools
Reaming Bit 6°
Pilot Adapter 6°
R32
Product specifications:
Reaming Bit 6°
| Drill Bit | Diameter, mm | No x Button Diameter | Flushing Hole | Weight approx., kg | |||
| Front | Gauge | Angle | Front | Side | |||
| Reaming Bit 6° | 64 | 2 x 10 | 8 x 9 | 35 | - | - | 0.8 |
| 64 | 4 x 8 | 8 x 9 | 25 | - | - | 0.8 | |
| 76 | 2 x 11 | 8 x 11 | 35 | - | - | 1.2 | |
| 76 | 4 x 10 | 8 x 10 | 30 | - | - | 1.2 | |
| 89 | 4 x 11 | 8 x 11 | 35 | - | - | 1.7 | |
| 89 | 4 x 10 | 8 x 10 | 30 | - | - | 1.7 | |
| Drill Bit | Diameter, mm | No x Button Diameter | Flushing Hole | Weight approx., kg | |||
| Front | Gauge | Front | Side | ||||
| Pilot Adapter 6° | 26 | 12 x 8 | - | - | - | 1.5 | |
This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter. Used in drifting and tunneling.
Reaming rock bit applicable to reaming for first-grade and second-grade larger-diameter hole. It can reduce the sectional area between bit blade and rock hole, also solve the problem of large diameter's low drilling speed in the hard formation with good directive.
Features:
Pilot Adapter 6°

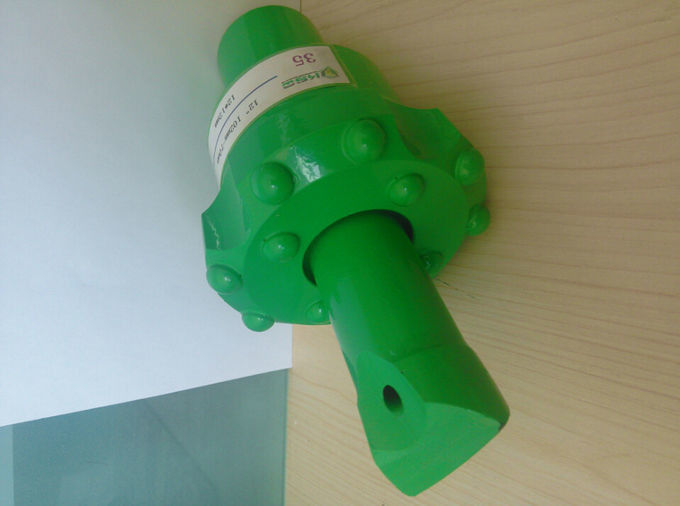

The whole construction: Reaming Bit 6° + Pilot Adapter 6°
Application:
1. Underground mining
2. Tunneling
3. In granite and marble quarry
4. Gold Mine
5. Dimensional Stone Industry
Package: Carton or Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-25 days.
P.S. We can design and manufacture products according to customers’ requirements.
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
