Name: Reaming Bit 12° Rock Drilling Tools Pilot Adapter 12° Dia 40mm For Large Cut Holes 35°
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: Reaming Bit, Pilot Adapter
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

Reaming Bit 12° Rock Drilling Tools Pilot Adapter 12° Dia 40mm For Large Cut Holes 35°

Product Details:

Place of Origin:	China
Brand Name:	MIROC (KSQ)
Model Number:	Reaming Bit, Pilot Adapter

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton or Wooden Box
Delivery Time:	10 - 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20000 PCS Per Month

Contact Now

Detailed Product Description

Thread:

R32

Application:

Mining Operations, Drifting And Tunneling, Quarrying, Construction

Color:

Black, Green Or Based On Requests

Material:

Tungsten Carbide

Highlight:

rock drill tools

mining drilling tools

Drifting and Tunneling Tools

Reaming Bit 12°

Pilot Adapter 12°

R32

Product specifications:

Reaming Bit 12°

Drill Bit	Diameter, mm	No x Button Diameter			Flushing Hole		Weight approx., kg
Drill Bit	Diameter, mm	Front	Gauge	Angle	Front	Side	Weight approx., kg
Reaming Bit 12°	89	4 x 10	8 x 12	35	-	-	1.8
	102	4 x 12	8 x 12	35	-	-	2.1
	127	4 x 12	8 x 12	35	-	-	4.0
	127	4 x 13	8 x 13	35	-	-	4.0

Pilot Adapter 12°

Drill Bit	Diameter, mm	No x Button Diameter			Flushing Hole		Weight approx., kg
		Front	Gauge		Front	Side
Pilot Adapter 12°	40	15 x 10		-	-	-	2.2

This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter. Used in drifting and tunneling.

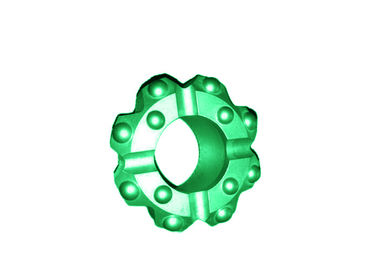

Reaming Bit 12° Rock Drilling Tools Pilot Adapter 12° Dia 40mm For Large Cut Holes 35° 0

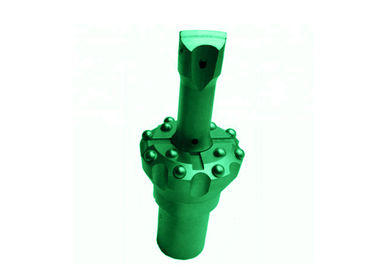

Reaming Bit 12° Rock Drilling Tools Pilot Adapter 12° Dia 40mm For Large Cut Holes 35° 1

Features:

Reaming bits for quarry are designed to enlarge pilot holes for development rounds,
Long hole blasting of drop raises and constructing service holes.
With Pilot adaptors, the drilling direction can be ensured and accurate.

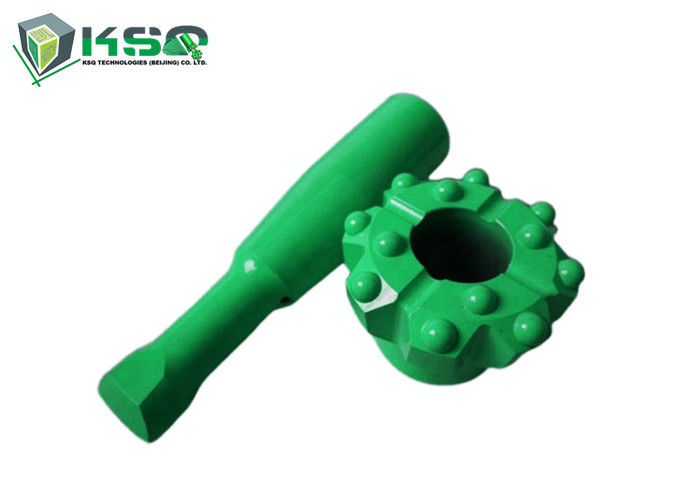

Reaming Bit 12° Rock Drilling Tools Pilot Adapter 12° Dia 40mm For Large Cut Holes 35° 2

Application:

1. Underground mining
2. Tunneling

3. In granite and marble quarry

4. Gold Mine

5. Dimensional Stone Industry

Package: Carton or Wooden Box; also we can follow customers' requirements.

Delivery time is around 15-25 days.

P.S. We can design and manufacture products according to customers’ requirements.

Company Information:

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

KSQ Technologies (Beijing) Co. Ltd.
Reaming Bit 12° Rock Drilling Tools Pilot Adapter 12° Dia 40mm For Large Cut Holes 35° 4
