Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm

Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm

Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm
Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm
Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm
Product Details:
Place of Origin: China
Brand Name: MIROC (KSQ)
Model Number: Coupling Sleeves
Payment & Shipping Terms:
Minimum Order Quantity: Negotiated one
Price: Negotiable
Packaging Details: Carton or Wooden box
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 pcs per Month
Contact Now
Detailed Product Description
Thread: R32 Application: Drifting And Tunneling, Underground Mining
Material: Tungsten Carbide And High Strength Alloy Steel Color: Black, Blue Or Based On Requests
Length, Mm: 150 - 210 Diameter, Mm: 45 - 63
High Light:

crossover coupling

,

rock drilling tool

,

threaded coupling

Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm



Specifications:

Coupling Length, mm Diameter, mm Thread Weight approx., kg
Coupling Sleeves 170 55 R38 1.8
190 55 T38 2.0



Coupling Length, mm Diameter, mm Thread Weight approx., kg
Coupling Sleeves of different diameter 150 45 R25-R32 1.1
160 45 R25-R32 1.2
160 45 R25-R32 1.2
160 55 R28-R32 1.8
170 55 R32-R38 2.0
180 55 R32-R38 2.2
210 55 R32-R38 2.8
170 56 R32-T38 2.1
180 56 R32-T38 2.2
210 56 R32-T38 2.8
190 63 R32-T45 3.2



Both couplings using R32 thread system. Used in drifting and tunneling.



Applications


• Underground Mining

• Widely used in drifting and tunneling



Used in small hole drilling.


Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



Couplings sleeve are used to well connect the shank adapter to the drill rods or well contact two extension rods for transmitting energy. It has standard type coupling and crossover coupling.



Processing: CNC milling and proprietary heat treatment process

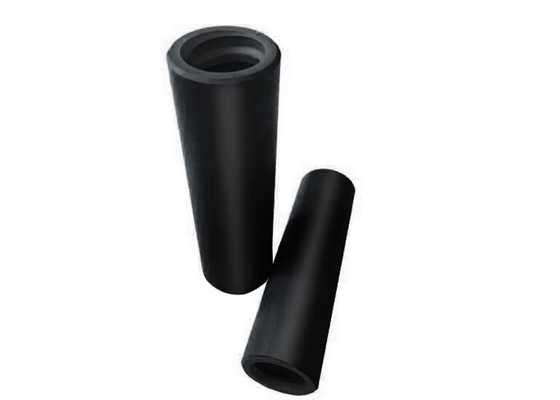

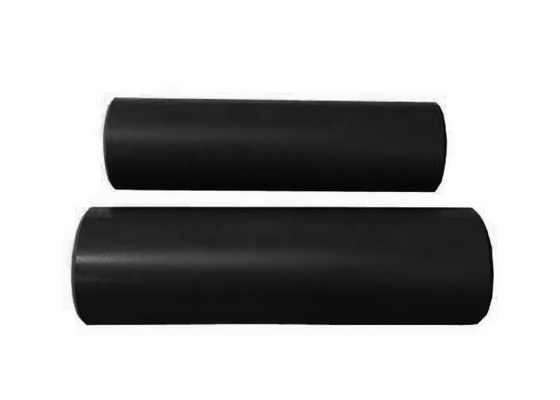

Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm 0Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm 1

Coupling Sleeve Types:



1. Semi-Bridge Coupling



2. Full-Bridge Coupling



3. Adapter Coupling

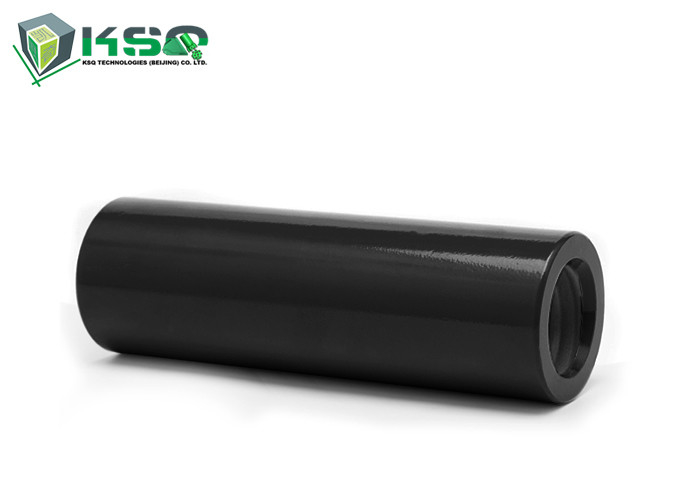

Crossover Standart Coupling Sleeves Thread R32 Length 150mm - 210mm 2



MIROC® Production:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers





Company Information:

DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve


The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.



MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.


KSQ Technologies (Beijing) Co. Ltd.
