| Place of Origin: | China |
| Brand Name: | MIROC /KSQ |
| Certification: | I |
| Model Number: | Threaded Rock Drill Rod |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | USD$30-$150 |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 20000 pcs per Month |
| Rod Type: | Extension, MF-Rod, Hex. Extension Rod | Thread: | R38 |
|---|---|---|---|
| Diameter, Mm: | 32, 39 | Length, Mm: | 915- 6095 |
| Material: | Tungsten Carbide And High Strength Alloy Steel | Application: | Mining Operations, Drifting And Tunneling, Quarrying, Construction |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||

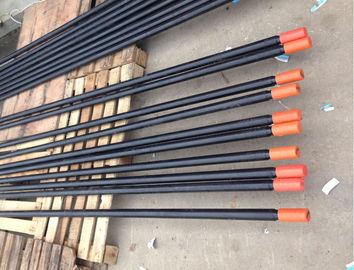

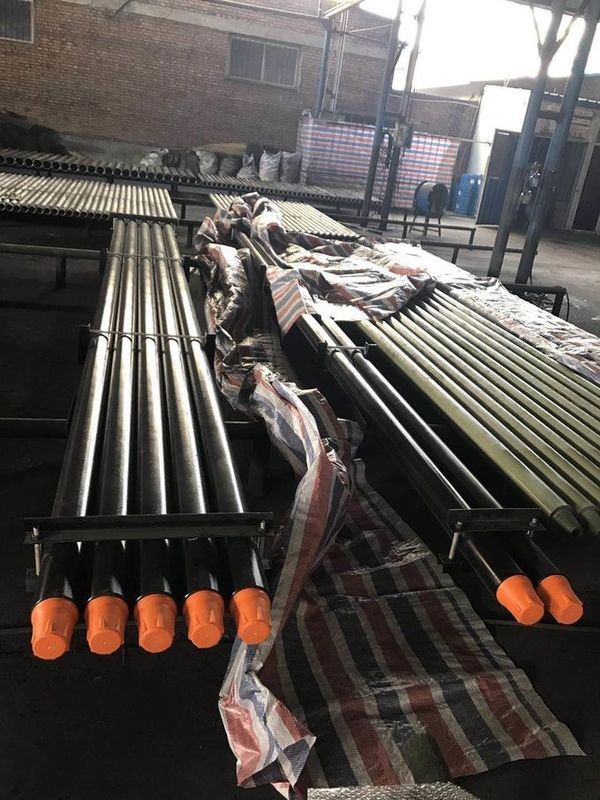

High Strength Hex Extension Drill Rod R38 Threaded Rock Drill Rod For Quarrying or Construction
1. Extension Rod R38 - Round39 - R38
Flushing hole 14.5mm
Wrench flat 32mm
| Length, mm | Diameter, mm | Weight, kg |
| 1220 | 39 | 10.2 |
| 1525 | 39 | 12.8 |
| 1830 | 39 | 15.3 |
| 2435 | 39 | 20.4 |
| 3050 | 39 | 25.5 |
| 3660 | 39 | 30.9 |
| 3965 | 39 | 33.2 |
| 4270 | 39 | 35.7 |
| 4880 | 39 | 41.0 |
| 5530 | 39 | 46.3 |
| 6095 | 39 | 50.9 |
2. MF-Rod R38 - Round39 - R38
Flushing hole 14.5mm
| Length, mm | Diameter, mm | Weight, kg |
| 915 | 39 | 10.7 |
| 1220 | 39 | 13.3 |
| 1525 | 39 | 15.8 |
| 1830 | 39 | 18.3 |
| 3050 | 39 | 28.5 |
| 3660 | 39 | 33.6 |
| 4270 | 39 | 38.7 |
| 4880 | 39 | 43.7 |
| 5530 | 39 | 49.2 |
| 6095 | 39 | 53.9 |
3. Hex. Extension Rod R38 - Hex32 - R38
Flushing hole 9.6mm
| Length, mm | Diameter, mm | Weight, kg |
| 1220 | 32 | 8.6 |
| 1830 | 32 | 12.6 |
| 2435 | 32 | 16.6 |
| 3050 | 32 | 20.8 |
| 3660 | 32 | 24.9 |
Features:
1. High-grade raw material
2. Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Application:
Underground mining and surface mining
Drifting, bench and production drilling
Granite, basalt, limestone rock etc.
P.S. We can design and manufacture products according to customers’ requirements.
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
