| Place of Origin: | China |
| Brand Name: | MIROC (KSQ) |
| Model Number: | MF-Rod T38-Round39-T38 |
| Minimum Order Quantity: | Negotiated one |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 10 - 25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pcs per Month |
| Type Of Rod: | MF-Rod | Thread: | T38 |
|---|---|---|---|
| Model: | T38-Round39-T38 | Color: | Black Or Based On Requests |
| Material: | Tungsten Carbide | Application: | Mining Operations, Bench Drilling And Long Hole Drilling, Drifting And Tunneling, Quarrying, Construction |
| Diameter, Mm: | 39 | Flushing Hole: | 14.5 Mm |
| High Light: | drill extension rod,rock drill rod |
||

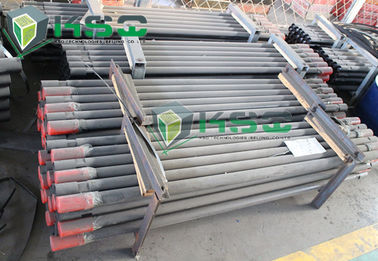

Speed Rod (MF - Rod)
T38 - Round39 - T38
Flushing Hole 14.5 mm
Specifications:
| Drill Rod | Length | Diameter | Weight, kg | ||
| mm | inch | mm | inch | ||
MF-Rod | 915 | 3’ | 39 | 1 ½ | 10.7 |
| 1220 | 4’ | 39 | 1 ½ | 13.3 | |
| 1525 | 5‘ | 39 | 1 ½ | 15.8 | |
| 1830 | 6’ | 39 | 1 ½ | 18.3 | |
| 3050 | 10’ | 39 | 1 ½ | 28.5 | |
| 3660 | 12’ | 39 | 1 ½ | 33.6 | |
| 4270 | 14’ | 39 | 1 ½ | 38.7 | |
| 4880 | 16’ | 39 | 1 ½ | 43.7 | |
| 5530 | 18’ 1 ½’ | 39 | 1 ½ | 49.2 | |
| 6095 | 20’ | 39 | 1 ½ | 53.9 | |
Drill rod using T38 thread system. In good rock conditions it will produce straighter holes and at least 10% higher penetration rate compared to rod and coupling sleeve combination system. Used in benching and long hole drilling.
Features:
1. High-grade raw material
2. Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Application:
• Underground Mining
• Drifting and Tunneling
• Benching and long hole drilling
• Quarrying
Package: Carton or Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-25 days.
P.S. We can design and manufacture products according to customers’ requirements.
MIROC® Production:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Threaded Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
