| Place of Origin: | China |
| Brand Name: | MIROC (KSQ) |
| Model Number: | Threaded Drill Extension Rod T45 - Round46 - T45 |
| Minimum Order Quantity: | Negotiated one |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 10 - 25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pcs per Month |
| Type Of Rod: | Extension Rod | Thread: | T45 |
|---|---|---|---|
| Model: | T45 - Round46 - T45 | Color: | Black Or Based On Request |
| Material: | Tungsten Carbide And High Strength Alloy Steel | Application: | Mining Operations, Bench Drilling And Long Hole Drilling, Drifting And Tunneling, Quarrying, Construction |
| Flushing Hole, Mm: | 17 | Diameter, Mm: | 46 |
| Wrench Flat, Mm: | 38 | ||
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||

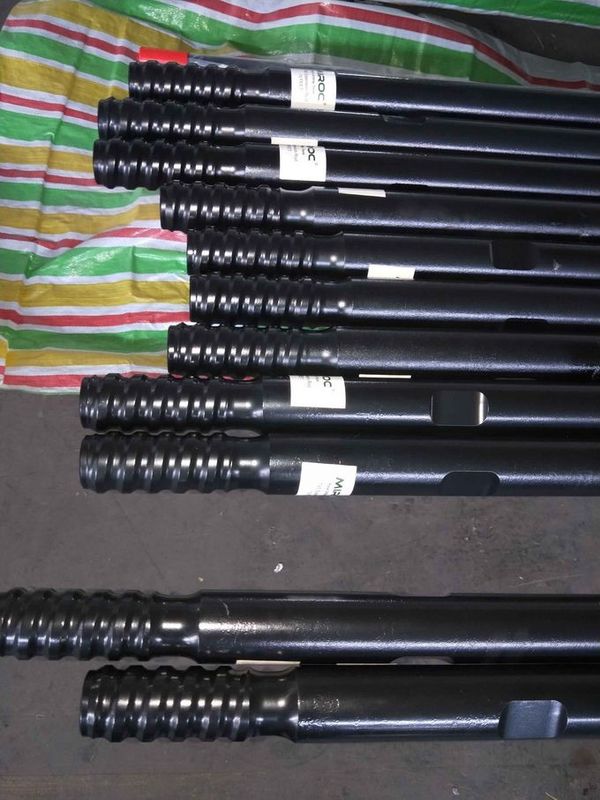

Extension Rod
T45 - Round46 - T45
Flushing Hole 17 mm; Wrench Flat 38 mm
Specifications:
| Drill Rod | Length | Diameter | Weight, kg | ||
| mm | Inch | mm | inch | ||
|
Extension Rod T45 - Round46 - T45 |
1830 | 6’ | 46 | 1 ¾ | 21.6 |
| 2435 | 8’ | 46 | 1 ¾ | 28.3 | |
| 3050 | 10’ | 46 | 1 ¾ | 35.2 | |
| 3660 | 12’ | 46 | 1 ¾ | 42.1 | |
| 4270 | 14’ | 46 | 1 ¾ | 48.9 | |
| 5530 | 18’ | 46 | 1 ¾ | 63.0 | |
| 6095 | 20’ | 46 | 1 ¾ | 69.3 | |
Drill rod using T45 thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling. Used in benching and long hole drilling.
Features:
1. High-grade raw material
2. Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Application:
• Underground Mining
• Drifting and Tunneling
• Benching and long hole drilling
• Quarrying
• On drilling machines equipped with automatic rod changer

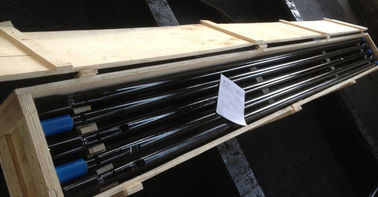

Package: Carton or Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-25 days.
P.S. We can design and manufacture products according to customers’ requirements.
MIROC® Production:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Threaded Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
