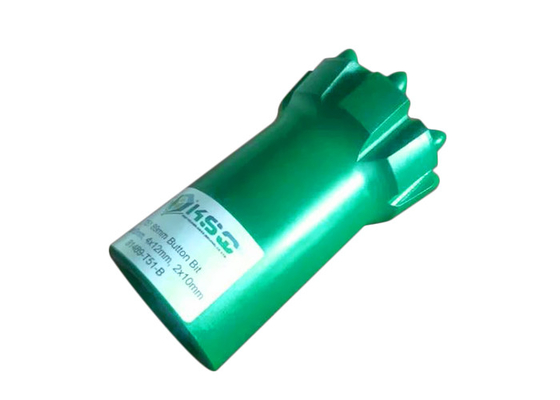

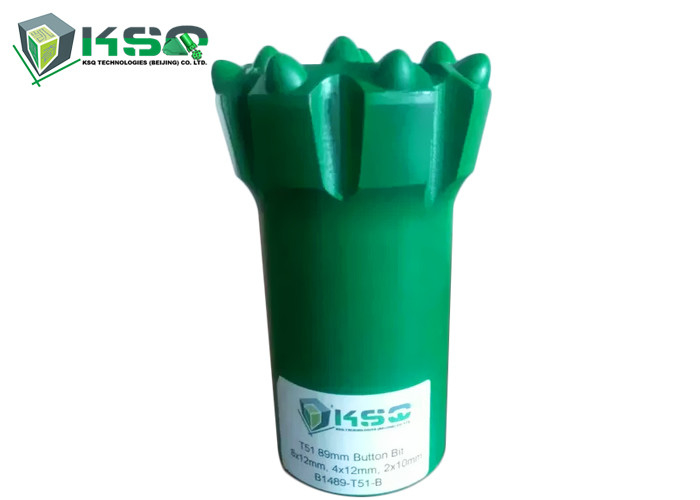

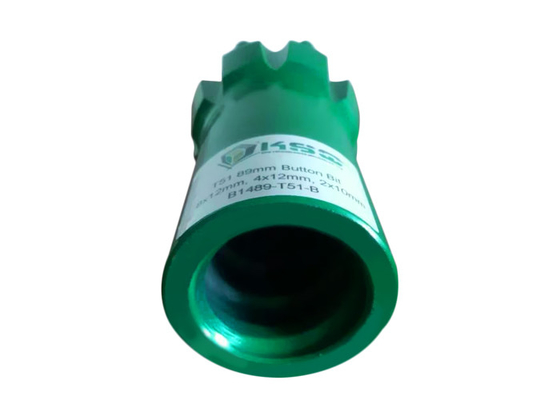

Name: T51 89mm 8X12 4X12 2X10 4 Holes Hard Rock Mining Drillin Bits Button Drill Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T51
Price: 150.00 USD
Availability: InStock

Home Products Button Drill Bit

T51 89mm 8X12 4X12 2X10 4 Holes Hard Rock Mining Drillin Bits Button Drill Bit

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	CE ,ISO
Model Number:	T51

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiated price
Packaging Details:	dth drill bits first be packed in polybag,then be packed in plastic box or wooden box
Delivery Time:	5-15 working day
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal
Supply Ability:	100 000pcs/month

Contact Now

Detailed Product Description

Machine:	T51	Bit Diameter:	89mm
Dia Inch:	3 1/2	Hole:	4 Holes
Material:	Carbon Steel	Rock Class:	Hard Rock And Medium Hard Rock
Highlight:	industrial drill bits , hardened steel drill bits

T51 89mm 8X12 4X12 2X10 4 Holes Hard Rock Mining Drillin Bits Button Drill Bit

Bit Diameter: 89mm/( 3 1/2 inch)

Flushing hole:4 hole

Buttons:14

Rock Class:Hard rock and medium hard rock

Button bit design:Flat face,Drop center

Length of drill rod:1525mm-6100mm (MM and MF)

Tungsten carbide (Buttons): Ballistic

Type	Thread Button Bit
Material	tungsten carbide
Use	Ore Mining, quarry,mining,blasting,construction,open bit etc.
Advantages	high quality and factory prices
Boby type	Normal type or retrac type
Thread	R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68
Tungsten carbide	Spherical, ballistic,Conical,Hemispherical
Fact type	Drop Center, Flat Face, Convex, Concave, etc
Color	According to your requirements

Diameter(D)		Flushing hole(MM)		Buttons(MM)		Degree	Grade
mm	in	Front	Side	Front	Side	Degree	Grade
89	3 1/2	2X12	2X7	6X12	8X14	35°	H
89	3 1/2	4X10	-	6X12	8X14	35°	M
89	3 1/2	2X11	2X8	6X12	8X14	35°	H
89	3 1/2	4x10	-	6x12	8x14	35°	M

We have different designs for various rock formations, longer service life to decrease use costs for users.

Thread Type	dia	tip size(mm)		flushing holes		weight (kg)
Thread Type	mm	gauge	front	side	front	weight (kg)
R22 R25 R28 SR28	41	5*9	2*8	2	1	0.6
	42	5*9	2*8	2	1	0.6
	43	5*9	2*9	2	1	0.6
	43	5*9	2*8	2	1	0.6
	45	5*9	2*9	2	1	0.7
	48	5*10	2*9	2	1	0.78
	51	5*11	2*10	2	1	1.1
	57	5*12	2*10	2	1	1.3
R32	41	4*9	2*8	1	1	0.54
	43	4*9	2*9	1	1	0.55
	45	4*10	2*9	1	1	0.6
T38	57	5*11	3*10	1	1	1.6
	64	5*12	3*11	1	1	1.6
	76	5*14	3*12	1	2	2.4
T45	70	6*11	4*10	0	2	2.4
	76	6*13	4*10	0	2	2.6
	89	8*12	5*12	2	2	4.5
	102	8*13	6*12	2	2	5
	115	8*14	6*13	2	2	6.8

T51 89mm 8X12 4X12 2X10 4 Holes Hard Rock Mining Drillin Bits Button Drill Bit 0
