Place of Origin: | China |
Brand Name: | MIROC |
Certification: | CE ,ISO |
Model Number: | T51 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiated price |
Packaging Details: | dth drill bits first be packed in polybag,then be packed in plastic box or wooden box |
Delivery Time: | 5-15 working day |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal |
Supply Ability: | 100 000pcs/month |
Machine: | T51 Retrac Button Bit | Bit Diameter: | 89mm |
---|---|---|---|
Dia Inch: | Concave Flat | Hole: | 4 Holes |
Material: | Carbon Steel | Use: | Ore Minging |
High Light: | mining drill bits,spherical drill bit |

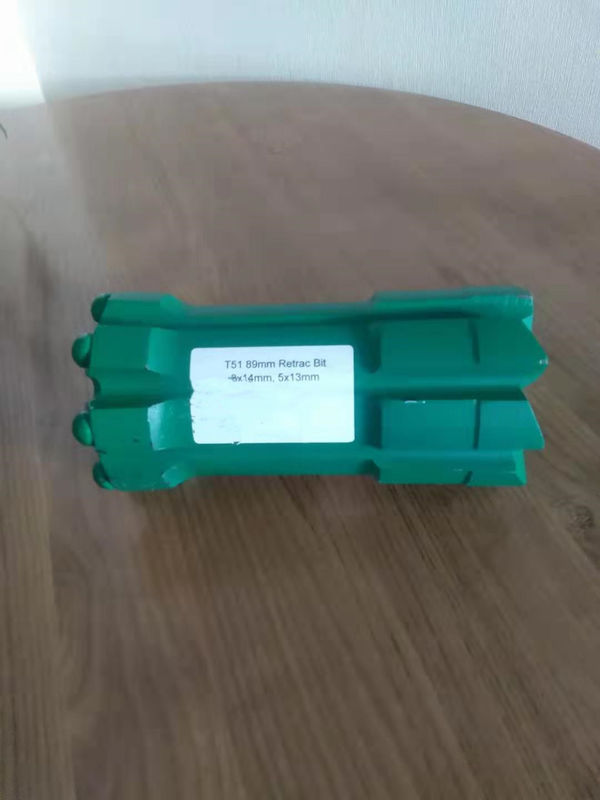

Rock drill spare parts T51 89mm retrac button bit 4 holes for Mineral drilling ore drilling quarry drilling
Bit Diameter: 89mm/( 3 1/2 inch)
Flushing hole:4 hole
Buttons:13
Rock Class:Hard rock and medium hard rock
Button bit design:Flat face,Drop center
Length of drill rod:1525mm-6100mm (MM and MF)
Tungsten carbide (Buttons): Ballistic
Button:8*14mm,5*13mm
T51 Button bits, retract skirt | |||||||
Diameter | T.C buttons | Flushing hole | Angle | Weight | |||
mm | inch | Gauge x mm | Front x mm | Side | Front | Gauge | Kg |
89 | 31/2 | 8x14 | 5x12 | 1 | 2 | 35° | 4.69 |
89 | 31/2 | 8x13 | 6x13 | 1 | 2 | 35° | 4.52 |
89 | 31/2 | 8x13 | 4x11,2x9 | 1 | 4 | 35° | 4.48 |
89 | 31/2 | 8x13 | 4x13,1x13 | 1 | 4 | 35° | 4.47 |
89 | 31/2 | 9x12 | 6x10 | 0 | 3 | 35° | 4.68 |
102 | 4 | 8x14 | 6x12 | 1 | 2 | 35° | 6.85 |
102 | 4 | 8x15 | 4x13,1x13 | 0 | 4 | 35° | 7.42 |
102 | 4 | 8x14 | 4x12,2x12 | 1 | 4 | 35° | 7.35 |
102 | 4 | 9x13 | 8x13 | 1 | 3 | 35° | 7.45 |
115 | 41/2 | 8x15 | 4x13,2x13 | 1 | 4 | 35° | 9.25 |
115 | 41/2 | 8x16 | 7x14 | 1 | 2 | 40° | 9.48 |
115 | 41/2 | 9x14 | 8x14 | 1 | 3 | 35° | 9.52 |
127 | 5 | 8x16 | 4x16,2x13 | 1 | 4 | 35° | 12.85 |
127 | 5 | 8x14 | 4x13,3x14 | 1 | 4 | 35° | 12.68 |
127 | 5 | 8x16 | 8x15 | 1 | 2 | 35° | 12.78 |
127 | 5 | 9x14 | 8x13 | 1 | 3 | 35° | 12.65 |
Product photos
