| Place of Origin: | China |
| Brand Name: | MIROC (KSQ) |
| Certification: | ISO 9001 |
| Model Number: | Dome Bit for Reaming T51 |
| Minimum Order Quantity: | Negotiated one |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Wooden Box |
| Delivery Time: | 10 - 25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 PCS Per Month |
| Type Of Bit: | Dome Bit For Reaming | Type Of Buttons: | Spherical And Ballistic |
|---|---|---|---|
| Thread: | T51 | Diameter, Mm: | 152 |
| Material: | Tungsten Carbide And High Strength Alloy Steel | Application: | Mining Operations, Bench Drilling And Long Hole Drilling, Drifting And Tunneling, Quarrying, Construction |
| Colors: | Green, Black, Yellow Or Based On Request | Flushing Holes: | Front And Side |
| High Light: | reamer drill bit,tungsten drill bits,cnc drill bits |
||

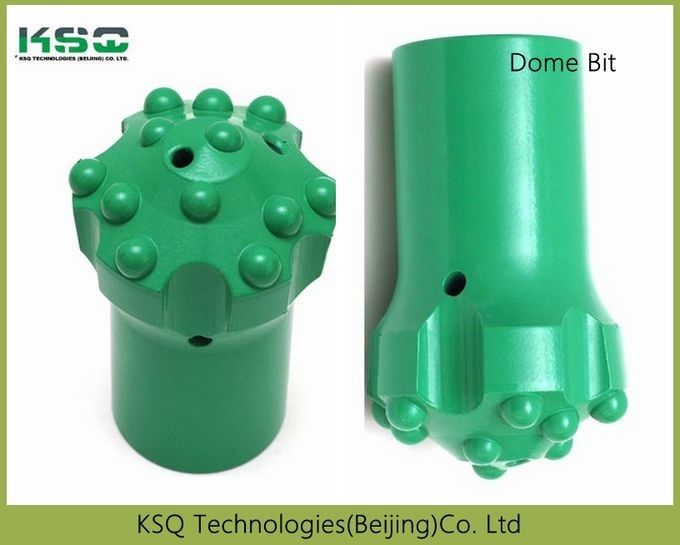

Dome Reaming Drill Bit T51 152mm Spherical / Ballistic 10.6kg For Drilling Tunneling
Dome Bit for Reaming T51
for Drilling and Tunneling
Specifications:
| Drill Bit | Diameter | No x Buttons Diameter | Flushing Holes | Weight, kg | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | ||
|
Dome Bit for Reaming T51 |
Spherical | |||||||
| 152 | 6 | 2 x 14 | 18 x 14 | 35 | 3 | 1 | 10.6 | |
| Ballistic | ||||||||
| 152 | 6 | 2 x 14 | 14 x 14 | 35 | 3 | 1 | 10.6 | |
This type of bit is used for making large cut holes in drifting and tunneling. Featuring spherical and ballistic tungsten carbide inserts that is known to have strong configuration against carbide fracture. Used in benching and long hole drilling.
Threaded Rock Drilling Tools T51
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions
Application:
1. Underground mining
2. Drifting anf Tunneling
3. In granite and marble quarry
4. Gold Mine
5. In benching and long hole drilling
Package: Wooden Box; also we can follow customers' requirements.
Delivery time is around 15-25 days.
