| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Thread Button Bit |
| Minimum Order Quantity: | 10 Pieces T38 Button Bit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Product: | T38 70-152mm Button Bit | Thread: | T38/T45 |
|---|---|---|---|
| Diameter: | 4 Inch | Material: | YK05 |
| Item: | Mining Drill Thread Button Bits | Aplication: | Mining And Quarry Drilling |
| High Light: | t38 button drill bit,heat treatment process button drill bit,cnc milling t38 drill bit |
||

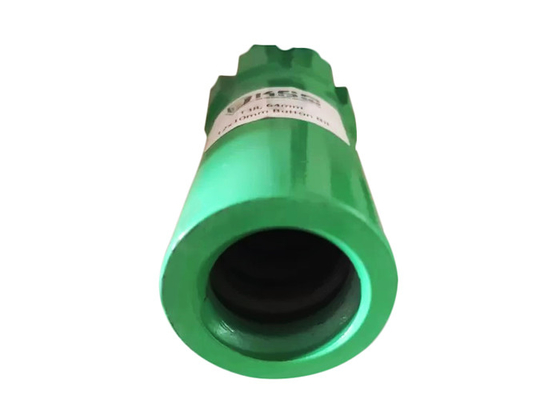

T38 CNC Milling Heat Treatment Process Button Drill Bit

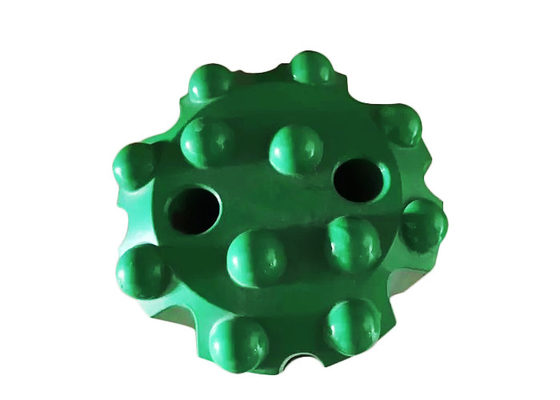

T38 102mm Flat face with Spherical Button Bit:
Product: T38 Button Bit
Diameter: 102mm / 4 Inch
Thread: T38
Face Design: Flat face
Button/Carbide Type: Spherical
Button Number and Diameter: Gauge 8x14mm, front 6x12mm
Flushing Holes: 2 front flushing holes and 2 side flushing holes
Prime Line: have prime line
Weight: 6.8kg per piece
Color: Green
Photo:
T38 102mm Flat face with Ballistic Button Bit:
Product: T38 Button Bit
Diameter: 102mm / 4 Inch
Thread: T38
Face Design: Flat face
Button/Carbide Type: Ballistic
Button Number and Diameter: Gauge 8x14mm, front 6x12mm
Flushing Holes: 2 front flushing holes and 2 side flushing holes
Prime Line: have prime line
Weight: 6.8kg per piece
Color: Green
Photo:
|
Type |
Thread Button Bit |
|
Material |
tungsten carbide |
|
Use |
Ore Mining, quarry,mining,blasting,construction,open bit etc. |
|
Advantages |
high quality and factory prices |
|
Boby type |
Normal type or retrac type |
|
Thread |
R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68 |
|
Tungsten carbide |
Spherical, ballistic,Conical,Hemispherical |
|
Fact type |
Drop Center, Flat Face, Convex, Concave, etc |
|
Color |
According to your requirements |
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
T38 Thread Button Bit Specification
|
T38/45 Thread Button Bit (FOR REFERANCE, more details, please contact with us) |
|||||
|
Diameter (mm) |
No. of buttons |
Buttons x button diameter |
Buttons angle ° |
Flushing hole |
Weight approx (kg) |
|
70 |
12 |
8x11, 4x11 |
40 |
-, 2 |
2.2 |
|
70 |
11 |
6x12.7, 5x10 |
35 |
1, 2 |
2.2 |
|
70 |
10 |
6x11, 3x11,1x9 |
35 |
-, 3 |
2 |
|
70 |
10 |
6x11, 3x11,1x9 |
35 |
-, 3 |
2.1 |
|
76 |
12 |
8x11, 4x11 |
40 |
-, 2 |
2.2 |
|
76 |
12 |
8x11, 4x11 |
40 |
-, 2 |
2.8 |
|
76 |
11 |
6x12.7, 5x11 |
35 |
2, 1 |
2.6 |
|
76 |
13 |
8x12.7, 5x11 |
35 |
1, 2 |
2.4 |
|
76 |
13 |
8x12.7, 5x11 |
35 |
1, 2 |
2.7 |
|
76 |
10 |
6x12.7, 3x11,1x11 |
35 |
1, 2 |
2.6 |
|
76 |
13 |
8x11, 4x11,1x11 |
35 |
1, 4 |
3.2 |
|
76 |
13 |
8x12.7, 4x11,1x11 |
35 |
-, 4 |
2.4 |
|
76 |
13 |
8x12.7, 4x11,1x11 |
35 |
-, 4 |
3 |
|
89 |
12 |
8x12.7, 4x12.7 |
40 |
-, 2 |
3.3 |
|
89 |
14 |
8x12.7, 6x11 |
35 |
1, 1 |
3.7 |
|
89 |
12 |
8x12.7, 4x12.7 |
40 |
-, 2 |
5 |
|
89 |
14 |
8x12.7, 6x12.7 |
35 |
1, 2 |
4.7 |
|
89 |
11 |
6x12.7, 3x11,2x11 |
35 |
1, 3 |
3.5 |
|
89 |
14 |
8x11, 4x11,2x9 |
35 |
1, 4 |
4.7 |
|
89 |
13 |
8x12.7, 4x11,1x11 |
35 |
-, 4 |
3 |
|
89 |
13 |
8x12.7, 4x11,1x11 |
35 |
-, 4 |
4.2 |
|
102 |
12 |
8x14.5, 4x14.5 |
40 |
-, 2 |
4.4 |
|
102 |
12 |
8x14.5, 4x14.5 |
40 |
-, 2 |
6.7 |
|
102 |
14 |
8x15.8, 6x12.7 |
35 |
1, 2 |
3.7 |
|
102 |
11 |
6x14.5, 3x12.7,2x12.7 |
35 |
1, 3 |
3.9 |
|
102 |
14 |
8x12.7, 4x12.7,2x12.7 |
35 |
1, 4 |
6.9 |
|
102 |
13 |
8x14.5, 4x12.7,1x12.7 |
35 |
-, 4 |
5.3 |
|
115 |
18 |
10x12.7, 8x12.7 |
35 |
-, 2 |
5.4 |
|
115 |
14 |
8x14.5, 4x12.7,2x12,7 |
35 |
1, 4 |
5 |
|
127 |
19 |
18x12.7, 1x12.7 |
35 |
1, 3 |
5.3 |
|
152 |
20 |
18x14.5, 2x14.5 |
35 |
1, 3 |
9.9 |
