T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit

T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit

T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit
T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit
T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Thread Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces T38 Button Bit
Price: Negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: T38 Button Bit Thread: T38
Diameter: 4 Inch 102mm Material: YK05
Colar: Green Button Type: Ballistic Sphericalsemi-spherical Conical
Button Dia: 8x14mm,7x12mm Body Type: Normal
Face Type: Drop Center
High Light:

chromium molybdenum steel button drill bit

,

high strength button drill bit

,

102mm drilling button bit

T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit



Processing
CNC milling and proprietary heat treatment process



Type

Thread Button Bit

Material

tungsten carbide

Use

Ore Mining, quarry,mining,blasting,construction,open bit etc.

Advantages

high quality and factory prices

Boby type

Normal type or retrac type

Thread

R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68

Tungsten carbide

Spherical, ballistic,Conical,Hemispherical

Fact type

Drop Center, Flat Face, Convex, Concave, etc

Color

According to your requirements



Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

High grade tungsten carbide inserts



Photo:

T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit 0



T38 Thread Button Bit Specification

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300705
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300706
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300707
70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300708
70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300709
70 2 3/4 3×10, 1×10 6×12 35° 3 - 1.8 4148300710
76 3    4×11 8×11 40° 2 - 2.4 4148300711
76 3    5×11 8×13 35° 2 1 2.4 4148300712
76 3    3×11, 1×11 6×12 35° 3 1 2.6 4148300713
76 3    4×11, 1×11 8×12 35° 4 - 2.6 4148300714
76 3    4×11, 1×11 8×11 40° 4 - 2.6 4148300715
89 3 1/2 4×13 8×13 40° 2 - 3.3 4148300716
89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300717
89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300718
89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300719
89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300720
89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300721
Ballistic
64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300722
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300723
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300724
70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300725
70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300726
76 3    4×11 8×11 40° 2 - 2.4 4148300727
76 3    5×11 8×13 35° 2 1 2.4 4148300728
76 3    3×11, 1×11 6×12 35° 3 1 2.6 4148300729
76 3    4×11, 1×11 8×12 35° 4 - 2.6 4148300730
76 3    4×11, 1×11 8×11 40° 4 - 2.6 4148300731
89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300732
89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300733
89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300734
89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300735
89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300736


We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac etc.).



Applications
R25, R28, R32, R38
Used in drifting and tunneling.

T38, T45, T51, ST58, ST68
Used in benching and long hole drilling.


Keywords
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools

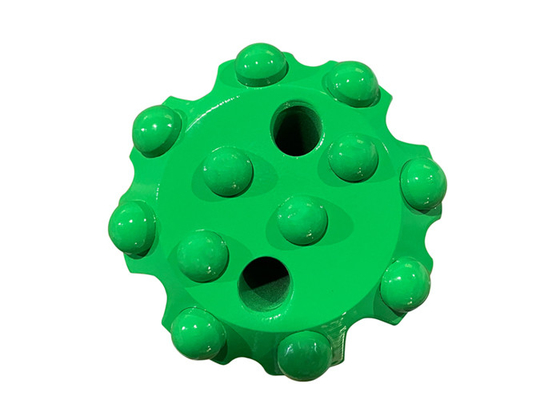

T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit 1T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit 2T38 102mm High Strength Chromium Molybdenum Steel Button Drill Bit 3
