Place of Origin: | China |
Brand Name: | MIROC (KSQ) |
Certification: | ISO |
Model Number: | High Air Pressure DTH Bit 6" |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Carton / Wooden Box or Based on Customer's request |
Delivery Time: | 10 - 20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20000 PCS Per Month |
Type Of Bit: | DTH Button Bit | Type Of Hammer: | DHD360 / Cop64 / DHD6 / Cop64G / QL60 |
---|---|---|---|
Size: | 6" | Number Of Air Holes: | 2 |
Bit Diameter, Mm: | 152 - 203 | Colors: | Black, Green, Blue, Yellow Or Based On Request |
Application: | Mining Operations, Bench Drilling And Long Hole Drilling, Drifting And Tunneling, Quarrying, Construction | Material: | Tungsten Carbide |
Approx. Weight, Kg: | 22.0 - 33.0 | ||
High Light: | carbide tipped drill bits,dth hammer bits |

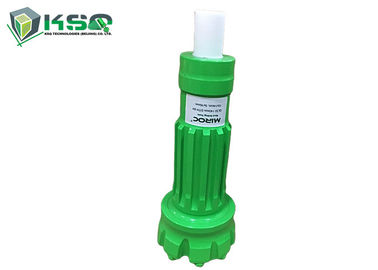

6" High Air Pressure DTH Button Bit
Description:
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Specifications:
Drill Bit | Bit Diameter, mm | No. Air Holes | Gauge Buttons | Front Buttons | Weight, kg |
DHD360 DHD6 Cop64 |
152 | 2 | 8x16 | 8x16 | 22.0 |
165 | 2 | 8x18 | 8x16 | 24.0 | |
178 | 2 | 8x18 | 8x16 | 26.0 | |
190 | 3 | 9x18 | 9x16 | 28.0 | |
203 | 2 | 10x18 | 10x16 | 29.5 |
Drill Bit | Bit Diameter, mm | No. Air Holes | Gauge Buttons | Front Buttons | Weight, kg |
Cop64 QL60 |
152 | 2 | 8x16 | 8x16 | 24.0 |
165 | 2 | 8x18 | 8x16 | 25.0 | |
178 | 2 | 8x18 | 8x16 | 27.0 | |
190 | 3 | 9x18 | 9x16 | 29.0 | |
203 | 2 | 10x18 | 10x16 | 33.0 |
Photos of the Bits before shipment:
Features:
1. High-grade tungsten carbide inserts
2. Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
FAQ:
Q: What methods of payment are accepted?
A: We work with T/T, L/C, AliBaba, Paypal, West Union, Money Gram.
Q: Can we select the color of the products?
A: Yes, sure. Either you can choose the color among our standards or we can make it exactly according to your requirements.
Q: Can we use our company's logo on your products?
A: Yes, we can be OEM Company for you.
Q: What's your delivery time?
A: It depends on the quantity of your order, but normally the manufacture time is around 10-20 days. And the delivery time depends on the way of shipment (by air/by sea). We always advice you the best way of delivery use the individual approach according to your requirements.
Q: What about the shipment?
A: It's based on the product type and the order quantity. We use carton or wooden box (also we can follow your reqirements) ans we can send it to you by Air or by Sea, either send the products to your Chinese agent.
Q: How to control the quality?
A: We always carefully check all the details before shipment, we are always online with you if any questions. Your satisfaction with our products is one of our main aims. We can send all the prooves if any questions.
Q: Do you offer sample order?
A: Yes, we welcome you to order some samples for testing our quality. For cheching the quality it's need only 1-2 samples to understand our really high quality and be sure in our production.
Q: Do you have after-sale service and warranty period?
A: Yes, of course. We offer our clients after-sale maintenance, technical support and warranty. If any questions or problems, please contact us asap and we will reply you within 24 hours.
Q: Do you have any social network to follow your updates?
A: We have:
Instagram: ksq_tech;
Twitter: @KsqCo - KSQ Technologies (Beijing) Co. Ltd.
Facebook: KSQ Technologies
YouTube: in the search box type KSQ Technologies and you will find some videos of our work.
P.S. Our company has been certificated by Chinese government, and verified by Alibaba Trade Assurance, 100% refund of the Trade Assurance Amount. Alibaba can guarantee all of your payment, you don't need to worry about it, everything is controlled by world corporations. We are fair with our customers and do our best to be reliable company for you!
DTH Bits Face Design:
Flat, Convex, Concave:
![]() |
Ballistic Concave Face Characteristics:
|
![]() |
Spherical Concave Face Characteristics:
|
![]() |
Ballistic Convex Face Characteristics:
|
![]() |
Spherical Flat Face Characteristics:
|
MIROC® Production:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Coupling Sleeves
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.
Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
