HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO

HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO

HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO
HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO
HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO
Product Details:
Place of Origin: China
Brand Name: MIROC Shank Adapter / Striking Bar
Certification: SGS ISO
Model Number: Shank Adapter (for Ingersoll Rand Rock Drill)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 20 days Production for standard shank adapter
Payment Terms: L/C, T/T
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: Mining Shank Adapter Model: Shank Adapter For Ingersoll Rand YH80A
Length: 500mm Thread: T45
Application: Rock Drilling, Mining, Quarry, Tunneling Projects Drifter: Ingersoll Rand
High Light:

drill bit shank adapter

,

threaded shank drill bit adapter

HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO







Ingersoll Rand YH 80A



Thread Part Number Length(mm) Diameter(mm) Weight(kg) Flushing Tube(mm)
R32 7803-7549-01 400 58.8 5.
R28 7809-7547-01 245 58.8 5.7
R32 7803-547-01 245 58.8 6.4



HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO 0



HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO 1



90516284, 90516300, 90516313



T45 diameter 51mm Shank adapter for Ingersollrand YH80A 500 mm Photo





HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO 2HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO 3







Shank Adapter for Ingersoll Rand Specification:

HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO 4

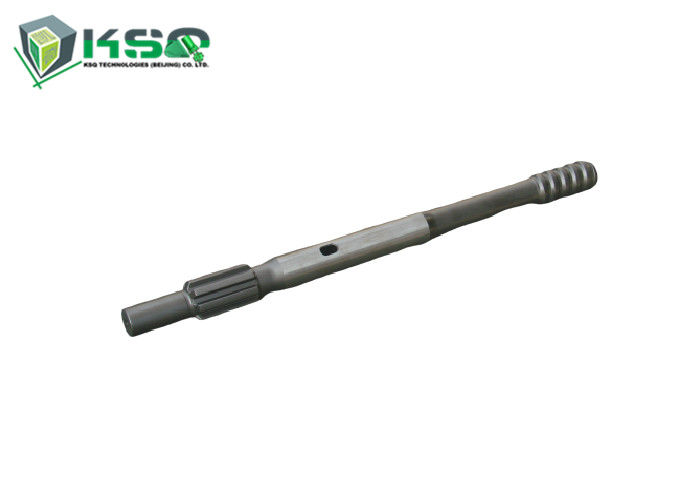

Shank Adapter



Manufactured from high-quality Alloy Steel and Heat Treated to give high values and fatigue strength.

The task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.



Male shank adapters/striking bar are generally better suited for drifting, tunneling & extension applications where high bending stresses are present.



Female shank adapters/striking bar are used when the drilling space is limited and the total feed length is important (i.e., underground roof bolting)



Shank Adapter for Following Ingersoll Rand Rock Drill Model



Rock Drill Manufacturer and Model
Ingersoll Rand 350
Ingersoll Rand Hydrastar 200
Ingersoll Rand VL 120, VL 140
Ingersoll Rand VL 120, VL 140
Ingersoll Rand EVL 130, VL 140
Ingersoll Rand YD 90 M
Ingersoll Rand YH 45, YH50, YH55
Ingersoll Rand YH 60A
Ingersoll Rand YH 65, YH70
Ingersoll Rand YH 65 RP
Ingersoll Rand YH 80A
Ingersoll Rand YH 80A RP



Shank Adapter Specification

SHANK ADAPTER
Rock Drill Manufacturer and Model Thread Diameter Length Flushing Weight Part Number
mm mm kg
Ingersoll Rand 350 R32 32 380 9.0 2.1 414832550
Ingersoll Rand Hydrastar 200 R32 45 351 - 3.7 414832551
Ingersoll Rand VL 120, VL 140 R32 44 381 14.3 3.4 414832552
R38 44 381 14.3 3.6 414832553
T38 44 381 14.3 3.7 414832554
T45 44 381 14.3 3.9 414832555
Ingersoll Rand VL 120, VL 140 T38 44 446 14.3 4.0 414832556
Ingersoll Rand EVL 130, VL 140 T38 44 350 14.3 3.9 414832557
T45 44 350 14.3 4.2 414832558
Ingersoll Rand YD 90 M R32 44 350 9.0 2.6 414832559
R32 38 350 12.7 2.5 414832560
Ingersoll Rand YH 45, YH50, YH55 T38 38 440 16 3.8 414832561
Ingersoll Rand YH 60A T45 38 530 14.3 6.1 414832562
Ingersoll Rand YH 65, YH70 T38 44 500 19.0 5.2 414832563
T45 45 500 19.0 5.5 414832564
Ingersoll Rand YH 65 RP T38 45 700 19.0 7.8 414832565
T45 45 700 19.0 7.9 414832566
Ingersoll Rand YH 80A T38 45 500 19.0 5.5 414832567
T45 51 500 19.0 5.7 414832568
T51 51 500 19.0 6.4 414832569
Ingersoll Rand YH 80A RP T45 51 700 19.0 8.8 414832570
T51 51 700 19.0 9.3 414832571



Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



Competitive Advantage

  • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
  • The accurate dimension of thread perfectly matches the rock drill
  • Work reliably and very cost-effective

Applications



• Bolting, drifting

• Bench drilling
• Production drilling

HL300 Mining Drill Shank Adapter R28 R32 500mm Length T45 Thread SGS / ISO 5


We can design and manufacture personalized products to meet your special application, such as changing the length, diameter, etc.
