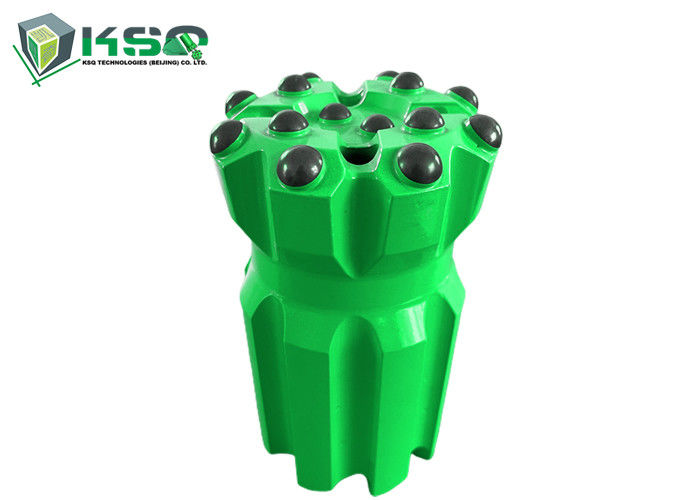

T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm

T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm

T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm
T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm
T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Retract Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: L/C, T/T
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Name: Retrac Button Bit Thread: T38, T45, T51
Diameter: 64mm, 76mm, 89mm, 102mm Skirt Type: Normal Retract Skirt, Heavy Duty Retract Skirt
Carbide Grade: YK05 Color: Gold, Green
Button Type: Ballistic Sphericalsemi-spherical Conical
High Light:

stone drilling bits

,

spherical drill bit

T51 Retrac Drop Center Ballistic button drill bit 64mm 76mm 89mm 102mm


Thread Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



Basic Information

Product Name Thread Rock Drill Bit
Thread R25,R28,R32,R38,T38,T45,T51,ST58, ST68
Diameter 32mm-152mm (or 1 1/4 inch to 6 inch)
Drill Bit Type Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit
Carbide Insert Spherical and ballistic
Body Design Normal body and retrac body
Face Design Flat face and drop center face
Material High strength alloy steel bar and tungsten carbide
Color Green, Gold, Black or based on customer requirements.

T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 0

Applications
R25, R28, R32, R38
Used in drifting and tunneling.

T38, T45, T51, ST58, ST68
Used in benching and long hole drilling.

Processing
CNC milling and proprietary heat treatment process


Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

High grade tungsten carbide inserts


We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac etc.).


Keywords
Button Bit, Rock Bit, Drill Bit, Rock Drill Bit, Thread Button Bit, Retrac Bit,
Dome Bit, Reaming Bit, Cross Bit, Chisel Bit, Rock Drilling Tools

T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 1



T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 2T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 3T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 4T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 5T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 6T45 Retrac Drop Center Ballistic Button Drill Bit 64mm 76mm 89mm 102mm 7
