| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO9001 |
| Model Number: | T45 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiated price |
| Packaging Details: | dth drill bits first be packed in polybag,then be packed in plastic box or wooden box |
| Delivery Time: | 5-15 working day |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100 000pcs/month |
| Thread: | T45 | Bit Diameter: | 76mm |
|---|---|---|---|
| Flushing Hole: | 4 | Button: | 5*11,8*11mm |
| Material: | Carbon Steel | Processing Type: | Forging,Metal |
| High Light: | stone drilling bits,mining drill bits |
||
Small Hole Rock Drill Bit Button Bits For Atlas Copco Drilling Rig Threaded drilling tools T45 76mm retrac button bits
Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock
| Product Name: | different rock hardness drilling button bit |
| Description: | For different rock hardness mining,tunneling,quarrying button bit Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment. |
| Material: | Alloy steel bar and tungsten carbide bit |
| MOQ: | trial order 1-5pcs |
| Body Type | Normal type and retract type |
| Thread type | R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
| Diameter | 32mm-152mm |
| Button bit shape | Spherical and Ballistic |
| Face shape | Flat shape and Drop-center shape |
Button bit and Insert types
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Applications of rock drilling tools
• Underground mining
• Tunneling,quarrying
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

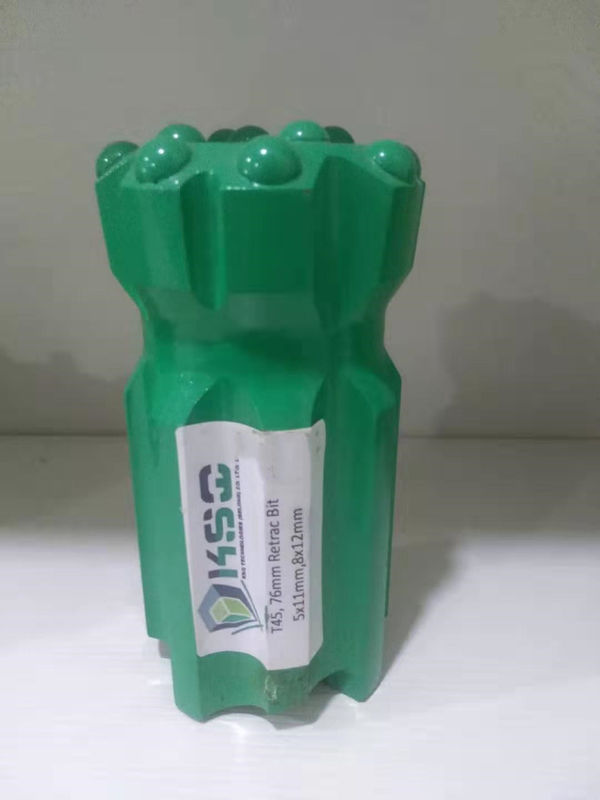

T45 76mm retrac photos
