TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling

TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling

TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling
TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling
TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC Shank Adapter / Striking Bar
Model Number: Shank Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece Shank Adapter
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: Furukawa HD300 Diameter: 38/45mm
Length: 645 Mm Thread: T38 And T45
Color: Black Drifter: EVERDIGM
High Light:

drill bit shank adapter

,

threaded shank drill bit adapter

Top Hammer Furukawa HD300 Shank Adapter 645mm For Bench Drilling



The shank adapter are manufactured from specially selected alloy steels followed by heat treatment through carburizing which withstands the high impact power of drilling.



Shank adaptors is to fit all types of Drilling Machines, both Pneumatic and Hydraulic. Shanks available with most types of popular international thread forms including: R25,R28,R32,T38,T45, T51 and GT60. Manufactured from high quality Alloy Steel and Heat Treated to give high values and fatgue strength.


- Atlas Copco (COP1238, COP1840, COP1638, COP1838, COP2150, COP2550, COP2160, COP2560)
- Furukawa (HD609, HD709, HD612, HD712)
- Sandvik (HL500, HL600, HL700, HL800, HL1000, HL1500, HLX5)
- Ingersoll Rand (YH65, YH70, YH80, YH60, YH135)
- Montabert (HC109, HC158, HC120, HC150, HC80)



Rock drill categories:
BE = bench drilling
BO = bolting
DS = dimensional stone drilling
PD = production drilling underground (long hole drilling)
TU = drifting and tunneling



Furukawa Shank Adapter Specification

Furukawa SHANK ADAPTER
Type Thread Diamter Length(mm) Flushing(mm) weight(kg)
Furukawa HD 90 R38 40 515 - 4.3
Furukawa HD 190 R38 40 500 - 4.5
T38 40 500 - 4.5
Furukawa HD 300 T38 45 654 16 6.0
T45 45 654 16 6.7
Furukawa HD 609 T38 45 690 - 6.3
T45 45 690 - 6.4
Furukawa HD 612 RP T45 51 884 - 11.2
Furukawa PD200 T38 45 485 14.3 5.0
T45 45 485 14.3 5.4

We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.



Competitive Advantage

  • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
  • Accurate dimension of thread perfectly matches the rock drill
  • Work reliable and very cost-effective

Shank Adapter​ Description

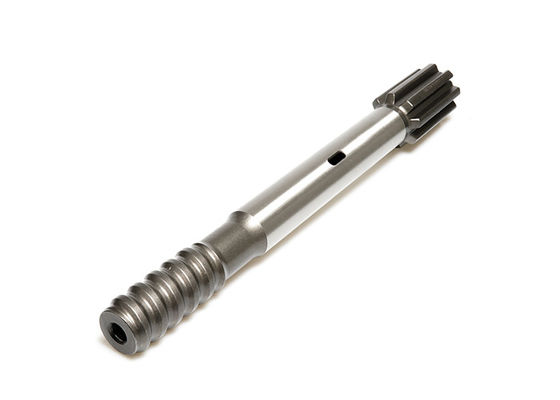

Shanks adapter Furukawa HD300

Thread: T38/T45

Length: 654mm

Diameter: 45mm

Weight: 6~6.7kg

Part number: 414832531 414832532

TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling 0

TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling 1

TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling 2



Package: plywood cose

TOP HAMMER Furukawa HD300 Shank Adapter 645mm For Bench Drilling 3
