| Place of Origin: | China |
| Brand Name: | KSQ MIROC |
| Certification: | ISO9001 |
| Model Number: | T45 Drill Button Bit |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton / Wooden Box or Customized |
| Delivery Time: | 10 - 20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 PCS Per Month |
| Product Type: | Drill Button Bits | Thread: | T45 |
|---|---|---|---|
| Diameter: | 76mm | Body Type: | Retrac Body |
| Tip Shape: | Spherical Or Ballistic | Material: | Tungsten Carbide, High Strength Alloy Steel |
| Colors: | Green Or Customized | Processing Type: | Forging |
| Application: | Mining Operations, Drifting And Tunneling, Quarrying, Construction | Formation: | Hard Formations |
| Connection: | T45 Drill Rod | ||
| High Light: | threaded rock drilling tools,tungsten carbide inserts rock drilling tools,t45 button bits rock drilling |
||

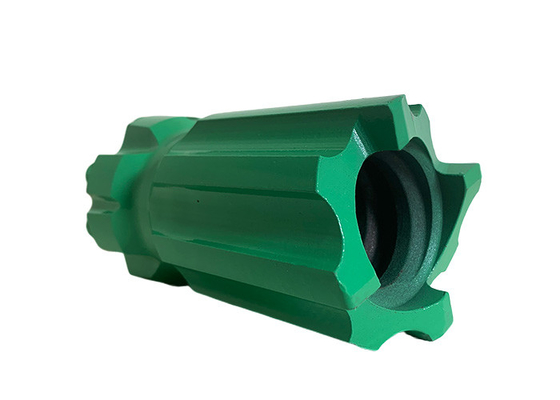

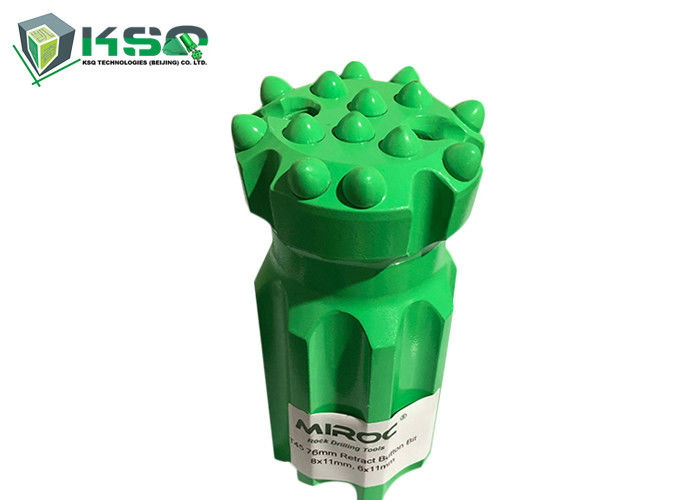

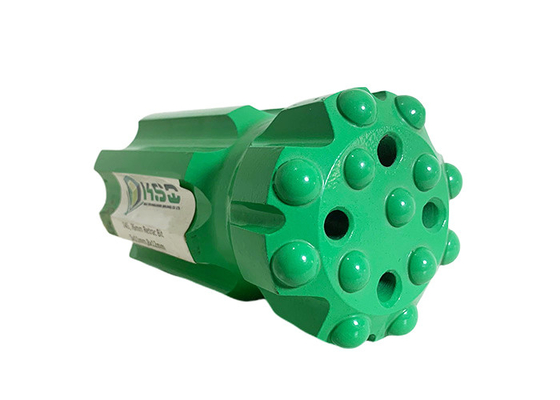

Threaded Tungsten Carbide Inserts Rock Drilling Tools T45 76mm Retrac Drill Bits
Our advantages:
1, Adopts superior raw material to produce;
2, Have rich manufacture experience and strict quality control system
3. Long service life
4. We supply standard size thread button bits and retract button bits.
5. We also supply customized button bits.
Product Description
|
Product Name |
different rock hardness drilling button bit |
||
|
Description |
For different rock hardness mining,tunneling,quarrying button bit |
||
|
Material |
Alloy steel bar and tungsten carbide bit |
||
|
MOQ |
trial order 5-10pcs |
||
|
Body Type |
Normal type and retract type |
||
|
Thread |
R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
||
|
Diameter |
32mm-152mm |
||
|
Button shape |
Spherical and Ballistic |
||
|
Face shape |
Flat shape and Drop-center shape |
||
Specification as below:
| Product Name | Bit Diameter | Carbide Button | Angle | Flushing Hole | Weight (kg) | |||
| (mm) | (inch) |
Front (No. x mm) |
Gauge (No. x mm) |
Front | Side | |||
| T45 Retrac Bit | 70 | 2 3/4 | 3x11, 1x9 | 6x11 | 35° | 3 | - | 2.5 |
| 70 | 2 3/4 | 4x10, 1x10 | 8x11 | 35° | 4 | - | 2.5 | |
| 76 | 3 | 4x11 | 8x11 | 40° | 2 | - | 3.2 | |
| 76 | 3 | 4x11 | 8x12 | 35° | 2 | 1 | 3.2 | |
| 76 | 3 | 3x11, 1x11 | 6x13 | 35° | 3 | 1 | 3.2 | |
| 76 | 3 | 4x11, 1x11 | 8x11 | 35° | 4 | - | 3.2 | |
| 76 | 3 | 4x11, 1x11 | 8x12 | 35° | 4 | - | 3.2 | |
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | - | 5.4 | |
| 89 | 3 1/2 | 6x11 | 8x12 | 35° | 2 | - | 5.4 | |
| 89 | 3 1/2 | 3x11, 2x11 | 8x13 | 35° | 3 | 1 | 5.4 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 35° | 4 | - | 5.4 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 35° | 4 | - | 5.4 | |
No MOQ for testing and trial order
Our Service:
Compared with the oversea brands, our advantages are bellowing:
1. Our products can match over 95% against the original products
2. Price are competitive against the famous brands and best quality against the small factory
3. Our factory has been specialized in manufacturing drilling tools and spare parts for about 10 years.
4. We have advanced technology and equipment.
5. Our technician has more than 20 year’s professional working experience.
6. Rock drilling tools are exported throughout the world. Main market: South America, South Africa, Russia, Middle East and etc.
Now we are looking forward to make the market bigger and stronger with your join!
KSQ Technologies Threaded Button Drill Bits are made by high quality alloy steel and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized threaded button drill bits according to any personal requirement and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Before Official Order, please confirm below information:
1. Thread
2. Normal or Retrac Body
3. Button shape - Spherical or Ballistic
4. Face shape - Drop Center, Flat Face, Convex, Concave, etc.
If have any other requirements, please, tell us without hesitation.
Application:
Package: Wooden Box; also we can follow customers' requirements.
Delivery time: around 10-20 days.
