Product Details:
Place of Origin: China
Brand Name: MIROC Top Hammer Rock Drilling Tools
Certification: ISO
Model Number: Speed Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month Thread MF- Rod
Contact Now
Detailed Product Description
Name: T Thread Speed Rod Type: Male - Female
Thread: R32 R38 T38 T45 T51 Diameter: 32 39 46 52mm
Length: 10FEET Application: Long Hole Drilling
High Light:

Threaded Drill Rod

,

Drill Rod Threaded

,

drill extension rod

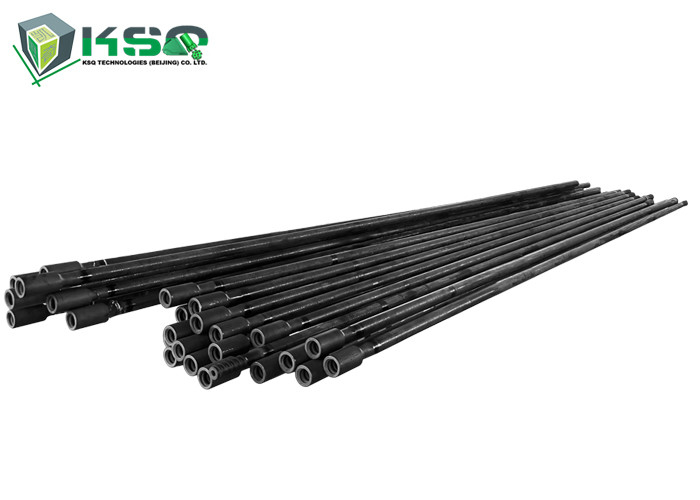

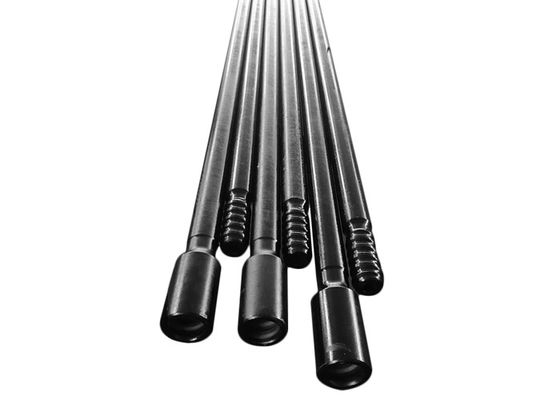

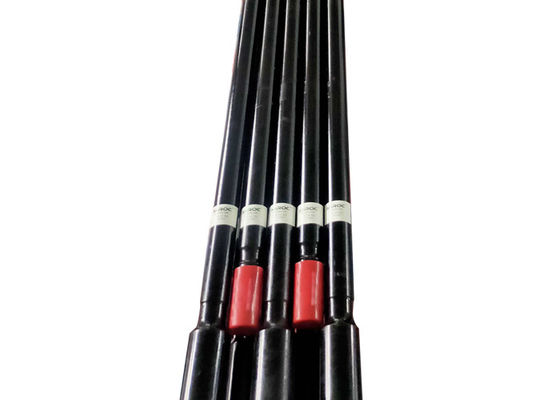

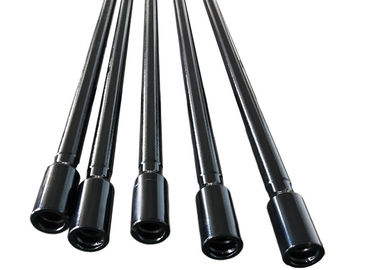

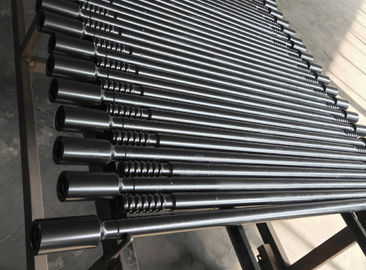

T38 T45 T51 Threaded Round MF Rod 10 Feet Long For Bench Drilling



M/F drill rod is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/F drill steel provides more rigid connections and is easier to uncouple and handle. The service life also tends to be better than with separate couplings. The advantages of drilling with M/F steel include: easy handling, quicker uncoupling, tighter connections, the potential to drill straighter holes, and longer service life.



For Extension Rod and M/F steel process, the below two different types of heat treatment are used to strengthen high speed and powerful percussive drill string components to maximize their performance and reliability. Longer steel larger in diameter, conventional extension steel, Hexagonal and round cross sections are available.
- Carburization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of the rod.
- High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen thread life.



MF RODS

MF-rod R32-Round32-R32, length 3, 4, 5, 6, 10, 12, 14 ft
MF Rod T38-Round39-T38, length 4, 5, 6, 10, 12, 14 ft
MF Rod T45-Round46-T45, length 5, 6, 10, 12, 14, 20 ft
MF Rod T51-Round52-T51, length 6, 12, 14, 20 ft
MF Rod ST58-Round60-ST58, length 12, 14, 20 ft
