| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | Exploration Drilling Tools |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10 - 20 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 3000pcs per month |
| Application: | Geological Exploration | Name: | PDC Drill Bit / Hard Rock Stone Drill Bit |
|---|---|---|---|
| Material: | Alloy Steel | Color: | Green, Blue, Golden, Orange Etc. |
| Processing Type: | Forging | Model: | T2 |
| High Light: | rock drill tools,tungsten carbide drill bits |
||
T6 core drill bit diamond and reaming shell for geotechnical
Description:
T6-101 Impregnated diamond bit
Double-tube diamond bit is more popular than single-tube in deep hole and ultra deep hole drilling.In the actual drilling operation, double-tube drill bit is often used with double-tube drill tool. The main advantage of double-tube drill tool is that it does not need to lift and dump the core frequently. The core can be put into the hole quickly through the lifting mechanism of the drill tool, and the process does not affect the normal drilling.
Dual-tube diamond bit is mainly used in geological exploration, oil and gas exploration and hydrology detection and so on.
Diamond-impregnated bit
1. High quality and best price
2. Huge stock and good service
3. Long service life
Main features:
1. Better resistance in most forms, especially in very hard rock forms
2. Abuse rough handling and improper use will cause less harm
3. Self-grinding due to matrix erosion and diamond
4. High quality synthetic diamonds are evenly distributed throughout the matrix
5. High efficiency cutting function continuously provides fresh, sharp diamonds
Specifications:
| Specification Parameters | |||
| SIZE | Core bit | Reaming Shell | |
| O.D MM | I.D MM | O.D MM | |
| T6-76 | 76.12/75.87 | 57.12/56.87 | 76.4 |
| T6-86 | 86.13/85.88 | 67.13/66.88 | 86.4 |
| T6-101 | 101.12/100.87 | 79.12/78.87 | 101.4 |
| T6-116 | 116.2/115.82 | 93.14/92.89 | 116.4 |
| T6-131 | 131.19/130.81 | 108.1/107.88 | 131.4 |
| T6-146 | 146.18/145.8 | 123.11/122.86 | 146.4 |
We supply A-Gauge impregnated core bit:AQ, AW, AGM;
B-Gauge impregnated diamond core bit: BQ, BQ3, BTW, BX, LTK60;
N-gauge impregnated core bit:NQ, NQ2, NQ3, NMLC, TNW;
H-gauge impregnated core bit:HQ, HQ3, HMLC, HTW, HWF;
P-gauge impregnated core drilling bit:PQ, PQ3;
TT46 T2-46, TT56, T2-56, T2-66, T2-76, T2-86, T2-101;
T6-76 impregnated diamond core bit, T6-86, T6-101, T6-116, T6-131, T6-146, etc.
Depending on the range of application as well as the cutting media on the core bits,
MIROC® Rock Drilling and Ground Support Tools include:
--Diamond bits and Reaming shell
--PDC bits and Casing shoes
--Drill rod and Drill tools in Q series
--Core barrel assembly and accessories.
--Diamond tools
Photos:

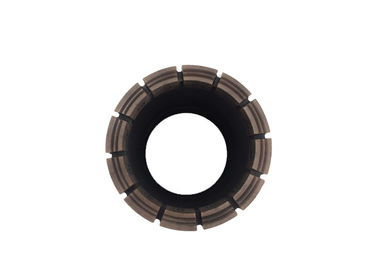

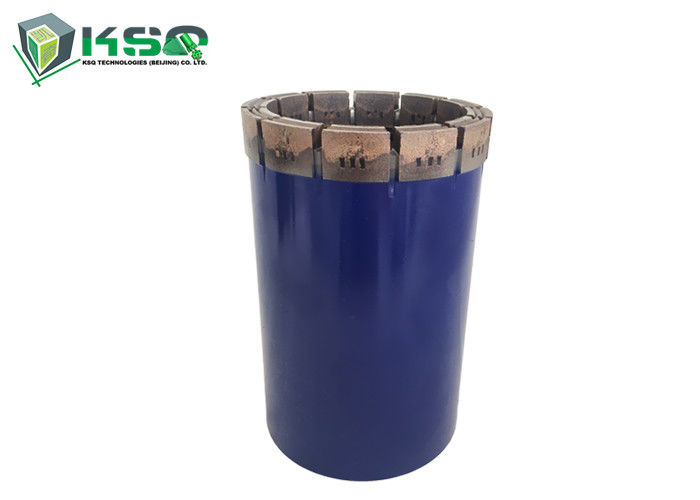

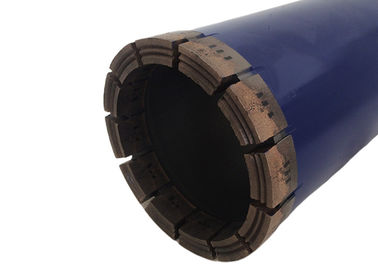

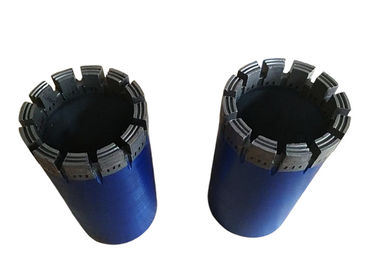

T6-101 Impregnated diamond bit
