| Place of Origin: | China |
| Brand Name: | MIROC DTH Rock Drilling Tools |
| Certification: | API |
| Model Number: | QL60 |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 20-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 pieces per month |
| Product Name: | DTH Button Bit | Series: | QL DTH Button Bit |
|---|---|---|---|
| Type: | QL60-203mm | Size: | 140-230mm |
| Use: | Tunneling, Mining,Quarrying,Water Well | Color: | Green, Yellow Or Customize |
| High Light: | carbide tipped drill bits,dth hammer bits |
||

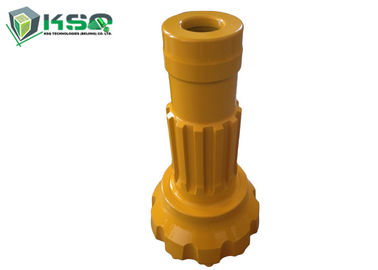

High Airpressure 203mm QL60 Hammer DTH Button Bits for Mining Water Well Drilling
Introduction:
Down The Hole button bit is are produced from premium quality nickel-alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special "stress relief" processes ensure consistent performance. DTH hammer bits are designed for maximum performance and hole cleaning ability and high penetration rate.
Our bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84, Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380 QL40, QL50 , QL60, QL80.NUMA100, NUMA120, MISSION60,ects
Other dth button bits:
| Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 1-3" Middle-low pressure DTH hammers | RD40 box | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min | ||
| BR1 | RD50 box | ¢64-¢76mm | 0.7-1.75Mpa | |||
| BR2 | API 2 3/8" Reg | ¢70-¢90mm | 0.7-1.75Mpa | 1.0Mpa | 4m3/min | |
| BR3 | ¢90-¢110mm | 1.4Mpa | 5m3/min | |||
| 3" hammers | DHD3.5 | API 2 3/8"Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 | ||||||
| M30 | 1.5Mpa | 9m3/min | ||||
| 4" hammers | DHD340 | API 2 3/8"Reg | ¢105-¢130mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 | ||||||
| QL40 | ||||||
| SD4 | 1.8Mpa | 10m3/min | ||||
| M40 | 2.4Mpa | 15m3/min | ||||
| 5" hammers | DHD350 | API 2 3/8"Reg/API 3 1/2"Reg | ¢130-¢156mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 | ||||||
| QL50 | ||||||
| SD5 | 1.8Mpa | 15m3/min | ||||
| M50 | 2.4Mpa | 23m3/min | ||||
| 6" hammers | DHD360 | API 3 1/2"Reg | ¢152-¢203mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 | ||||||
| QL60 | ||||||
| SD6 | 1.8Mpa | 20m3/min | ||||
| M60 | 2.4Mpa | 28.5m3/min | ||||
| 8" hammers | DHD380 | API 4 1/2"Reg | ¢200-¢279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 | ||||||
| QL80 | 1.8Mpa | 26m3/min | ||||
| SD8 | 2.4Mpa | 34m3/min | ||||
| 10" hammers | SD10 | API 6 5/8"Reg | ¢254-¢330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| NUMA100 | 1.8Mpa | 40m3/min | ||||
| 2.4Mpa | 55m3/min | |||||
| 12" hammers | DHD1120 | API 6 5/8"Reg | ¢305-¢381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | ||||||
| NUMA120 | 1.8Mpa | 56m3/min | ||||
| NUMA125 | 2.4Mpa | 78m3/min | ||||
Competitive Advantage
Pictures
Applications
• Underground mining
• Down the hole rock drilling
Bit Face Shape Selection:
Center Drop Face
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.
Maximum hole deviation control.
Concave Face
The all-around application bit face specifically for medium hard and homogenerous rock formations.
Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.
Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.
