| Place of Origin: | China |
| Brand Name: | ROXMECH |
| Model Number: | RL-1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | no package |
| Delivery Time: | 25-30 works days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 30 sets per month |
| Product Name: | 1 Cubic Meters Underground Mining Scoop | Rated Capacity: | 2000kg |
|---|---|---|---|
| Engine: | Detuz BF4L914 | Size(Length* Width* Height): | 5500*1395*1920mm |
| Name: | Load Haul Dump Machine | Model: | RL-1 |
| High Light: | underground lhd machines,lhd load haul dump |
||

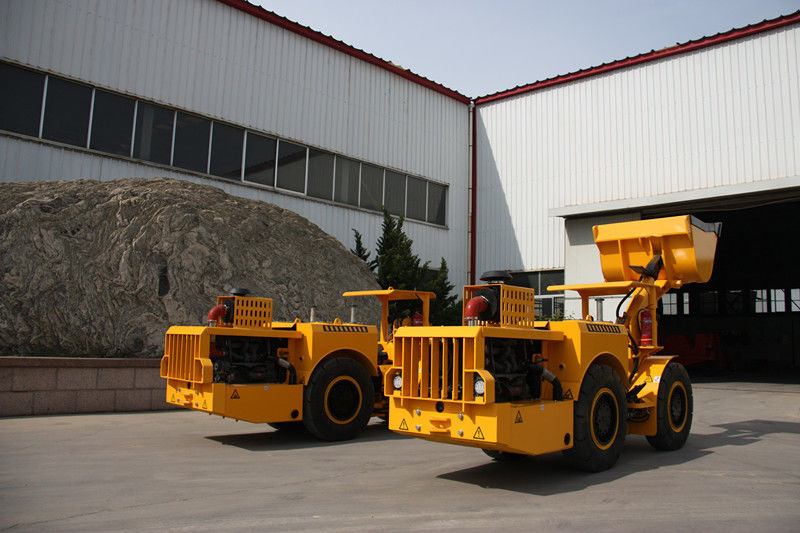

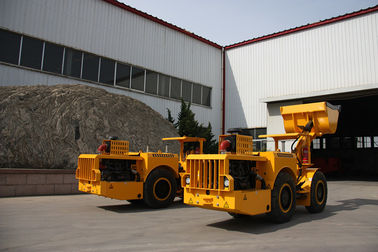

1.3 yard/ 1 m3 underground mining loader with Detuz engine BF4L914 66Kw
The loader is easy to operate and maintain, and it features an operator compartment that is located in the rear frame of the machine to ensure increased operator safety.
The RL-1 Loader is full of features to help mines maximize tonnes and minimize extraction costs. It has been engineered to optimize machine width, length and turning radius, enabling operation in narrower tunnels for less dilution and lower operational costs.
Technical specification
1. CAPACITIES:
Payload capacity 2000 kg
Standard bucket 1 m³
2. ENGINE:
Air-cooled DEUTZ BF4L914,66 kW/2300 rpm
G090225 Air filtration Donaldson Two-stage cleaner
with Catalytic purifier and silencer
3. TRANSMISSION:
SAUER variable pump and motor control the vehicle to move forward and backward, hydraulically operate the vehicle forward and backward, the entire vehicle is continuously variable
4-wheel drive
The walking pump is SAUER
4. AXLES:
Front axle FENYI,No-spin differential
Rear axle FENYI,
5. TIRES:
10.00—20 Glossy cut resistant engineering tire
6. SPEEDS:
0-10 km/h
7. BRAKES:
The service brake is hydraulic brake; the brake is located inside each wheel.
The parking brake is Caliper dis, Spring applied, hydraulic release (SAHR)
8. STEERING:
Hydraulically operated, center-point articulation, power steering with one double acting cylinder. Steering controlled by hydraulic or Mechanical joystick.
Frame articulation +/- 38°
9. FUEL TANK:
Capacity 60 L
10. HYDRAULIC SYSTEM:
Main valve Changjiang, China
Pump Gear pump, HeFei (Working pump is Chinese)
Hydraulic oil tank capacity 120 L
Return oil filtration 10 μm
Indication of level, filtration and temperature
Hose American standard
11. 24 VDC ELECTRICAL SYSTEM:
Alternator 35 A
Batteries 2*12V
12. DRIVER’S COMPARTMENT:
One person lateral operation
13. DIMENSIONS:
Length 5500±100 mm
Width 1395±50 mm
Height 1920±50 mm
Ground clearance as shown 195±20 mm
14. TURNING RADIUS:
Outer 4120±200 mm
Inner 2100±150 mm
15. WEIGHT:
Empty 6780kg
Fully loaded 8780 kg
16. BUCKET MOTION TIMES
Raising time 4.8 sec
Lowering time 3.3 sec
Dumping time 4.5 sec
