Service Vehicle RS-3 Single Arm Lift Underground Haul Truck For Mining And Tunneling

Service Vehicle RS-3 Single Arm Lift Underground Haul Truck For Mining And Tunneling

Service Vehicle RS-3 Single Arm Lift Underground Haul Truck For Mining And Tunneling
Service Vehicle RS-3 Single Arm Lift Underground Haul Truck For Mining And Tunneling
Service Vehicle RS-3 Single Arm Lift Underground Haul Truck For Mining And Tunneling
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Model Number: Underground Haul Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Container package
Delivery Time: 25-30 works days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Product Name: Underground Haul Truck Engine: Commins
Torque Converter: DANA Power Shift Transmission: DANA
Axle: DANA Service Type: For Crew/ Fuel/ Tire Transporter
Highlight:

Underground Dump Truck

,

mining dump trucks

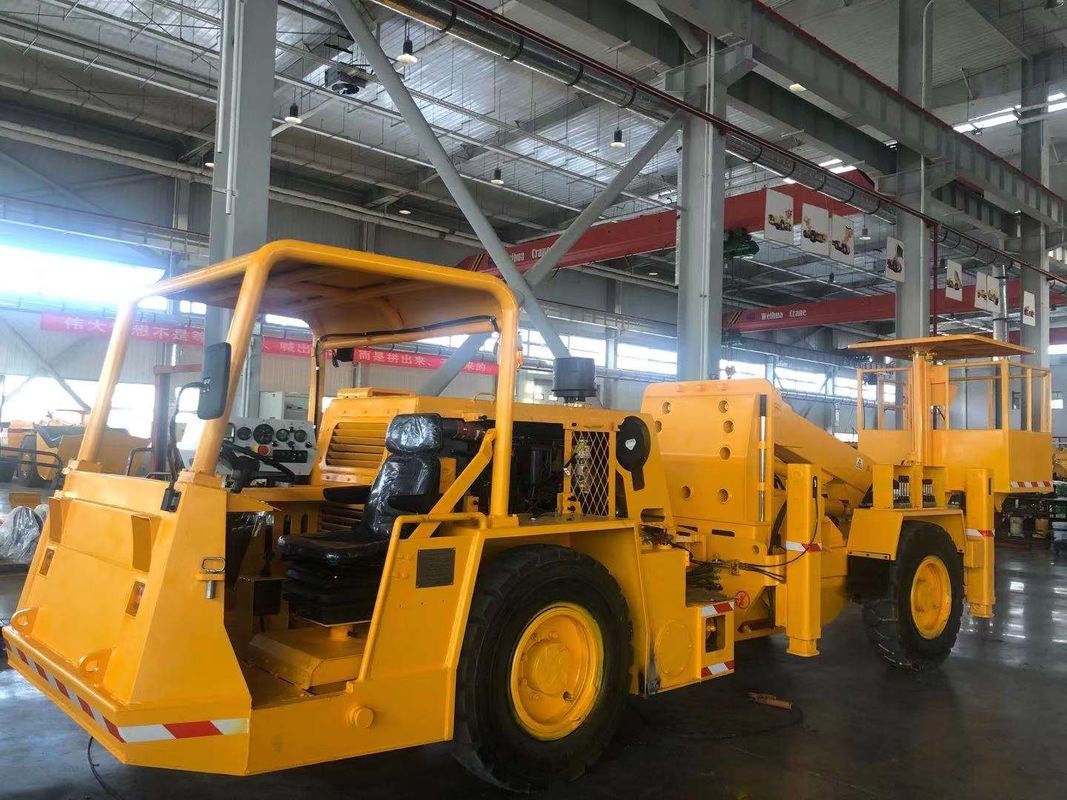

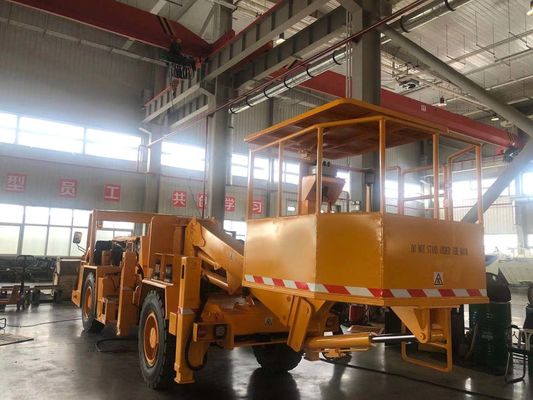

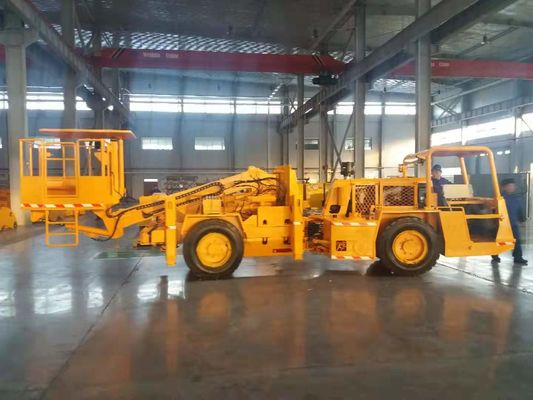

Service Vehicle RS-3 Single-Arm Lift Underground Haul Truck For Mining And Tunneling



The RS-3 Service Vehicle Series is a versatile chassis platform that can be configured for many support tasks for underground mining and tunneling. It can configured as: scissors lift truck, fuel and lube truck, crew transporter, ANFO charger truck, tire transporter and changer truck, etc.





Main Configuration:

No. Part Name Specification Note
1 Engine Commins, QSB4.5 97kW
2 Torque Converter 1201FT20321 DANA, USA
3 Axle F/R112 DANA, USA
4 Transmission shaft --- DANA, USA
5 Throttle controller --- Williams
6 Exhaust purifier 6DZ ECS
7 Tire 10.00-20 China
8 Double Gear Pump WP09D TUV, Germany
9 Prefill valve 06-463-*** MICO, USA
10 Foot valve 06-466-*** MICO, USA
11 Brake solenoid valve --- China
12 Accumulator 0.75L Germany
13 Pressure switch 24V-100bar Imported
14 Silencer SZJ-000-DOC Germany



Main Technical Parameters

Name Unit Data
Dimension Length mm 7790±100
Width mm 1800±50
Height mm 2400±50
Total weight kg 9500±300
Maximum traction kN ≥80
Minimum ground clearance mm ≥230
Grade ability (loaded) % 25
Steering angle (º) ±40
Horizontal swing angle (º) ±7～10
Tread mm 1520
Wheelbase mm 3410
Turning radius Inside mm ≤4000
Outside mm ≤6000
Maximum speed 1st gear km/h 4.5±0.45
2nd gear km/h 10±1
3rd gear km/h 22±2
Platform rated load kg 3000
Maximum lifting height mm 5400
Platform size Length mm 1400
Width mm 1350
Height mm 1080

Service Vehicle RS-3 Single Arm Lift Underground Haul Truck For Mining And Tunneling 0
