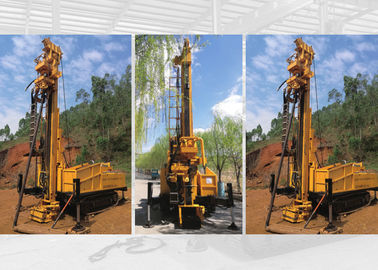

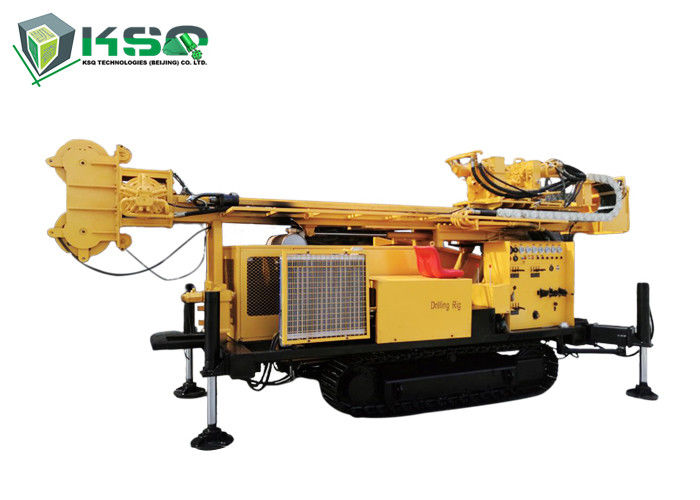

600m Fully Hydraulic Water Well Drilling Rig Crawler Mounted Core Drilling Rig

600m Fully Hydraulic Water Well Drilling Rig Crawler Mounted Core Drilling Rig

    • 600m Fully Hydraulic Water Well Drilling Rig Crawler Mounted Core Drilling Rig
    • 600m Fully Hydraulic Water Well Drilling Rig Crawler Mounted Core Drilling Rig
  • 600m Fully Hydraulic Water Well Drilling Rig Crawler Mounted Core Drilling Rig

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Model Number: JKDR-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: no package
    Delivery Time: 25-30 works days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Fully Hydraulic Water Well Drilling Rig Engine: Cummins
    Core Drilling Capacity: BQ 600m Hole Diameter: 200-400mm
    Depth: 100-200m Type: Fully Hydraulic
    Condition: New Machine Type: Drilling Equipment
    High Light:

    dth drilling rig

    ,

    hydraulic water well drilling rig

    600m Fully Hydraulic Water Well Drilling Rig Crawer Mounted Core Drilling Rig



    JKDR-1 Hydraulic core drill rig is based on the normal mud circulation core drilling and water well drilling to research and development new core drill of high efficiency, muti-function, the drill rig is with unique double power head, can have the air drilling and mud drilling process method for core drilling, can have three function of core, wells and blasting, is widely used in wells and mining industry.



    Main Technical Features



    • Crawler drill rig which can be equipped with self-loading vehicle system with high supporting legs, making the transfer field light and flexible, select the heavy truck
    • Equipped with efficient and powerful Cummins engine system
    • Operation of walking seat, centralized control of operation platform, emergency stop button at the four corners of the drill, walking safety warning light and emergency fire extinguisher ensure the safety of operation
    • Adopt multi-pump combined hydraulic system, with reasonable power distribution. Rotary and push stepless speed regulation multi-speed hydraulic control, suitable for different processes of core, well and blast hole
    • Cylinder propulsion, folding and lengthening slide frame structure, 3-meter stroke, three drill pipe lifting, improving efficiency, easy maintenance
    • Hydraulic double power head, high and low speed separate control, not only is conducive to diamond bit drilling and alloy bit drilling, but also drilling wells and blasting holes, running at high speed smooth, low speed large torque rotation, formation adaptability is better. RC reverse circulation and DD mud drilling conversion are convenient and flexible.
    • Equipped with main and secondary winch for drilling pipe hoisting and rope core lift.
    • Unique movable hydraulic shackle chuck can complete the connection and unloading of drill pipe at any position.
    • Four-hydraulic leg is equipped with hydraulic leg locking and mechanical double locking mechanism, which makes long-term drilling operation more stable and ensures drilling accuracy
    • The hydraulic system is equipped with an independent air-cooled hydraulic oil radiator, which can be optionally equipped with water-cooled radiator to ensure the continuous operation of drilling RIGS in high temperature climate conditions, and the hydraulic system works efficiently
    • Equipped with simple and efficient rock powder collection device
    • Quick-connect hydraulic mud mixing device





    Specification



      Model JKDR-1 Full Hydraulic drill rig
    Diesel Engine Model Cummins 6BTA5.9-C180
    Power 150kW
    Speed 220rpm
    Core Drilling capacity BQ 600m
    NQ 500m
    HQ 300m
    Well drilling ability Hole diameter 200-400mm
    Depth 200-100m
    Blast hole ability Hole diameter 100-200mm
    Depth 30-15m
    Rotator Capacity RPM Three shift /changeable stepless 0-900rpm
    Max. Torque 4500N.m
    Hole diameter 114mm
    Max. Lifting capacity of spindle 120kN
    Max. Feeding Power 120kN
    Capacity of main hoist Hoisting Force (single wire) 150kN
    Steel wire diameter 16mm
    Steel wire length 30m
    Capacity of Steel wire hoist Hoisting Force (single wire) 11kN
    Steel wire diameter 5mm
    Steel wire length 600m
    Mast Mast Height 11m
    Mast adjusting angle 0°- 90°
    Drilling Angle 45°- 90°
    Feeding stroke 3000mm
    Other Weight 6500kg
    Dimension(LxWxH)

    Main equipment

    5200*1600*2500mm

    Transport way crawler
    Mud pump Model BW-150








    Our comapny



    KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.

    KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.

    Our portfolio includes:

    Consumables used in the mining and construction industries
    Equipment used in the mining and construction industries
    Spare parts used for the equipment we sell for the mining and construction industries


    600m Fully Hydraulic Water Well Drilling Rig Crawler Mounted Core Drilling Rig 0
