Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer

Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer

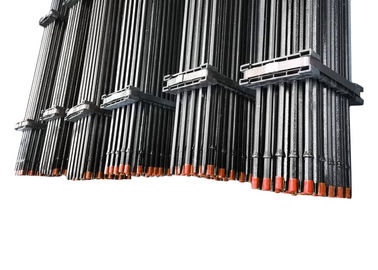

Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer

Large Image :  Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer

Product Details:

Place of Origin: China
Brand Name: Mirco
Model Number: 7/11/12 degrees tapered drill steel rod

Payment & Shipping Terms:

Minimum Order Quantity: negociated one
Price: negociated one
Packaging Details: wooden box or plastic box
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Product Name: 7/11/12 Degrees Tapered Drill Steel Rod Type: Drill Rods
Machine Type: Drilling Tool Material: 55simnmo
Processing Type: Forging Use: Rock Drilling/Water Well Mining
Length: 500~8000mm
High Light:

Forging Tapered Drill Rod

,

Hammer Tapered Drill Rod

Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer



Tapered Drill Steel rod

The tapered drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions. Generally, the lightduty rock drill uses 7° taper or smaller taper angle, the heavyduty rock drill mainly uses 12 taper angle.



The tapered drill rods are used for Penumatic rock drill and Hydraulic rock drill.Medium hard to hard and abrasive rock formations. Such as Y24, Y26, YT24, YT27, YT28, YT29 and YN27C rock drill.



Rod Length:500~8000mm

Shank length: 22*108mm,25*108mm

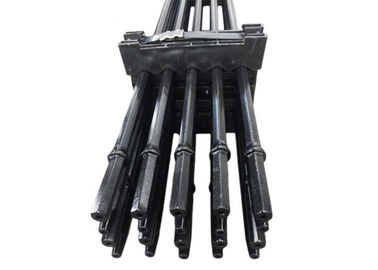

Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer 0



Specification



7 degrees tapered drill rod - H22x108mm shank

Part Number Product Code and Brief Description Length (mm) Length (ft/inch) Weight (kg)
4148300179 H22-7D-600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 600 2 1.93
4148300180 H22-7D-800, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 800 2 5/8 2.54
4148300181 H22-7D-1000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1000 3 2/7 3.15
4148300182 H22-7D-1200, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1200 4 3.76
4148300183 H22-7D-1500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1500 5 4.68
4148300184 H22-7D-1600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1600 5 1/4 4.98
4148300185 H22-7D-1800, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 1800 6 5.59
4148300186 H22-7D-2000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2000 6 5/9 6.2
4148300187 H22-7D-2200, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2200 7 2/9 6.81
4148300188 H22-7D-2300, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2300 7 5/9 7.12
4148300189 H22-7D-2400, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2400 7 7/8 7.42
4148300190 H22-7D-2500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2500 8 1/5 7.73
4148300191 H22-7D-2600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 2600 8 1/2 8.03
4148300192 H22-7D-3000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 3000 9 5/6 9.25
4148300193 H22-7D-3500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 3500 11 1/2 10.78
4148300194 H22-7D-4000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 4000 13 1/8 12.3
4148300195 H22-7D-4500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 4500 14 3/4 13.83
4148300196 H22-7D-5000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 5000 16 2/5 15.35
4148300197 H22-7D-5500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 5500 18 16.88
4148300198 H22-7D-6000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm 6000 19 2/3 18.3



11 degrees tapered drill rod - H22x108mm shank



Part Number Product Code and Brief Description Length (mm) Length (ft/inch)

Weight

(kg)

4148300241

H22-11D-610, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

610 2 2.2
4148300242

H22-11D-1220, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1220 4 4.1
4148300243

H22-11D-1830, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1830 6 5.9
4148300244

H22-11D-2000, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2000 6 5/9 6.4
4148300245

H22-11D-2435, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2435 8 7.8
4148300246

H22-11D-2600, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2600 8 1/2 8.3
4148300247

H22-11D-3200, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

3200 10 1/2 10.1
4148300248

H22-11D-3655, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

3655 12 11.5
4148300249

H22-11D-4000, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

4000 13 1/8 12.6
4148300250

H22-11D-4800, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

4800 15 3/4 14.9
4148300251

H22-11D-5600, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

5600 18 3/8 17.4
4148300252

H22-11D-6400, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

6400 21 19.8
4148300253

H22-11D-7200, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

7200 23 5/8 22.2
4148300254

H22-11D-8000, 11° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

8000 26 1/4 24.6





About us

MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.

KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.


MIROC® Rock Drilling and Ground Support Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers

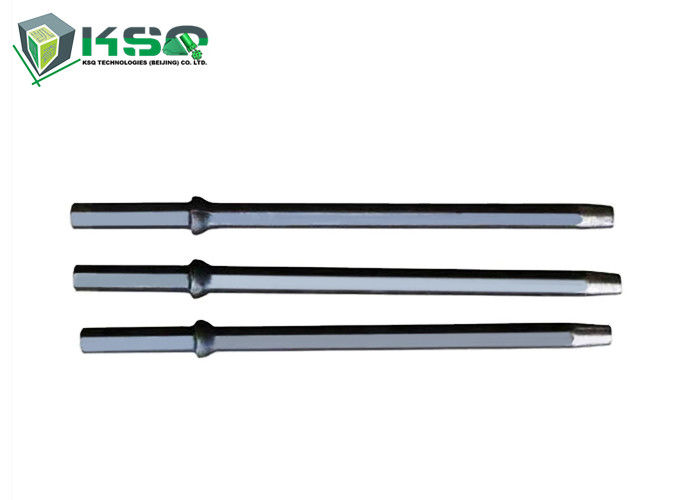

Small Hole Drillig Tools 7/11/12 Degrees Taper Drill Steel Rod For Jack Hammer 1
