| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | DTH Button Bit |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Name: | 8 Inch Drill Bit | Type: | High Pressure Bits |
|---|---|---|---|
| Application: | Water Well Drilling | Advantage: | More Reliable , Good Sealability |
| Diameter: | 203mm~245mm | ||
| High Light: | 254mm DTH Drill Bits,High Pressure DTH Drill Bits,DTH Water Well Drill Bits |
||
SD8 254mm DTH Drill Bit High Pressure Bits In Overburden And Water Well Drilling Project
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Basic Information
|
Product |
DTH Button Bits |
| Low Air Pressure | CIR80, CIR90 |
|
3’’ |
DHD3.5, M30, |
|
4’’ |
DHD340, SD4,QL40, M40 |
|
5’’ |
DHD350, SD5,QL50, M50 |
|
6’’ |
DHD360, SD6,QL60, M60 |
|
8’’ |
DHD380, SD8,QL80, M80 |
|
Color |
Green, Gold, Black or based on customer requirements. |
|
MOQ: |
No MOQ required for testing and trial order |
Applications
• water well drilling
• Down the hole rock drilling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Technical Parameter of bits assorted
| SD8 Spherical button/Concave face button bit | |||||||
| 200 | 7 7/8 | 6×18,6×18 | 9×18 | 3 | 41 | 4148301487 | |
| 203 | 8 | 6×18,6×18 | 9×18 | 3 | 42 | 4148301488 | |
| 216 | 8 1/2 | 6×18,8×18 | 9×18 | 3 | 53.6 | 4148301489 | |
| 219 | 8 5/8 | 6×18,9×18 | 9×18 | 3 | 54 | 4148301490 | |
| 222 | 8 3/4 | 3×18,5×18 | 12×18,6×18 | 3 | 56 | 4148301491 | |
| 226 | 8 7/8 | 3×18,5×18 | 12×18,6×18 | 3 | 57 | 4148301492 | |
| 229 | 9 | 3×18,5×18 | 12×18,6×18 | 3 | 58 | 4148301493 | |
| 241 | 9 1/2 | 3×18,6×18 | 12×18,6×18 | 3 | 63 | 4148301494 | |
| 251 | 9 7/8 | 3×18,7×18 | 12×18,6×18 | 3 | 64 | 4148301495 | |
| 254 | 10 | 3×18,7×18 | 12×18,6×18 | 3 | 67 | 4148301496 | |
| 270 | 10 5/8 | 3×18,8×18 | 12×18,6×18 | 3 | 72 | 4148301497 | |
| 305 | 12 | 6×18,8×18 | 12×18,9×18 | 3 | 94 | 4148301498 | |
| SD8 Ballistic button/Convex face button bit | |||||||
| 203 | 8 | 6×18,7×18 | 9×18 | 3 | 42 | 4148301499 | |
| 216 | 8 1/2 | 6×18,8×18 | 9×18 | 3 | 53.6 | 4148301500 | |
| 222 | 8 3/4 | 6×18,8×18 | 12×18 | 3 | 54 | 4148301501 | |
| SD8 Spherical button/Flat face button bit | |||||||
| 203 | 8 | 9×18 | 9×18 | 3 | 42 | 4148301502 | |
| 216 | 8 1/2 | 12×18 | 9×18 | 3 | 53.6 | 4148301503 | |
| 222 | 8 3/4 | 13×18 | 12×18 | 3 | 54 | 4148301504 | |
| 229 | 9 | 14×18 | 12×18 | 3 | 58 | 4148301505 | |
| 241 | 9 1/2 | 14×18 | 12×18 | 3 | 63 | 4148301506 | |
| 251 | 10 | 14x18 | 13x18 | 3 | 67 | 4148301507 | |
| 270 | 10 5/8 | 14x189 | 13x18 | 3 | 72 | 4148301508 | |
| 305 | 12 | 14x19 | 14x19 | 3 | 94 | 4148301509 | |
We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

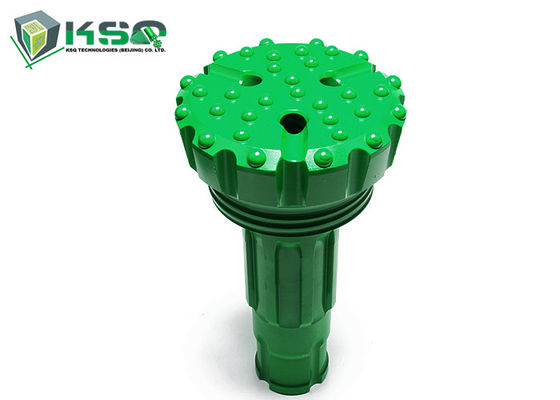

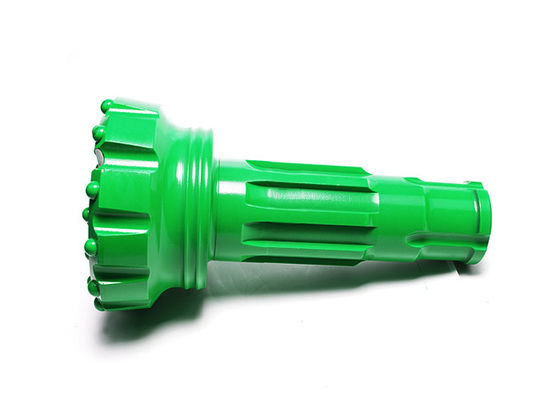

Photos
Tags: 8 inch Button Bit, SD8 DTH BIT, SD8 Hammer
