API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: API
Model Number: Upper / Lower kelly valves
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: 1000
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 units per months
Contact Now
Detailed Product Description
Diameter: 111/121/146/165/184/197 Work Pressure: 5,000 / 10,000 / 15,000 PSI
Use: Oil Drilling Thread: NC 38
Material: 40CrMnMo
High Light:

OD 146mm kelly valves drilling

,

Upper kelly valves drilling

,

Lower kelly valves drilling

NC38 Inside blowout control tools 3~3/8" Upper / Lower kelly valves

Product information
Kelly cock valve is a manual control valve in the drill string circulation system and is one of the effective tools to prevent blowout; it is upper Kelly valve and lower Kelly valve which is assembled the upper end and lower end of drill pipe.

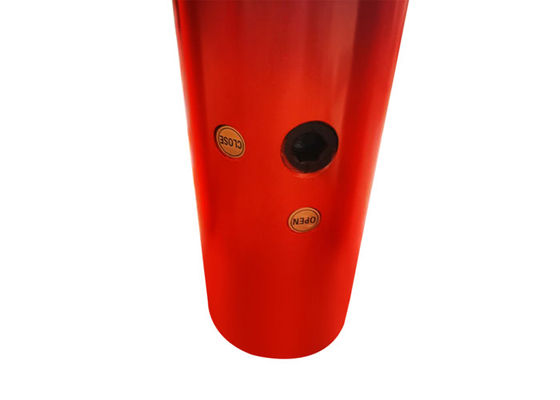

The kelly valve can be opened on or closed off by the specoal operating spanner at 90 degrees according to the indicatong dorection.


Specifications -

Name
Model O.D. I.D. Connection WP
mm(inch) mm(inch) API

35MPa

70MPa

105MPa

Upper Kelly Valve XS197 197(7-3/4) 76.2(3) 6-5/8REG LH
XS146 146(5-3/4) 44.4(1-3/4) 4-1/2REG LH
Lower Kelly Valve XS111 111(4-3/8) 38(1-37/64) NC31
XS121 121(4-3/4) 44.4(1-3/4) NC38
XS146 146(5-3/4)
XS165 165(6-1/2) 71.4(2-13/16) NC50
XS178 178(7) NC50
XS184 184(7-1/4) 5-1/2FH



The kelly valve has simple structure, convenient operation and reliable use. It has become an important part of the blowout prevention system in the drilling string and is widely used in the field.

There are three main failure modes of the kelly plug valve:
①The strength failure is mainly caused by the early fatigue fracture of the valve body. The reason for the strength failure is the unreasonable structure size, poor material, and improper heat treatment;

②The ball of the valve fails to rotate. This is because the frictional torque between the ball and the valve seat is too large, severely rusted, the valve seat is plastically deformed and the sealing surface is stuck with solid particles. The root cause of the rotation failure is the gap between the ball and the valve seat. Caused by excessive friction;

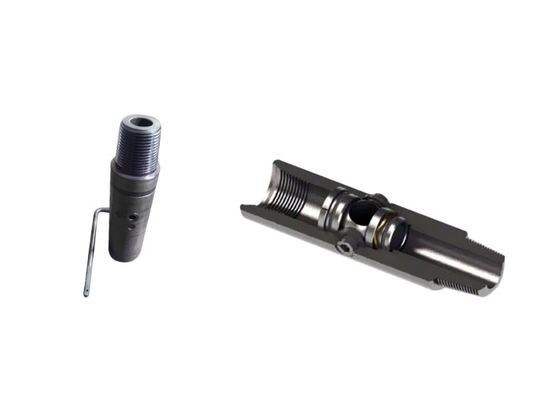

③Seal failure, the sealing structure of the plug valve consists of three parts, of which the main seal between the ball and the upper valve seat is particularly important. If it fails, the function of the plug valve as a stop valve will be completely lost. For this reason, on the basis of failure analysis, measures to reduce the above three types of failures are proposed.


production name:kelly valves

Style and size: OD5 3/4", 4 1/2IF , 5000PSI

Connection: NC38

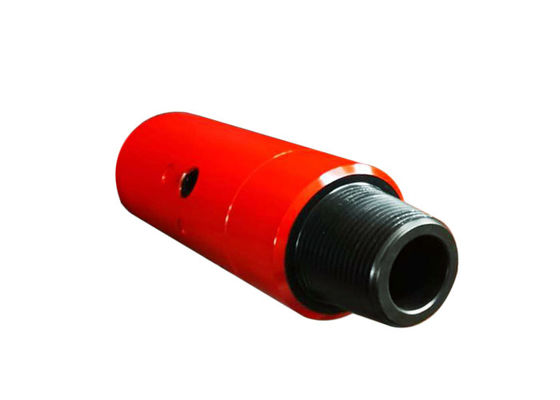

API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 0

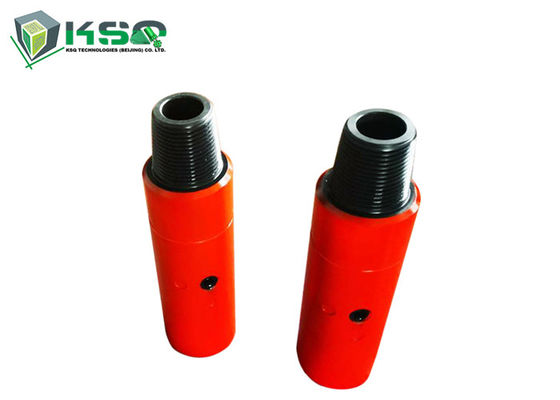

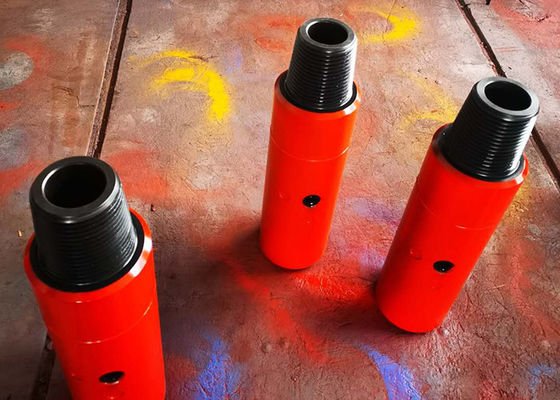

API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 1API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 2

API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 3

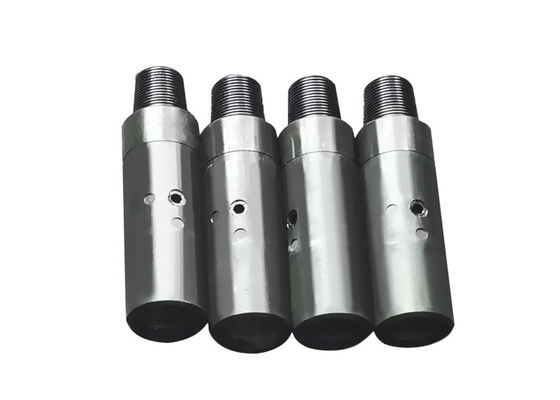

API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 4API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 5API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well 6
