| Place of Origin: | China (Mainland) |
| Brand Name: | MIROC |
| Certification: | ISO9001 |
| Model Number: | Furukawa HD 709 |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 5-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 pieces per month |
| Product Name: | Shank Adapter | Processing: | CNC Milling And Proprietary Heat Treatment Process |
|---|---|---|---|
| Material: | Carbon Steel | Application: | Tunneling,Water Well,blasting,quarrying,concrete Drilling |
| Atlas Copco Drifter: | Cop2160, Cop1840, Cop1838, Cop1238 Etc | Furukawa Drifter: | HD715, HD712, HD612, HD609, HD709, HD300 Etc |
| Thread: | R32, R38, T38, T45, T51 | Diameter: | 32-90MM |
| Length: | 380mm-1180mm | Condition: | Brand New |
| High Light: | 620mm drill shank adapter,t45 drill shank adapter,Drifter drill shank adapter |
||

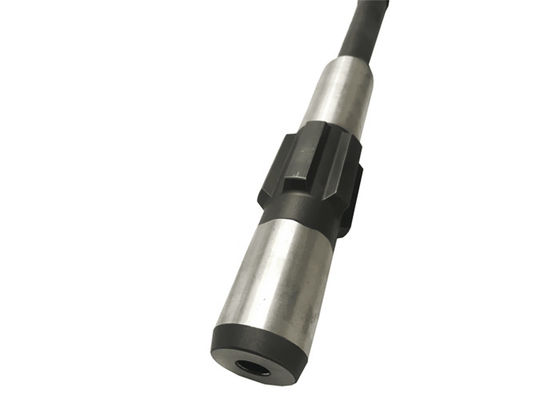

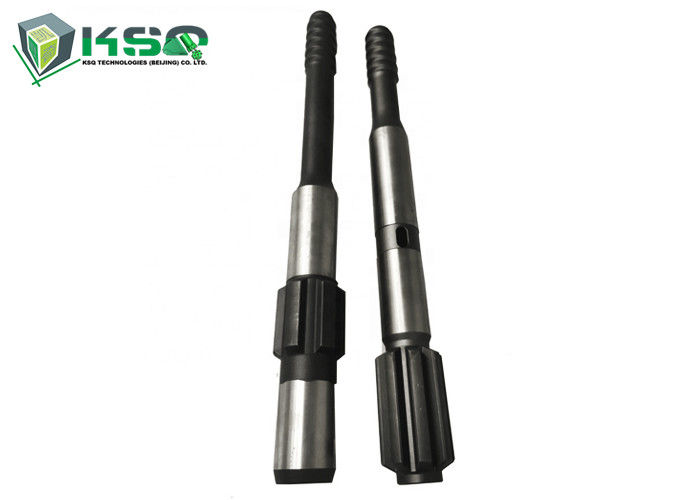

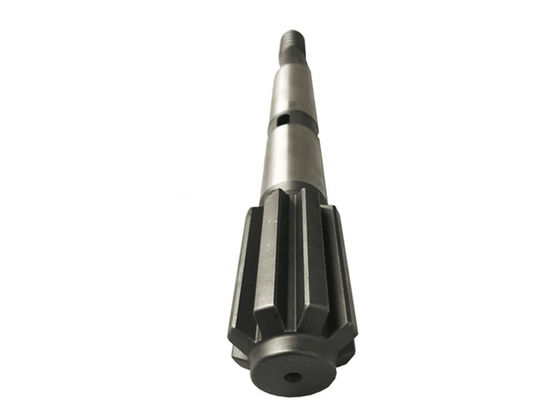

620mm T45 For Rock Drill ( Drifter ) Furukawa HD 709 Drill Shank Adapter
The shank adapters from Pro-drill are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification:
| SHANK ADAPTER FURUKAWA | ||||||
|
Rock Drill |
Applica-tion |
Flush-ing mm |
Thread
|
Length (L) mm |
Dia (D) mm |
Weight Approx kg |
|
Furukawa PD200
|
Bench drilling |
14 |
R32 T38 T38 |
330 380 446 |
44.5 44.5 44.5 |
3.3 3.7 4.5 |
|
Furukawa PD200R
|
Bench drifting |
14 |
T38 |
485 |
44 |
4.8 |
|
Furukawa HD210 |
Drifting |
- |
R38 T38
|
605 410 |
40 40 |
5.9 4.1 |
|
Furukawa HD300 |
Bench drilling |
16 |
T38 T45 |
655 655 |
45 45 |
6.2 6.5 |
|
Furukawa HD500
|
Bench drilling
|
18 |
T45 |
710 |
51.8 |
9.6 |
|
Furukawa HD609
|
Bench drilling |
- |
T38 T38 T45 |
620 690 620 |
45 45 45 |
6.0 6.4 6.6 |
|
Furukawa HD609RP |
Drifting |
- |
T38 T45 |
795 795 |
45 45 |
6.5 6.5 |
|
Furukawa HD612
|
Bench drilling
|
-
|
T38 T45 T45 |
710 710 720 |
50.8 50.8 50.8 |
8.9 9.1 9.2 |
| Furukawa HD612RP |
Drifting
|
- |
T38 T45 T51 |
845 845 845 |
51 51 51 |
10.6 11.0 11.4 |
|
Furukawa HD615 |
Drifting
|
- |
T45 T51 T51 |
700 700 876 |
58 58 58 |
11.7 11.7 14.0 |
|
Furukawa HD709
|
Bench drilling |
- |
T38 |
620 |
45 |
6.1 |
|
Furukawa HD712 |
Bench drilling |
- |
T45 T51 T45 T51 |
590 590 790 790 |
51 51 51 51 |
8.4 8.8 9.75 9.9 |
|
Furukawa HD712RP |
Drifting |
- |
T45 T45 T51 |
787 885 885 |
50.8 50.8 50.8 |
11.9 12.7 13.4 |
|
Furukawa HD715 |
Drifting |
- |
T45 T51 |
790 790 |
58 58 |
11.2 12 |
|
Furukawa HD715RP |
Drifting |
- |
T51 |
885 |
58 |
16.2 |
1. Independently researched and developed alloys with high strength and good abrasion resistance;
2. Independently researched and developed world-class production equipment, advanced production technology,ensuring product quality stability
3. Wide range of products, matching different working conditions
