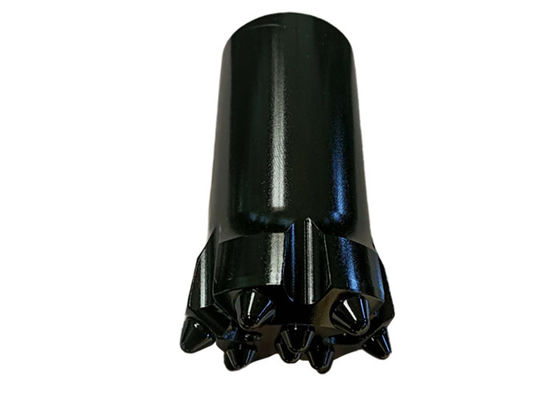

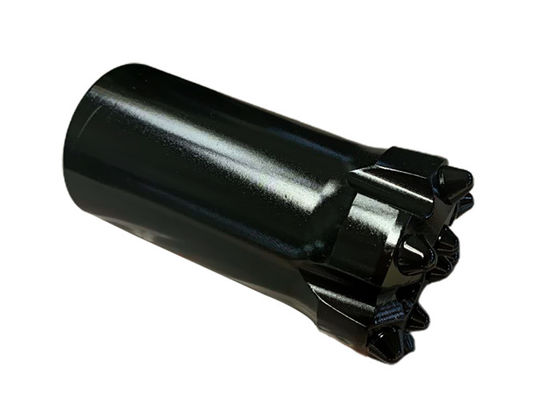

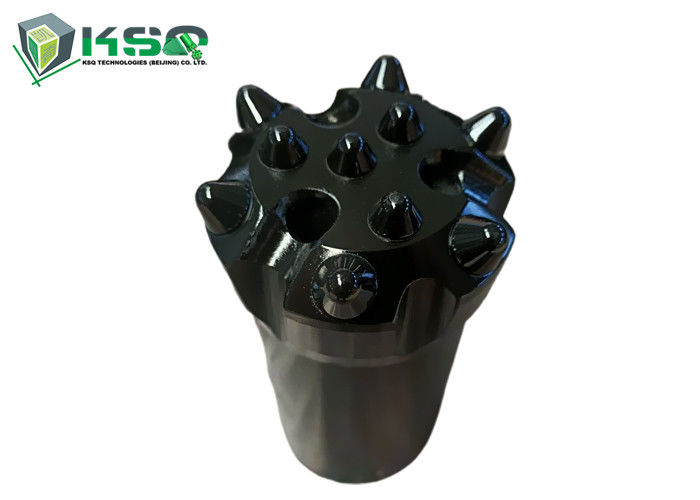

T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit

T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit

T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit
T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit
T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Drill bits
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden box
Delivery Time: 15-20days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Product Name: T45 Button Bits Diameter: 76mm
Material: Carbide Processing Type: Forging
Usage: Drifting Tunneling Bench Drilling Button Size: 4x13mm,6x13mm
Highlight:

t45 button drill bit

,

76mm button drill bit

,

10 ballistic button drill bit

T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit



Button Drill bits

This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture

• Widely used in bench and long hole drilling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T45 Button Bit Spherical Buttons



Type

Thread Button Bit

Material

tungsten carbide

Use

Ore Mining, quarry,mining,blasting,construction,open bit etc.

Advantages

high quality and factory prices

Boby type

Normal type or retrac type

Thread

R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68

Tungsten carbide

Spherical, ballistic,Conical,Hemispherical

Fact type

Drop Center, Flat Face, Convex, Concave, etc

Color

According to your requirements



 Applications

• Underground mining
• Tunneling
• Quarry



 Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatmen





T45 Thread button Drill Bit Specification

T45 Button Bit
Thread Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
T45 76 3 4×11 8×11 40° 2 - 2.6 4148300807
76 3 5×11 8×12 35° 2 1 2.6 4148300808
76 3 3×11,1×11 6×13 35° 3 - 2.4 4148300809
76 3 4×11,1×11 8×12 35° 4 - 2.6 4148300810
89 3 1/2 4×13 8×13 40° 2 - 4.6 4148300811
89 3 1/2 6×11 8×12 35° 2 - 4.6 4148300812
89 3 1/2 3×11,2×11 6×13 35° 3 1 4.1 4148300813
89 3 1/2 4×11,1×11 8×12 35° 4 - 4.6 4148300814
89 3 1/2 4×13,1×13 8×13 35° 4 - 4.6 4148300815
102 4 5×14 8×14 40° 2 - 5 4148300816
102 4 6×13 8×16 40° 2 1 5 4148300817
102 4 3×13, 2×13 6×14 35° 3 1 4.5 4148300818
102 4 4×13, 1×13 8×14 35° 4 - 4.5 4148300819
102 4 4×13, 2×13 8×13 35° 4 1 4.5 4148300820


T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit 0



MIROC® Rock Drilling and Ground Support Tools include:


Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers

T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit 1T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit 2T45 76mm Flat Face 10 Ballistic Long Hole Drilling Button Drill Bit 3
