Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy

Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy

  • Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy
  • Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy
  • Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy
Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO9001
Model Number: DTH Hole Opener
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 10-25days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Color: Green, Black And Demaned By Customer
Use: Underground Mining Reamed Dia: 130-660mm
Guide Diameter: 80- 445mm Product Name: DTH Hole Opener
Application: Tunneling,piling,water Well,blasting,quarrying,concrete Drilling
High Light:

80mm dth hole opener

,

445mm dth hole opener

,

water conservancy dth hole opener

Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy



Product Description

Hole opener bits are designed specifically for this purpose, which is an effective way of enlarging holes, hence the bits named as "Hole Opener". A common practice involves drilling a relatively small pilot hole at first stage, and second and final stage then further widening it with a hole opener bits, since this can result in a straighter hole and require less powerful machinery. And different stages can be set per drilling specifications to maximize cutting breaking and removal, and rig capabilities. Besides, rotation torque, the DTH hole opener involves a concussive force that repeatedly impact a drilling head to the rock or other substrate. The impacting action can pulverize rock and also force it back and up, helping to clear out the borehole. So, in addition to widening a bore hole, a hole opener can also clean excess material out of it.



Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.



Technical parameter

Carbide Hole Opener Bit For water well Drilling Specifications

Reamed Dia(mm)

165 178 190 216 254 305 305 381 381 445 482 600

Guide Dia(mm)

82 99 115 138 159 208 208 296 296 305 311 445
Gauge Button 16 16 18 18 18 18 20 20 20 20 22 22
Front Button 14 14 15 15 16 16 18 18 18 18 19 19
Shank Bit

DHD340A QL40,SD4 ,Mission 40

DHD350,QL50,
SD5,Mission50

DHD360,QL60,SD6 , Mission60

DHD380 , QL80 . SD8 , Mission80

SD10 . Numa10

DHD112 , SD12 . Numa120

We can design and manufacture according to customers' requirement of the bit diameter, and the size of the hole opener.



How to order

Guide diameter+Reamed Diameter+Shank Type



KSQ Supply has a large variety of Hole Openers on the shelf, and if we don't have what you're looking for we can have one custom-made to your specific application.

Please contact us for your specific needs, and we will make it happen.

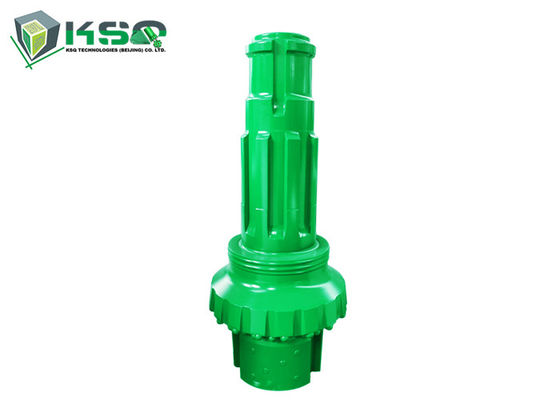

Pictures:



Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy 0Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy 1

Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy 2
