| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | Rotary Drill Pipe |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Steel bundle |
| Delivery Time: | 50-60days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Type: | Rotary Drill Pipe | Length: | 6000mm ~12000mm |
|---|---|---|---|
| Diameter: | 165MM | Processing Type: | Friction Welding |
| MOQ:: | No Requirement For Testing And Trial Order | Thread: | BECO 4" |
| High Light: | BECO 4" thread drill pipe,6 1/2" OD drill pipe,Gardner Denver drill tube |
||

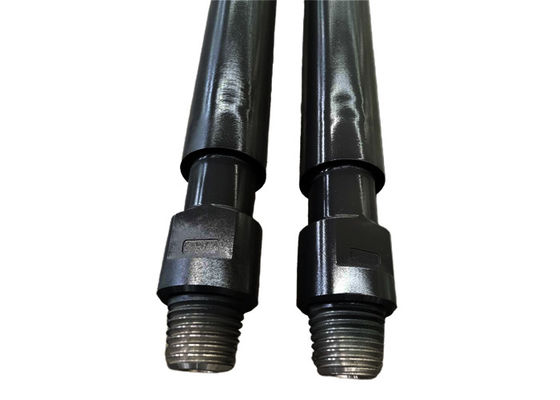

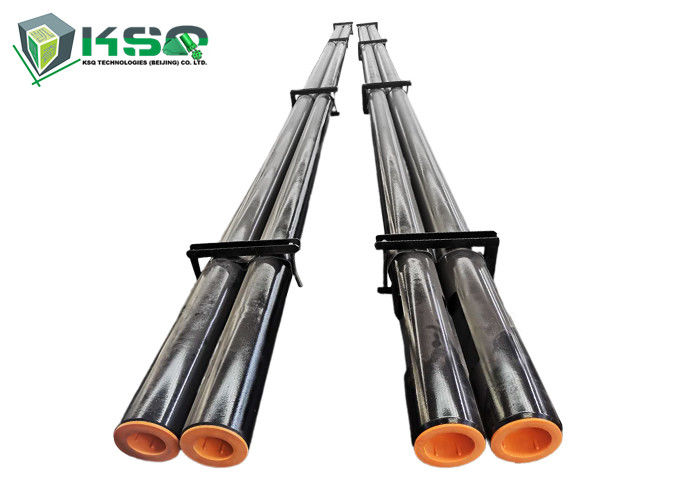

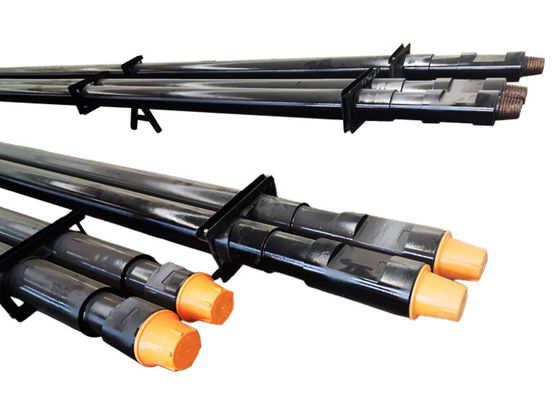

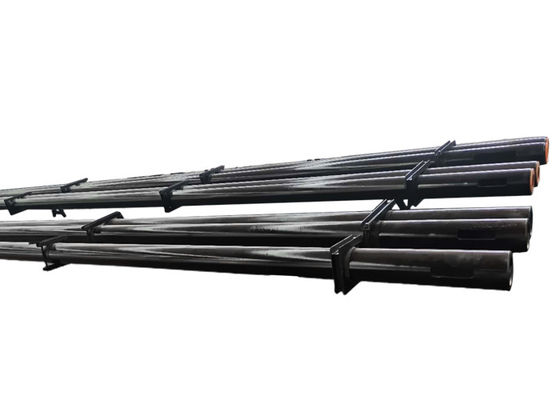

BECO 4" Thread 6 1/2" OD Blast Hole Drill Pipe For Gardner Denver GD45-B
Product Name: | Blast hole drill pipe | |||||
Description: | Blast hole Drill pipe 6 1/2" OD x 32 feet shoulder to shoulder length x 3/4" wall thickness x 4” BECO Pin & 4” BECO Box For Gardner Denver GD45-B | |||||
Processing Type | Friction welding | |||||
MOQ: | No requirement for testing and trial order | |||||
Series: | BECO | |||||
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
| Rotary Drill Pipe Options For Rig Types | ||||
| DM45/DM50/DML | DMH/DMM/DMM2 | DMM3 | Pit Viper 235 | Pit Viper 271 |
| Pit Viper 351 | MD 6240/6250 | MD 6290 | MD 6420 | MD 6540C |
| MD 6640 | 250XPC | 285XPC | 320XPC | 77XR |
| D245S / D245KS | D25KS | D45KS / D50KS | D55SP | D75KS |
| D90KS | DR440 | DR460 / 461 | ||
STANDARD ROTARY DRILL PIPES
| Diameter | Wall Thickness | Length | Thread | |||
| in | mm | in | mm | ft | mm | |
| 5 | 127 | 0.500 | 12.7 | 25-30 | 7620-9144 | 3 1/2" BECO |
| 5 | 127 | 0.750 | 19.1 | 25-30 | 7620-9144 | 3 1/2" BECO |
| 5 1/2 | 140 | 0.500 | 12.7 | 25-30 | 7620-9144 | 3 1/2" BECO |
| 5 1/2 | 140 | 0.750 | 19.1 | 25-30 | 7620-9144 | 3 1/2" BECO |
| 6 | 152 | 0.750 | 19.1 | 25-30 | 7620-9144 | 4" BECO |
| 6 1/4 | 159 | 0.750 | 19.1 | 25-30 | 7620-9144 | 4" BECO |
| 6 1/4 | 159 | 1.000 | 25.4 | 25-30 | 7620-9144 | 4" BECO |
| 6 1/2 | 165 | 0.750 | 19.1 | 25-30 | 7620-9144 | 4 1/2" BECO |
| 6 1/2 | 165 | 1.000 | 25.4 | 25-30 | 7620-9144 | 4 1/2" BECO |
| 6 5/8 | 168 | 0.862 | 21.9 | 25-30 | 7620-9144 | 4 1/2" BECO |
| 7 | 178 | 0.750 | 19.1 | 25-40 | 7620-12192 | 4 1/2" BECO |
| 7 | 178 | 1.000 | 25.4 | 25-40 | 7620-12192 | 5 1/4" BECO |
| 7 5/8 | 194 | 0.750 | 19.1 | 25-45 | 7620-13716 | 5 1/4" BECO |
| 7 5/8 | 194 | 1.000 | 25.4 | 25-45 | 7620-13716 | 5 1/4" BECO |
| 8 5/8 | 219 | 0.750 | 19.1 | 25-45 | 7620-13716 | 6" BECO |
| 8 5/8 | 219 | 0.906 | 23.0 | 25-45 | 7620-13716 | 6" BECO |
| 8 5/8 | 219 | 1.000 | 25.4 | 25-45 | 7620-13716 | 6" BECO |
| 9 1/4 | 235 | 1.000 | 25.4 | 25-45 | 7620-13716 | 6" BECO |
| 9 1/4 | 235 | 1,250 | 31.8 | 25-45 | 7620-13716 | 6" BECO |
| 9 1/4 | 235 | 1.500 | 38.1 | 25-45 | 7620-13716 | 6" BECO |
| 10 3/4 | 273 | 1.000 | 25.4 | 27.50-45 | 8382-13716 | 8" BECO |
| 10 3/4 | 273 | 1.250 | 31.8 | 27.50-45 | 8382-13716 | 8" BECO |
| 10 3/4 | 273 | 1.500 | 38.1 | 27.50-45 | 8382-13716 | 8" BECO |
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
