Place of Origin: | CHINA |
Brand Name: | MIROC |
Certification: | ISO |
Model Number: | DTH340 DTH Hammer Bit |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 10-25 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000 pieces per month |
Category: | Drilling Equipment | Condition: | New |
---|---|---|---|
Pressure: | High Pressure/Low Pressure | Inserts Design: | Spherical; Ballistic; Parabolic |
Specification: | 76-1000mm | Color: | Request |
Advantage: | High Performance | Product Name: | Dth Bit,rock Drill Bit , Dth Hammer Bit |
High Light: | 6 Inch dth hammer bit,DTH340 dth hammer bit,DTH340 bit |

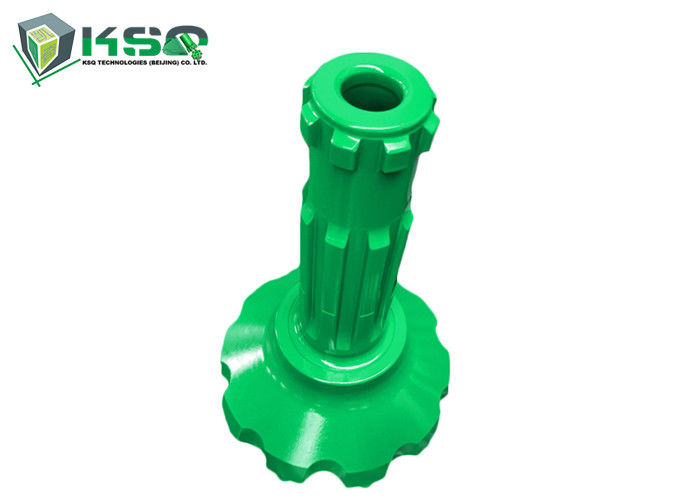

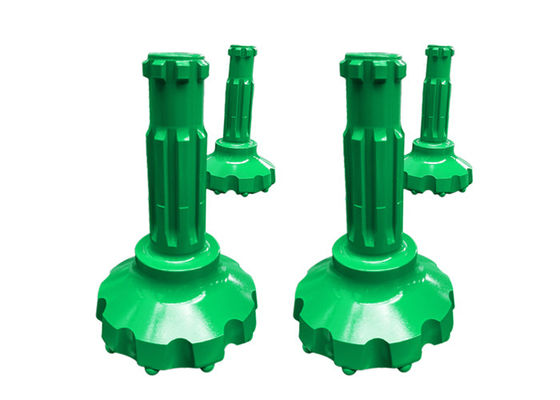

6 Inch DTH340 Mining And Well Drilling Blast Hole DTH Hammer Bit
DTH rock drill bits are in different sizes ranging from 3" to 12".
DTH rock drill bits are available in valveless model and is competent to operate in harsh conditions
DTH rock drill bits have four kinds of button type
Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground.
Color: Green,Blue or Based on Customer requirements
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
HAMMER INCH | BIT DIA(MM) | BIT DIA(INCH) | SHANK |
1 | 64MM-76MM | 2 1/2"-3" | BR1 |
2 | 76MM-90MM | 3"-3 1/2" | BR2/PAD320 |
3 | 85MM-105MM | 3 2/5"-4" | BR3/DHD330/COP32/PAD330 |
3.5 | 85MM-110MM | 3 2/5"-4 1/3" | DHD3.5/IR3.5/COP34/QL30/PAD3.5 |
4 | 105MM-140MM | 4"-5 1/2" | DHD340/COP44/QL40/SD4/MISSION40/PAD340 |
5 | 127MM-200MM | 5"-8" | DHD350/COP54/QL50/SD5/MISSION50/PAD350 |
6 | 152MM-254MM | 6"-10" | DHD360/COP64/QL60/SD6/MISSION60/PAD360 |
8 | 195MM-350MM | 7.2/3"-13 4/5" | DHD380/COP84/QL80/SD8/MISSION80/PAD380 |
10 | 254MM-380MM | 10"-15" | SD10/NUMA100/DHD1100/PAD1100 |
12 | 305MM-457MM | 12"-18" | SD12/NUMA120/DHD1120/PAD1120 |
