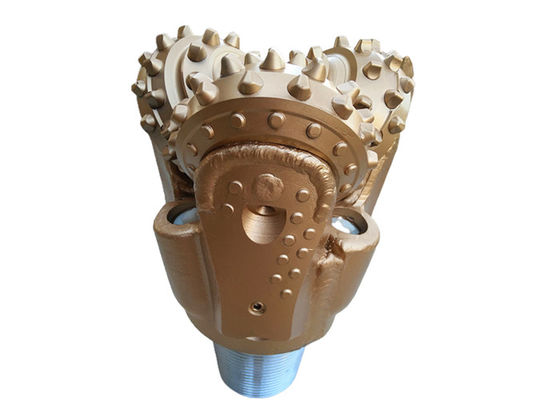

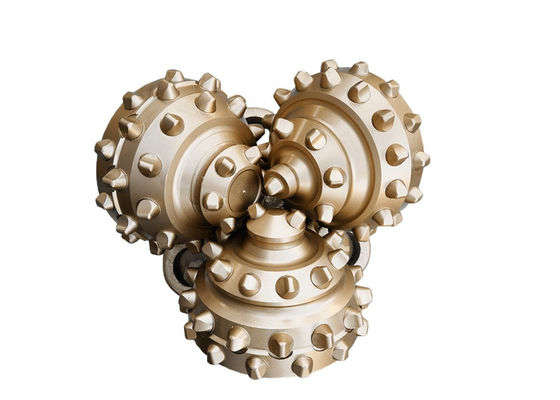

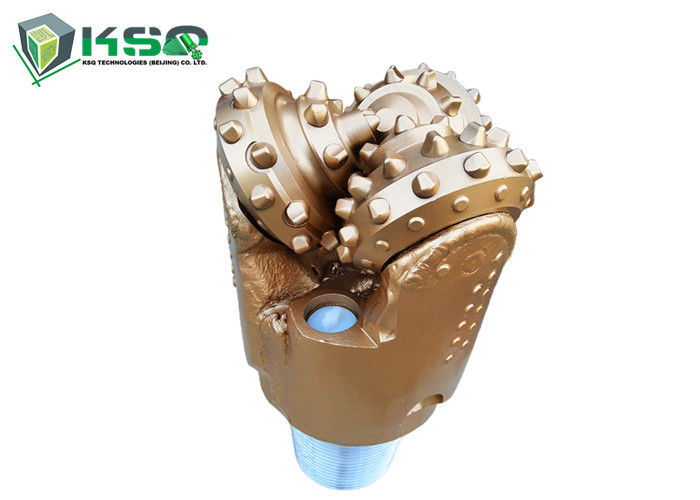

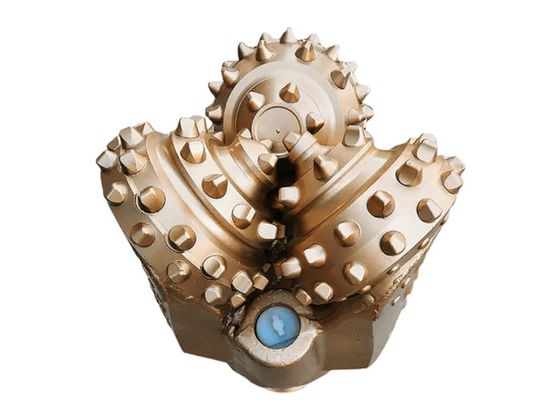

IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit

IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit

IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit
IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit
IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: IADC537 Tci Tricone Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box or Wooden Box
Delivery Time: 5-15 Working Days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Applicable Industries: Energy & Mining, Water Well Drilling Material: Tricone Bit, Tungsten Carbid
Use: Well Drilling Name: Tricone Bit
Diameter: 3 Inch~36inch Teeth Type: Insert Button Or Milled Tooth,saw Tooth
Connection: 3 1/2" API Reg Pin Rock Formation: Soft, Mediom And Hard
High Light:

IADC537 tci tricone bit

,

IADC537 bit

,

3 inch tci tricone bit

IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit



Versatility and Performance

Tricone drill bits has been in continuous use in the oil & gas industry, and is still being improved!

We have a wide selection of tricone bits - there’s a bit for every application.

Our product line can be configured to use tungsten car bide insert (TCI) bits and steel tooth bits for the toughest drilling applications.



Product Specfication

Type Tricone Bearing Type Air Circulation
Configuration Roller-ball-roller Cutting structures TCI
Gauge rows Wedge Inner rows Conical
Nose rows Conical Surf rows Round
Bit connection 3 1/2”REG API Circulation type Jet Nozzle
Head Type Full armor Hard facing Standard
Armor Round(TCI) Reaming None



Application

1. The6 1/4” IADC 517 blast hole bits are designed for drilling soft to medium hard formations, with rock compressive strength ranging from 10,000 to 35,000 psi.

2. Formation drilled may consist of shale, limestone, quartzite, slate, sandstone and granite.



Specifications

IADC

code

Applicable Formation Main characteristics of the bit Recommended parameters
Cutting structure

Normal WOB

kN/mm (bit dia.)

Rotary

speed (rpm)

517 Soft formations with low compressive strength and high drillability, such as shale, clay, rock salt, soft limestone, etc.

Large radius scoop compacts in inner row,

wedge compacts in outer row, inequable

spaced compacts arrangement ,

and a row of trimmers is added

between gage row and heel row

0.50~1.05 220~40



IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit 0IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit 1

IADC537 Sliding Bearing Insert Oil Well Drill Tci Tricone Bit 2
