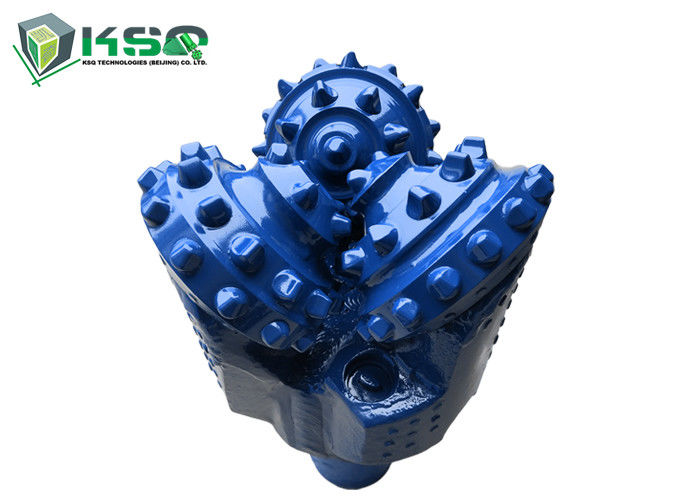

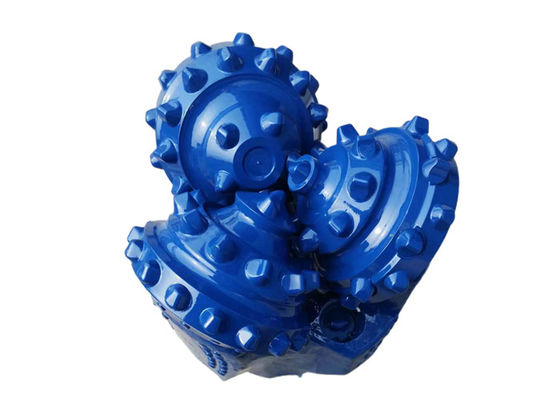

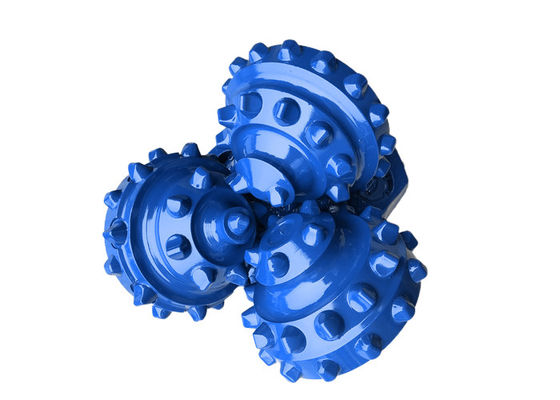

IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells

IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells

IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells
IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells
IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO API
Model Number: IADC 537 Drill Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box or Wooden Box
Delivery Time: 15-25 Working Days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Tricone Drill Bit Material: High Manganese Steel, Diamond
Application: Coal Mining,Quarry Drilling,DTH Drilling Color: Request
Advantage: High Wear Resistance And High Toughness Formation: Soft To Hard
Bearing Type: Rubber Sealed And Metal Sealed Export Markets: Global
Size: Customization Is Welcomed Nozzle: Normal
High Light:

iadc 537

,

IADC 537 Tricone Drill Bit

,

Diamond Tricone Drill Bit

IADC 537 Three Cone Rock Drilling Oil Rig And Drilling Water Wells Tricone Drill Bit



Product Description:

KSQ tricone bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for seismic prospecting,construction engineering.now there are eleven common types of tricone rock bits.

Steel teeth series:IADC CODE:116,117,126,127,136,137,216,217,317,337,

TCI series:IADC CODE:417,437,447,517,527,537,547,617,627,637,647,737,837.

TCI tricone bit, tci roller Bits ,roller bit,steel tooth roller bit,TCI roller bit,TCI tricone bit

1.Sizes rang from 3 7/8" to 26"
2.Covers almost all IADC code.
3.Reliable quality and reasonable price



Advantages of our products:
(1) Strong resistance to abrasion and impact resistance.
(2) Cutter's quality performance is good ,
(3) long work life
(4) stocks adequate, time delivery
(5) rich experience in drill bit
(6) good after-sales service
(7) High quality, competitive price



Specifications:

Product Parameter
Bit Size 9 7/8"(250.8MM)
IADC Code 537G
Connection 6 5/8 inch API REG PIN
Nozzle Qty 3NZ
Making up torque (KN.M) 38~43.4
MAX. WOB(KN) ≤200
FLOW Rate (IPS) 24~32
Application formation Soft shale,limestone,dolomite
sandstone,hard gypsum,etc



IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells 0IADC 537 Three Cone Tricone Drill Bit Rock Drilling Oil Rig And Drilling Water Wells 1
