| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO API |
| Model Number: | GT60 Retract Button Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 5-15 Working Days |
| Supply Ability: | 20000 pieces per month |
| Type: | DRILL BIT | Material: | Carbide, Tungsten Carbide |
|---|---|---|---|
| Use: | Ore Mining, Masonry Drilling | Product Name: | Retract Button Bit |
| Color: | Green Blue Or Based On Demand | Quality: | Stable And Reliable |
| Process: | CNC Milling And Proprietary Heat Treatment | Thread: | GT60 92-152mm |
| High Light: | blasting carbide thread retract bit,top hammer drilling retract bit,API retractabit |
||

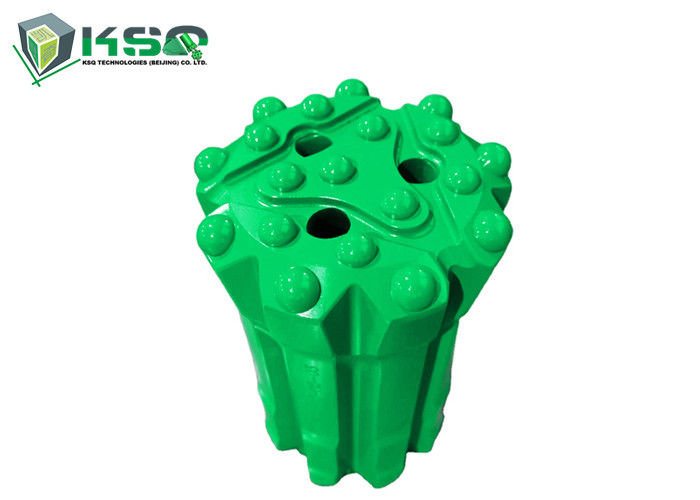

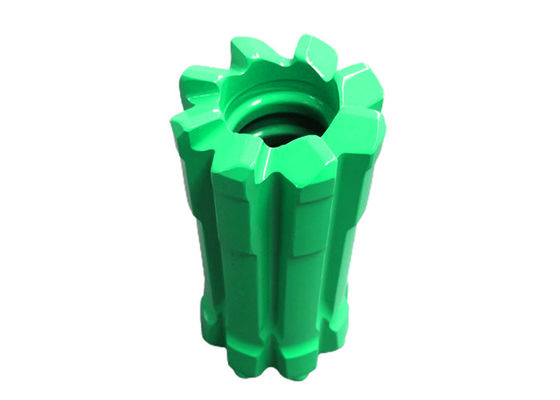

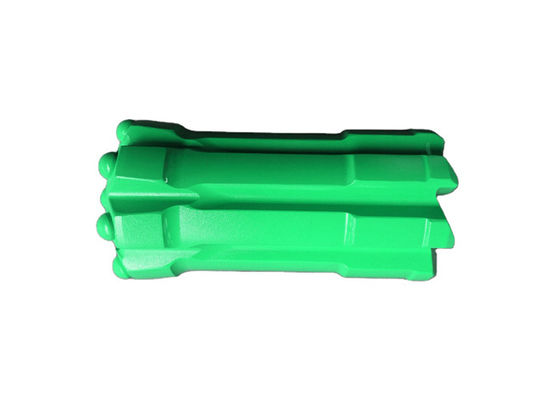

GT60 Top Hammer Drilling Blasting Carbide Thread Retract Button Bit
Description
Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock
• Color: Green,Blue or Based on Customer requirements
Product specifications: GT60 Button Bit
| GT60 Drill bits | Dia. | Tip size (mm) | Flushing hole No. | Weight | ||||
| mm | inch | Front | Gauge | Angle | Side | Front | ||
| Normal thread | ||||||||
| 92 | 3 5/8" | 13x4,13x1 | 13x8 | 35° | 4 | - | 5.3 | |
| 96 | 3 3/4" | 13x4,13x1 | 14x8 | 35° | 4 | - | 5.6 | |
| 102 | 4" | 11x9 | 13x9 | 35° | 3 | - | 6 | |
| 115 | 4 1/2" | 12x10 | 14x9 | 35° | 3 | - | 6.8 | |
| 127 | 5" | 13x10 | 14x9 | 35° | 3 | - | 7.5 | |
| 140 | 5 1/2" | 14x10 | 16x9 | 35° | 3 | - | 9 | |
| 152 | 6" | 14x12 | 16x9 | 35° | 3 | - | 10.6 | |
| Retrac thread | ||||||||
| 92 | 3 5/8" | 12x9 | 12x9 | 40° | 2 | - | 5.4 | |
| 96 | 3 3/4" | 12x9 | 12x9 | 40° | 2 | - | 6.3 | |
| 102 | 4" | 12x10 | 13x9 | 40° | 2 | - | 7.3 | |
| 115 | 4 1/2" | 12x10 | 14x9 | 35° | 3 | - | 9.8 | |
| 118 | 4 5/8" | 13x6 | 16x9 | 35° | 3 | 10 | ||
| 127 | 5" | 13x10 | 14x9 | 35° | 3 | - | 12 | |
| 140 | 5 1/2" | 14x10 | 16x9 | 35° | 3 | - | 14.0 | |
| 152 | 6" | 14x12 | 16x9 | 35° | 3 | - | 16 | |
