Mine Blast Hole Drillig Φ110-Φ135mm Hole Range M40A DTH Hammer
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
Basic Information
Product structure | Items | Replacement Parts |
![]() |
1 | Top sub |
2 | O-ring of top sub | |
3 | Breakout Ring | |
4 | Check Valve | |
5 | Spring | |
6 | Compression Buffer | |
7 | Air Distributor | |
8 | Internal cylinder | |
9 | Piston | |
10 | External cylinder | |
11 | Guide sleeve | |
12 | O-ring of stop ring | |
13 | Stop ring | |
14 | Breakout ring | |
15 | Drive chunk | |
16 | Drill bit |
Mission40 HIGH AIR PRESSURE DTH HAMMER | |
Length without bit | 1005mm |
Top sub thread | API 2 3/8" REG BOX |
Outside diameter | 99 mm |
Weight(without bit) | 40 Kg |
Bit diameter | 110-135mm |
Working presure | 1.2-2.0 Mpa |
Air consumption | 25-40 m³/min |
Bit shank | Mission40 |
4 INCH HAMMER Specification
QL40 Hammer
Drilling Diameter(mm) | Hammer Length(mm) | External Diameter(mm) | Weight(kg) | ||||
φ110-φ135 | 1097(without bit) | 99 | 41(without bit) | ||||
Working Pressure(Mpa) | Air Consumption(m³/min) | ||||||
1.2-2.0 | 1.0Mpa: 6m³/min | 1.8Mpa: 10m³/min | 2.4Mpa: 15m³/min | ||||
Impact rate at 17 bar | Connection Rod Thread | Recommended Rotation Speed | Bit Shank | ||||
27HZ | API 2-3/8'' Reg | 25-40 r/min. | QL40 |
DHD340 Hammer Specification
Drilling Diameter(mm) | Hammer Length(mm) | External Diameter(mm) | Weight(kg) | ||||
φ108-φ130 | 881(without bit) | φ99 | 38 | ||||
Working Pressure(bar) | Air Consumption(m³/min) | ||||||
8.0-30.0 | 10bar: 5 | 18bar: 10.2 | 24bar: 15 | ||||
Connection Rod Thread | Bit Shank | ||||||
API 2-3/8” Reg | DHD340A( With Foot Valve) |
KSQ DTH HAMMER
Type
|
Model
|
Length
(mm)
|
Weight
(kg)
|
External Dia.(mm)
|
Hole Range
(mm)
|
3.5 inch
|
DHD3.5
|
930
|
25
|
Φ82
|
Φ90-110
|
4 inch
|
DHD340
|
1030
|
39
|
Φ99
|
Φ110-135
|
SD4
|
1084
|
40.5
|
Φ99
|
||
QL40
|
1097
|
41
|
Φ99
|
||
Mission40
|
1005
|
40
|
Φ99
|
||
5 inch
|
DHD350
|
1214
|
76.5
|
Φ125
|
Φ135-155
|
SD5
|
1175
|
72.5
|
Φ125
|
||
QL50
|
1147
|
73
|
Φ125
|
||
Mission50
|
1110
|
68.5
|
Φ125
|
||
6 inch
|
DHD360
|
1248
|
100
|
Φ142
|
Φ155-190
|
SD6
|
1261
|
100
|
Φ142
|
||
QL60
|
1212
|
95
|
Φ146
|
||
Mission60
|
1161
|
90
|
Φ146
|
||
8 inch
|
D85
|
1492
|
188
|
Φ180
|
Φ195-254
|
SD8
|
1463
|
192
|
Φ180
|
||
QL80
|
1465
|
182
|
Φ180
|
||
Mission80
|
1338
|
176
|
Φ180
|
||
10 inch
|
SD10
|
1502
|
290
|
Φ226
|
Φ254-311
|
NUMA100
|
1510
|
288
|
Φ226
|
||
12 inch
|
DHD1120
|
All can be designed according to your requests!
|
|||
Numa120
|
|||||
Numa 125
|

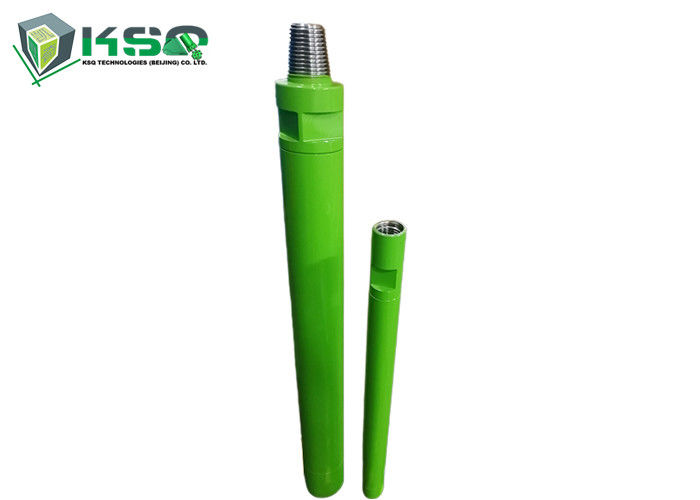

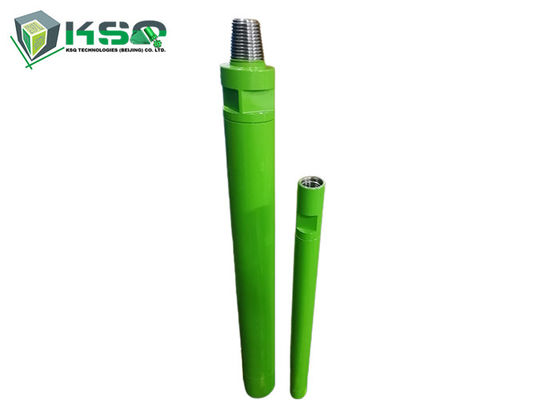

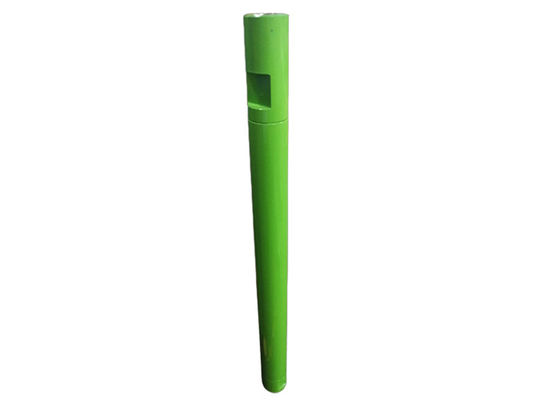

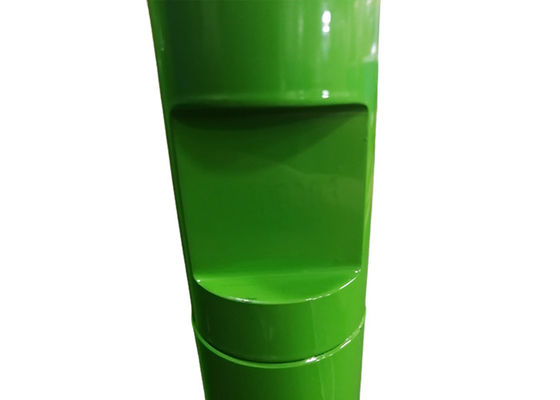

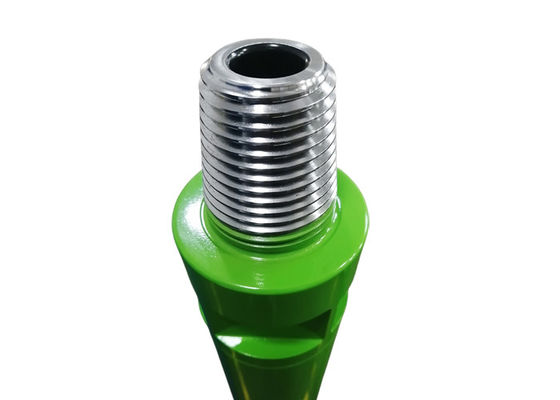

Photos of M40A Hammer
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
• Valveless air distribution, more reliable.
• Simple design of the piston. Long life span.
• More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.
• Fewer internal parts, simple structure, less failure and easier to maintain.
• Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.
