Place of Origin: | China |
Brand Name: | MIROC |
Certification: | API |
Minimum Order Quantity: | 10 Pieces |
---|---|
Price: | negotiation |
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 25 days |
Supply Ability: | 20000 pieces per month |
Model Number: | DHD 340, DHD 350, DHD 360 | Product Name: | DHD 360 Drill Bits |
---|---|---|---|
Applicante: | Down The Hole Drilling For Energy & Mining | Diameter: | 110-133mm |
Material: | Carbon Steel | Application: | Rock Drilling,Mining,Construction,quarry,Water Well Drilling |
Processing Type: | Forging | Usage: | Hole Drilling,Water Well |
Standard: | ISO-9001 | Color: | Green Black, Customized |
High Light: | DHD 340 Mission Bit,127mm Mission Bit,Water Well Drilling Mission Bit |
2021 Mission Series DTH Hammer for water well drilling 165mm DHD 360 Drill Bits
Description
We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Product |
DTH Button Bits |
Low Air Pressure | CIR80, CIR90 |
3’’ |
DHD3.5, M30, |
4’’ |
DHD340, SD4,QL40, M40 |
5’’ |
DHD350, SD5,QL50, M50 |
6’’ |
DHD360, SD6,QL60, M60 |
8’’ |
DHD380, SD8,QL80, M80 |
Color |
Green, Gold, Black or based on customer requirements. |
MOQ: |
No MOQ required for testing and trial order |
DHD340 High Air Pressure DTH Bit Specification:
Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | |||
mm | inch | Front | Gauge | kg | |||
DHD340 Ballistic button/Concave face | |||||||
115 | 4 1/2 | 4×14,2×14 | 8×14 | 2 | 10 | 4148301235 | |
121 | 4 3/4 | 4×14,2×14 | 8×14 | 2 | 11 | 4148301236 | |
127 | 5 | 4×14,3×14 | 8×14 | 2 | 12 | 4148301237 | |
130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 14 | 4148301238 | |
DHD340 Spherical button/Concave face | |||||||
115 | 4 1/2 | 4×14,2×14 | 8×14 | 2 | 10 | 4148301239 | |
121 | 4 3/4 | 4×14,2×14 | 8×14 | 2 | 11 | 4148301240 | |
127 | 5 | 4×14,3×14 | 8×14 | 2 | 12 | 4148301241 | |
130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 14 | 4148301242 | |
133 | 5 1/4 | 4×14,3×14 | 8×16 | 2 | 15 | 4148301243 | |
DHD340 Ballistic button/Convex face | |||||||
110 | 4 3/8 | 4×14,2×14 | 8×14 | 2 | 9.3 | 4148301244 | |
115 | 4 1/2 | 4×14,2×14 | 8×14 | 2 | 10 | 4148301245 | |
121 | 4 3/4 | 4×14,2×14 | 8×14 | 2 | 11 | 4148301246 | |
127 | 5 | 4×14,3×14 | 8×14 | 2 | 12 | 4148301247 | |
130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 14 | 4148301248 | |
133 | 5 1/4 | 4×14,3×14 | 8×16 | 2 | 15 | 4148301249 | |
DHD340 Spherical button/Flat face | |||||||
110 | 4 3/8 | 6×14 | 8×14 | 2 | 9.3 | 4148301250 | |
115 | 4 1/2 | 6×14 | 8×14 | 2 | 10 | 4148301251 | |
121 | 4 3/4 | 6×14 | 8×14 | 2 | 11 | 4148301252 | |
127 | 5 | 7×14 | 8×14 | 2 | 12 | 4148301253 | |
130 | 5 1/8 | 7×14 | 8×16 | 2 | 14 | 4148301254 | |
133 | 5 1/4 | 7×14 | 8×16 | 2 | 15 | 4148301255 |

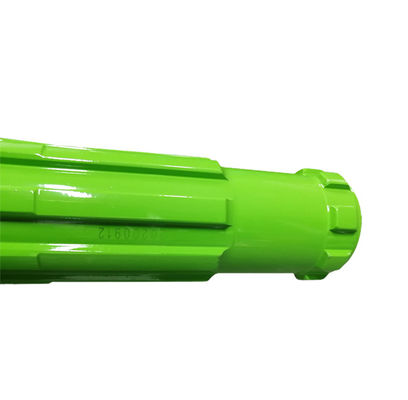

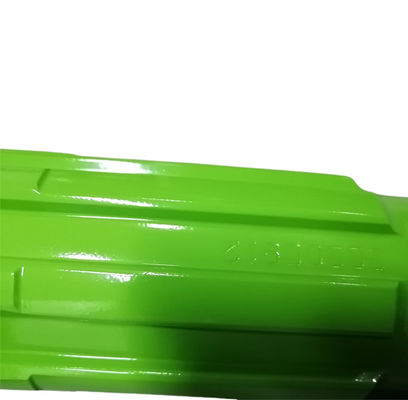

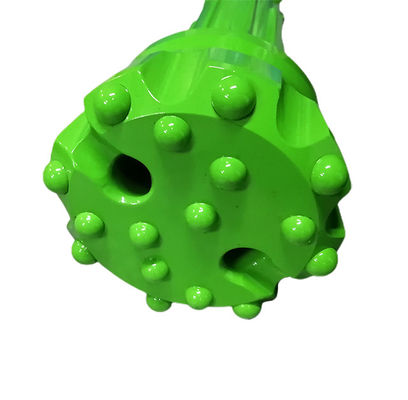

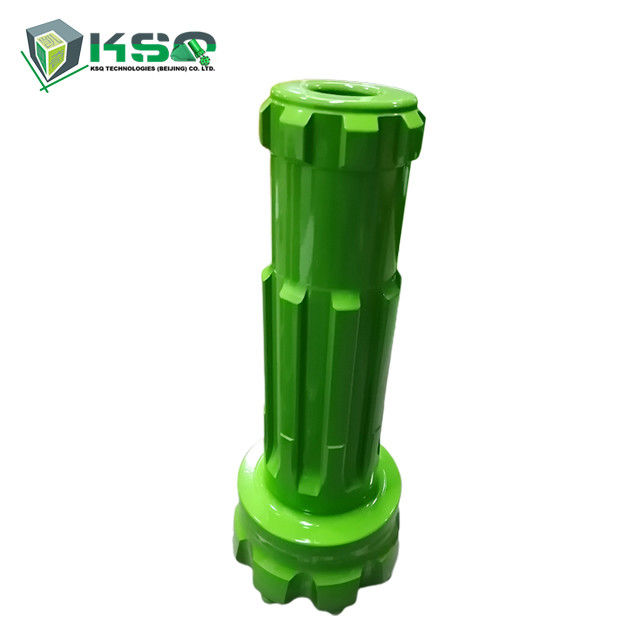

Pictures
Applications
• Underground mining
• Down the hole rock drilling
Competitive Advantage
Fast drilling speed and low air consumption
Smooth performance and long service life
Keywords
DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit
