| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |

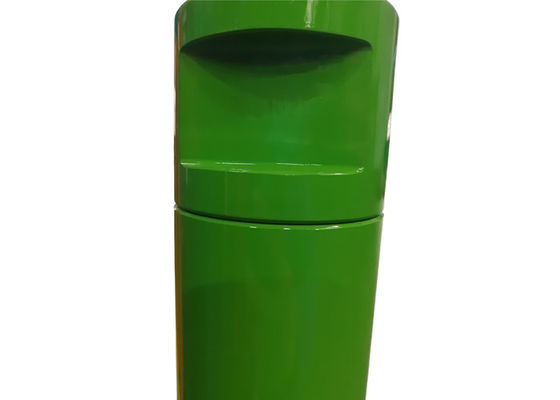

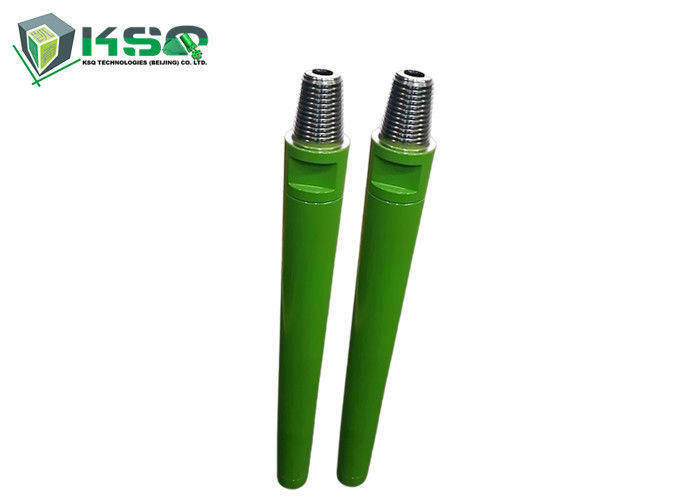

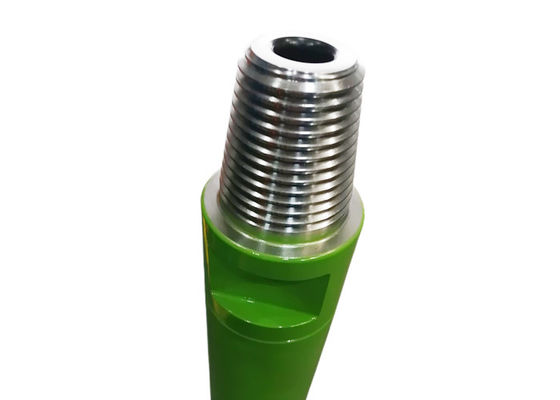

| Model Number: | COP32-90mm DTH Drill Hammer |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 2000pcs per month |
| Material: | Carbon Steel | Application: | Energy & Mining, Well Drilling |
|---|---|---|---|
| Diameter: | 1" To 16" | Pressure: | High Pressure |
| Process Type: | Forging | Packaging: | Carton, Wooden Box, Pallet |
| High Light: | Carbon Steel DTH Hammers,90mm DTH Hammers,90mm down the hole hammer |
||
| Type | Model | Length (mm) |
Weight (kg) |
External Dia. (mm) |
Hole Range (mm) |
| 3.5 inch | DHD3.5 | 930 | 25 | φ82 | φ90-110 |
| 4 inch | DHD340 | 1030 | 39 | φ99 | φ110-135 |
| SD4 | 1084 | 40.5 | φ99 | ||
| QL4 | 1097 | 41 | φ99 | ||
| Mission40 | 1005 | 40 | φ99 | ||
| 5 inch | DHD350 | 1214 | 76.5 | φ125 | φ135-155 |
| SD5 | 1175 | 72.5 | φ125 | ||
| QL5 | 1147 | 73 | φ125 | ||
| Mission50 | 1110 | 68.5 | φ125 | ||
| 6 inch | DHD360 | 1248 | 100 | φ142 | φ155-190 |
| SD6 | 1261 | 100 | φ142 | ||
| QL6 | 1212 | 95 | φ146 | ||
| Mission60 | 1161 | 90 | φ146 | ||
| 8 inch | D85 | 1492 | 188 | φ180 | φ195-254 |
| SD8 | 1463 | 192 | φ180 | ||
| QL8 | 1465 | 182 | φ180 | ||
| Mission80 | 1338 | 176 | φ180 | ||
| 10 inch | SD10 | 1502 | 290 | φ226 | φ254-311 |
| NUMA100 | 1510 | 288 | φ226 | ||
| 12 inch | DHD1120 | All can be designed according to your requests! | |||
| Numa120 | |||||
| Numa125 | |||||
