| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | DTH Sub |
| Minimum Order Quantity: | 1 Pieces DTH Sub |
|---|---|
| Price: | negotiation |
| Packaging Details: | Bundle and Wooden Box |
| Delivery Time: | 10- 25 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Certification: | ISO9001 | Product Name: | 2 3/8'' API REG Female To 2 3/8'' API Female |
|---|---|---|---|
| Type: | DTH Sub/ DTH Adapter | Application: | Construction Works , Energy & Mining |
| Size1: | Adapter API 2 3/8 IF Pin --API 3 1/2 Reg Box | Size2: | Adapter API 2-3.8 IF Box--API 2-3.8 Reg Pin |
| Size3: | Adapter API 2 3/8 Reg Box--API 2 3/8 Reg Box | Material: | Carbon Steel |
| Length: | 140mm - 225mm | Diameter: | 59mm- 115mm |
| High Light: | Well Drilling Tools Crossover Subs,Well Drilling Crossover Subs |
||
Down The Hole Drill Adapter DTH Drilling Tools Diameter 90mm 115mm 120mm
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Specification:
| DTH Subs Specification | |||||||
| Female- Male | |||||||
| Female A | Male B | Diameter A | Diameter B | Length | Wrench flat | Weight | Part Number |
| mm | mm | mm | mm | kg | |||
| 2 3/8"API Reg | 2 3/8"API Reg | 77 | 77 | 140 | 65 | 4.0 | 4148301570 |
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 140 | 65 | 5.5 | 4148301571 |
| 2 3/8"API Reg | 2 3/8"API Reg | 102 | 102 | 130 | 76 | 7.8 | 4148301572 |
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 144 | 65 | 5.5 | 4148301573 |
| 2 3/8"API Reg | 2 3/8"API IF | 95 | 95 | 130 | 65 | 8.0 | 4148301574 |
| 2 3/8"API Reg | 2 7/8"API Reg | 90 | 102 | 120 | 95 | 10.5 | 4148301575 |
| 2 3/8"API IF | 3 1/2"API Reg | 90 | 90 | 164 | 65 | 6.8 | 4148301576 |
| 2 7/8"API Reg | 2 3/8"API Reg | 90 | 90 | 154 | 65 | 6.5 | 4148301577 |
| 2 7/8"API Reg | 2 3/8"API Reg | 90 | 115 | 120 | 95 | 11.0 | 4148301578 |
| 3 1/2"API Reg | 3 1/2"API Reg | 115 | 115 | 219 | 95 | 12.5 | 4148301579 |
| 3 1/2"API Reg | 2 3/8"API IF | 115 | 115 | 160 | 95 | 10.5 | 4148301580 |
| 3 1/2"API Reg | 2 7/8"API Reg | 115 | 115 | 160 | 95 | 10.8 | 4148301581 |
| 3 1/2"API Reg | 2 7/8"API IF | 115 | 115 | 160 | 95 | 10.8 | 4148301582 |
| 3 1/2"API Reg | 3 1/2"API Reg | 115 | 115 | 160 | 95 | 10.5 | 4148301583 |
| 3 1/2"API Reg | 4 1/2"API Reg | 146 | 146 | 132 | 120 | 16.5 | 4148301584 |
| 4 1/2"API Reg | 3 1/2"API Reg | 146 | 115 | 235 | 95 | 19.0 | 4148301585 |
| F48×10 | F42×10 | 59 | 59 | 203 | 40 | - | 4148301586 |
| F48×10 | F48×10 | 59 | 59 | 203 | 40 | - | 4148301587 |
| F48×10 | 2"API Reg | 59 | 59 | 203 | 40 | - | 4148301588 |
| Female - Female | |||||||
| Female A | Male B | Diameter A | Diameter B | Length | Wrench flat | Weight | Part Number |
| mm | mm | mm | mm | kg | |||
| 2 3/8"API Reg | 2 3/8"API Reg | 77 | 77 | 200 | 65 | 4.5 | 4148301589 |
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 200 | 65 | 6.0 | 4148301590 |
| 2 3/8"API Reg | 2 7/8"API Reg | 90 | 90 | 225 | 65 | 6.2 | 4148301591 |
| 2 3/8"API Reg | 3 1/2"API Reg | 115 | 115 | 210 | 95 | 10.0 | 4148301592 |
| Male - Male | |||||||
| Female A | Male B | Diameter A | Diameter B | Length | Wrench flat | Weight | Part Number |
| mm | mm | mm | mm | kg | |||
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 70 | 65 | 4.6 | 4148301593 |
| 2 3/8"API Reg | 3 1/2"API Reg | 90 | 115 | 97 | 95 | 9.0 | 4148301594 |
| 3 1/2"API Reg | 3 1/2"API Reg | 115 | 115 | 90 | 95 | 10.0 | 4148301595 |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling

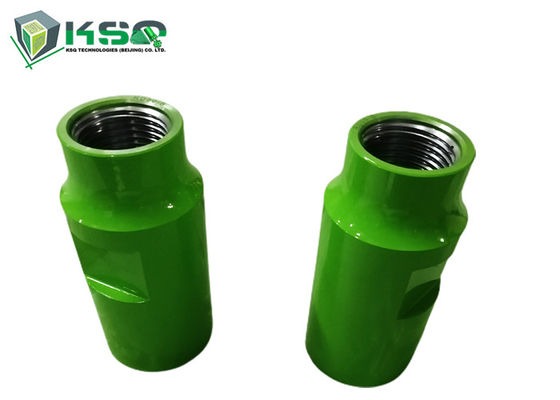

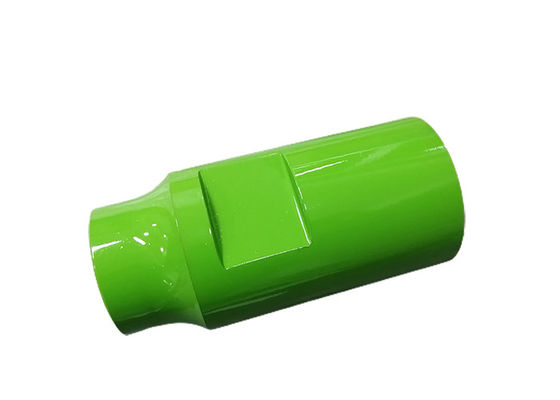

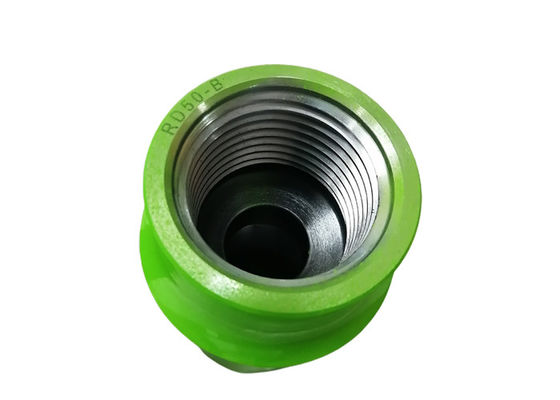

Picture:
