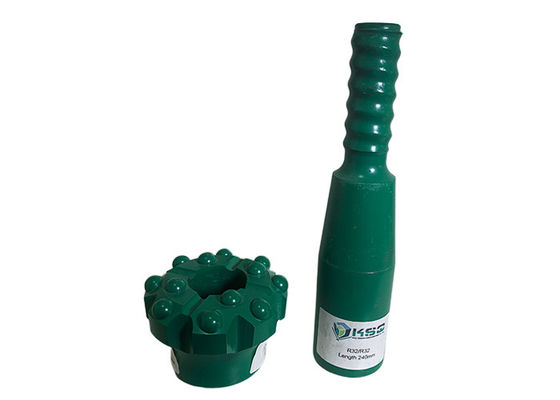

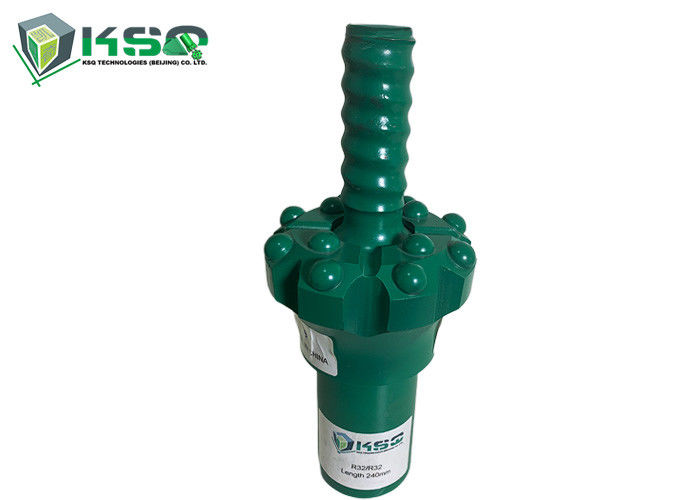

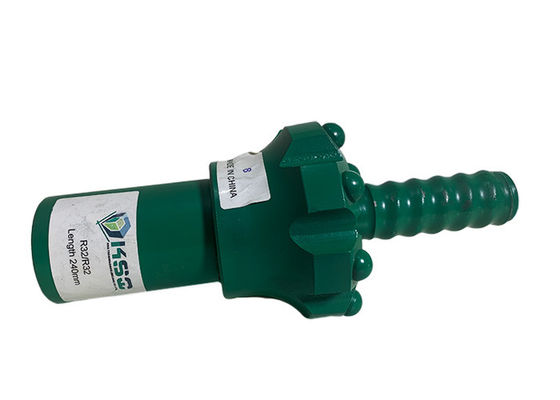

R32 Reaming Thread Button Bit for Rock Drillings
Reaming bits were widely used in quarrying or mining for blast hole drilling, with pilot adaptors, the drilling direction can be ensured and accurate. Pilot holes are drilled depth and then reamed out to a larger diameter in a second pass required when hole diameter exceeds the capabilities of the rock drill and drilling tools available.
Materials: Tungsten carbide and high strength alloy steels.
Processing: CNC milling and proprietary "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand ,military grade requirements of heat-treatment guarantee durability
This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter. Large diameter service holes from level to level for drainage, electrical cable or pipe lines routinely used to ream cut holes for development rounds and for long hole blasting of drop raise
||Dome bit / Reaming bits
||6 / 10 / 12 degree
|Diameter of Pilot adaptors:
||26 / 28 / 35 / 40 mm etc
|Diameter of reaming button bits:
||60 / 64 / 70 / 76 / 80 / 89 / 102 / 127 / 150
||R25 / R28 / R32 / R38
Button bit and Insert types
Spherical Button Characteristics
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions
Packaging of Pilot Adapter Reaming Bit
