T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod

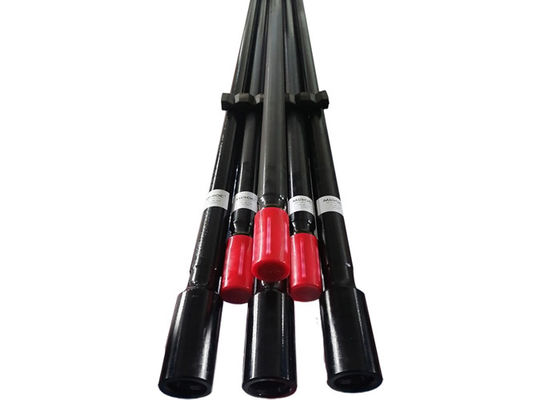

Large Image : T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	T51 MF Threaded Drill Rod

Payment & Shipping Terms:

Packaging Details:	wooden box or steel box
Delivery Time:	10-20 days
Supply Ability:	1000000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Thread:	T51	Type:	MF
Shape:	Round	Application:	Coal Mining,Quarry Drilling, Construction,Stone Drilling
Advantage:	High Performance	Color:	Request
Usage:	Drilling And Construction	Transfer:	Air/Sea/Express
Highlight:	T51 Threaded Drill Rod , 1525mm Threaded Drill Rod , MF Threaded Drill Rod

T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod

Male/Male rod,Male/Female(M/F)Rod-Speed rod M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/Fdrillsteelprovidesmorerigidconnectionsandiseasiertouncouple and handle. The service life also tends to be better than with separate couplings.
For Extension Rod and M/F steel process, the below two different types of heat treatment are used to strengthen high speed and powerful percussive drill string components to maximize their performance and reliability.-Cannibalization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of the rod. - High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen thread life.

T51 MF- Rod

Length		Diameter		Weight	Part Number
mm	foot	mm	inch	kg	Part Number
1525	5	52	2	26.2	4148300955
1830	6	52	2	30.6	4148300956
3050	10	52	2	48.3	4148300957
3660	12	52	2	57.1	4148300958
4270	14	52	2	66	4148300959
4880	16	52	2	74	4148300960
5530	18 1/7	52	2	84.2	4148300961
6095	20	52	2	92.4	4148300962

Competitive Advantage

• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment

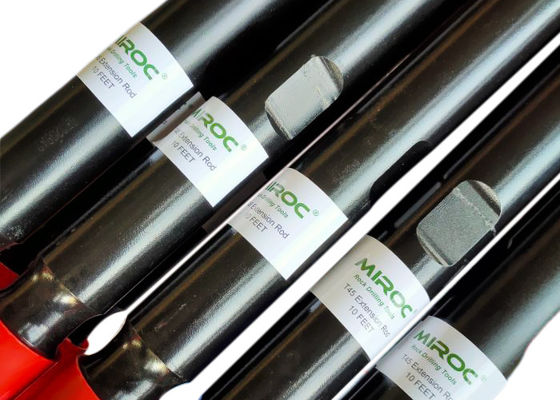

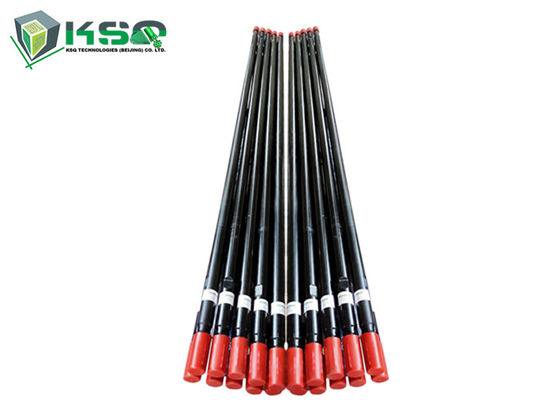

T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod 0

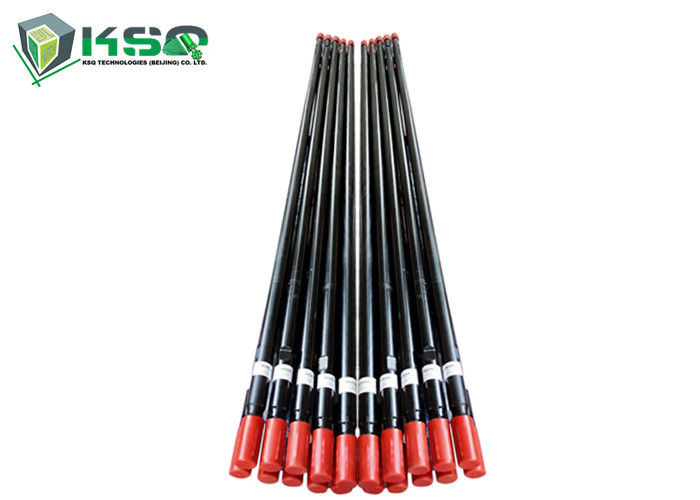

T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod 1
