| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |

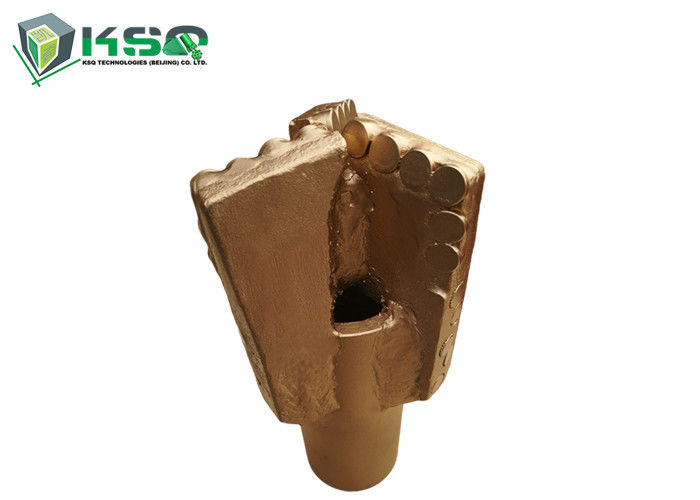

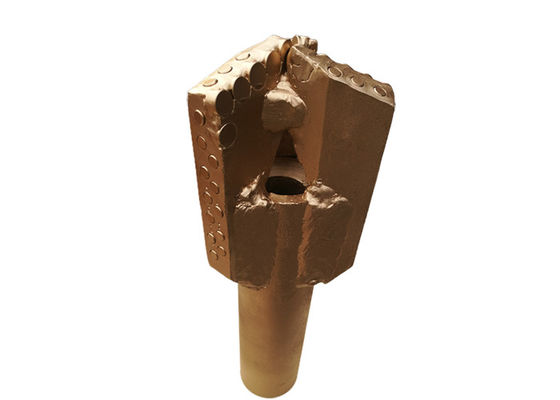

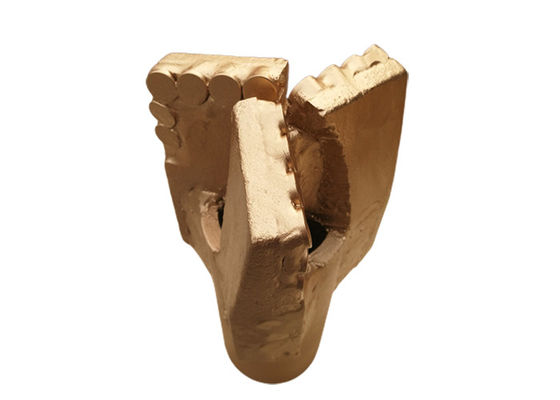

| Model Number: | 3 Wings PDC Drill Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 7000pcs per month |
| Material: | PDC Cutters And Steel Body | Wings: | 3, 4,5,6 Wings |
|---|---|---|---|
| Connection: | API Reg. Pin | Drilling Formation: | Soft-Medium Hard Rock Formation |
| Gauge Protection: | Yes | Processing Type: | Forging |
| Bearing: | Ruber Sealed Bearing Or Metal Sealed Bearing | Application: | Oil, Gas Wells Drilling |
| Color: | Golden, Blue, Green Or Customized | Origin: | Hebei, China |
| High Light: | three wings pdc drag bit,Forging pdc drag bit,Oil Well Drilling drag bit |
||
"This innovative design allows operators to recognize drilling efficiencies through
Increased rates of penetration.
Enhanced Stability.
Optimum product durability."
Specification
|
Size (Inch) |
Size (mm) |
Std. API thread |
Approximate weight (kgs) |
| 2-3/8 | 60 | Non-std. | 1.3 |
| 2-1/2 | 63.5 | Non-std. | 1.5 |
| 3 | 76 | Non-std. | 2 |
| 3-1/2 | 89 | Non-std. | 3.5 |
| 3-7/8 | 98.4 | 2-3/8" | 5 |
| 4 | 102 | 2-3/8" | 5.5 |
| 4-1/4 | 108 | 2-3/8" | 6.5 |
| 4-5/8 | 117.5 | 2-7/8" | 8 |
| 5-1/4 | 133 | 2-7/8" | 11 |
| 5-5/8 | 142.9 | 3-1/2" | 13 |
| 5-7/8 | 149.2 | 3-1/2" | 14 |
| 6 | 152 | 3-1/2" | 17 |
| 6-1/8 | 155.6 | 3-1/2" | 18 |
| 6-1/4 | 159.3 | 3-1/2" | 20 |
| 6-1/2 | 165 | 3-1/2" | 22 |
| 7-1/2 | 190.5 | 4-1/2" | 31 |
| 7-5/8 | 193.7 | 4-1/2" | 32 |
| 7-7/8 | 200 | 4-1/2" | 35 |
| 8-1/2 | 215.9 | 4-1/2" | 42 |
| 8-5/8 | 219 | 4-1/2" | 44 |
| 8-3/4 | 222.3 | 4-1/2" | 45 |
| 9-1/2 | 241.3 | 6-5/8" | 60 |
| 9-5/8 | 244.5 | 6-5/8" | 65 |
| 9-3/4 | 247.7 | 6-5/8" | 70 |
| 9-7/8 | 250.8 | 6-5/8" | 75 |
| 10-5/8 | 270 | 6-5/8" | 82 |
| 11-5/8 | 295 | 6-5/8" | 90 |
| 12-1/4 | 311.2 | 6-5/8" | 98 |
| 13-5/8 | 346.1 | 6-5/8" | 134 |
| 15-1/2 | 394 | 6-5/8" | 190 |
| 16 | 406.4 | 6-5/8" | 200 |
| 17-1/2 | 444.5 | 7-5/8" | 251 |
| 20 | 508 | 7-5/8" | 300 |
| 24 | 610 | 7-5/8" | 600 |
| 26 | 660.4 | 7-5/8" | 700 |
