| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T51 Shank Adapters |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Thread: | R32,T38, T45, T51 |
|---|---|---|---|
| Process Type: | Forging | Product Name: | Atlas Copco Shank Adapter |
| Length: | 525mm | Color: | Black Or Customized |
| Machine Type: | Drilling Machine | Spline No.: | 8 |
| High Light: | Alloy Steel Drill Shank Adapters,t51 Drill Shank Adapters,Drill Shank Adapters |
||

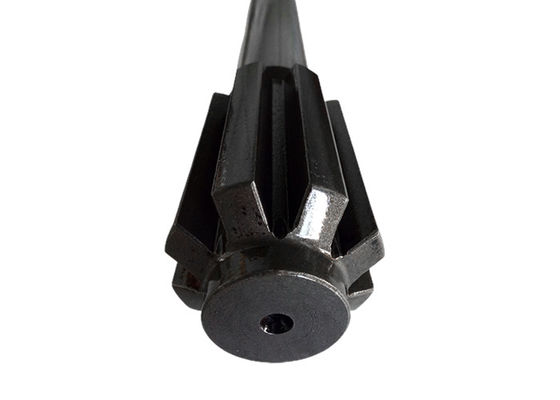

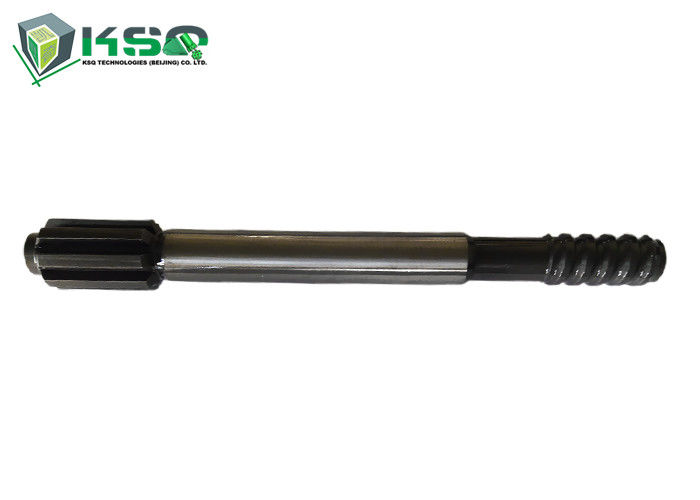

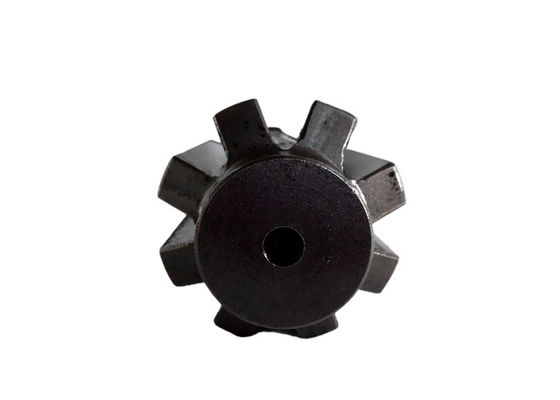

Product Description
The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification for Atlas Copco COP 1440, COP 1550, COP 1838
| Thread | Part Number | Length | Diameter | Weight | Flushing Tube |
| (L) mm | (D) mm | kg | mm | ||
| R32 (1 1/4") | 414832454 | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 414832455 | 525 | 52 | 5.9 | - |
| T45 (1 3/4") | 414832456 | 525 | 52 | 6.1 | - |
| T51 (2") | 414832457 | 525 | 52 | 6.5 | - |
