Place of Origin: | China |
Brand Name: | MIROC |
Certification: | ISO |
Model Number: | R32 SDAS |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Standrad export packaging or customised |
Delivery Time: | 15-20 days |
Supply Ability: | 20000pcs per month |
Product Name: | Self Drilling Anchor Bolt, Anchor Bolt | Processing Type: | Forging |
---|---|---|---|
Length: | 1m-9m | Finish: | Bright (uncoated) |
Usage: | Slop Stabilization, Micro Pile, Soil Nail, Anchor | Machine Type: | Drilling Tool |
Material: | Carbon Steel | Use: | Ground Engineer |
Capacity: | 200KN-8000KN | Effective Area: | 770mm² |
High Light: | r32 self drilling anchor bolt,1000mm self drilling anchor bolt,9000mm self drilling anchor bolt |

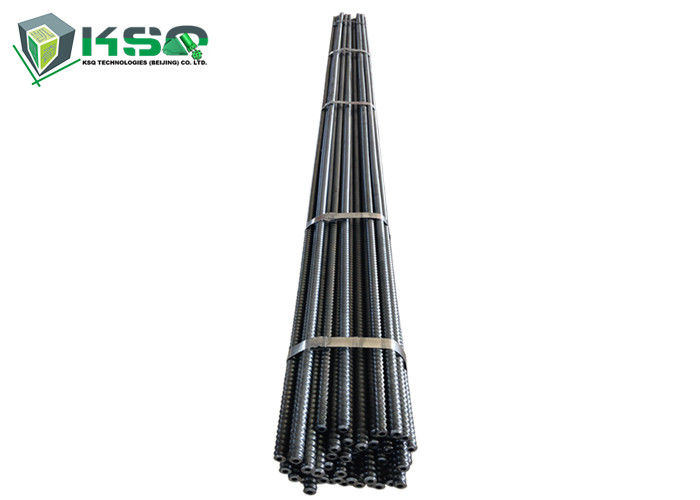

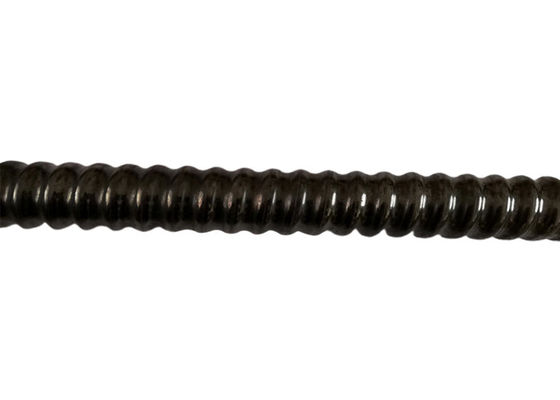

Self-Drilling Anchors
The Self-Drilling Hollow Anchor System performs drilling, anchoring and grouting in one step. It allows air and water to freely pass through the bar during drilling to remove debris and then allows grout to be injected immediately after completely covers the entire bolt.

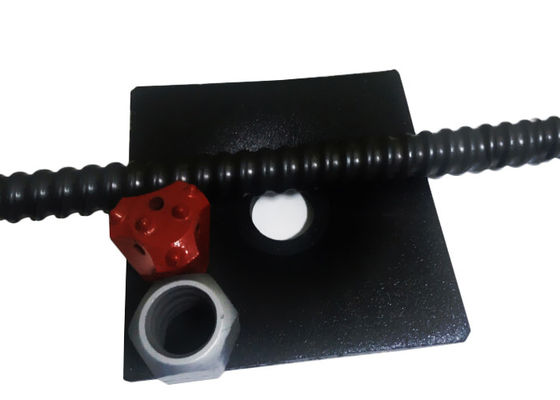

Self-drifting anchor consists of:
Self-Drilling Anchor Bolt Description
R25N | R32N | R32S | R38N | R51L | R51N | T76N | |
Outside Diameter (mm) | 25 | 32 | 32 | 38 | 51 | 51 | 76 |
Internal Diameter (mm) | 14 | 19 | 16 | 19 | 36 | 33 | 52 |
Ultimate Load Capacity (kN) | 200 | 280 | 360 | 500 | 550 | 800 | 1600 |
Yield Load Capacity (kN) | 150 | 230 | 280 | 400 | 450 | 630 | 1200 |
Tensile Strength, Rm (N/mm2) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
Yield Strength, Rp0.2 (N/mm2) | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
Weight (Kg/m) | 2.3 | 3.2 | 3.6 | 5.5 | 6.5 | 8.0 | 16.0 |
Steel Grade | EN10083-1 (Alloy Structure Steel) | ||||||
Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical. |
