DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling

DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling

  • DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling
  • DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling
  • DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling
DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO, IPA
Model Number: DTH Sub
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Standrad export packaging or customised
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Carbon Steel Usage: DTH Hammer Accessory
Item: DHD350, QL50, Mission 50, COP54, SD5, Etc. Processing Type: Forging
Connection Type: Box-Box,Pin-Box, Pin-Pin Corlor: Black Or Customised
High Light:

DHD350 dth drilling tools

,

DHD350 dth top sub

,

forging dth top sub

DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling

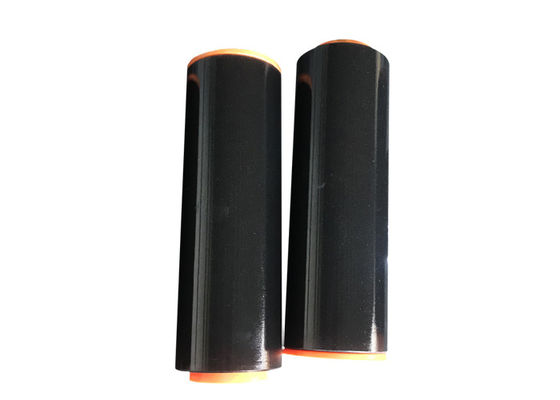

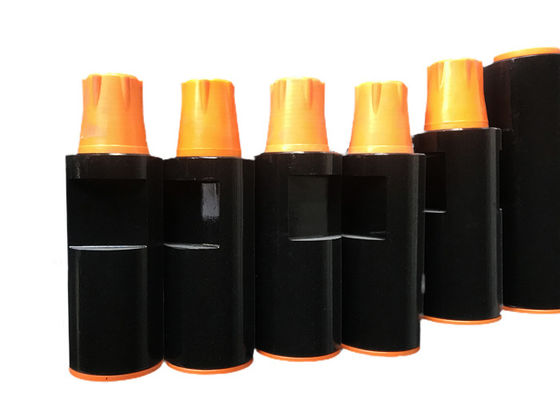

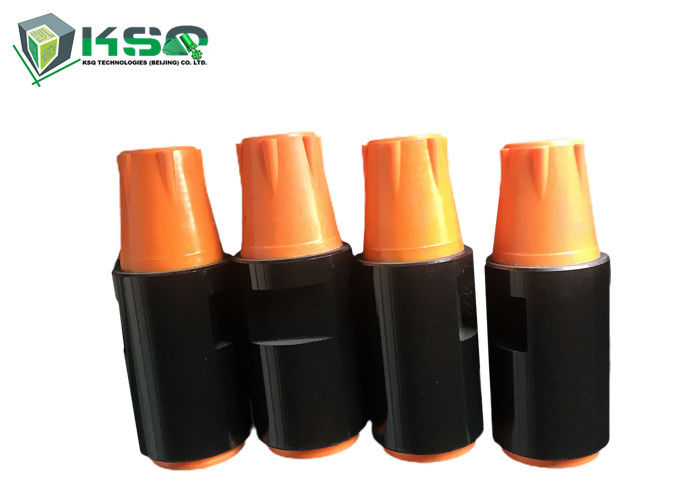

The top sub is a part of DTH hammer. It connects with drill pipe or connector. KSQ can provide various subs to meet with different shanks of your hammers. For example, DHD, COP, NUMA, QL, SD, etc.

We can manufacture customised specifications according to customer's requirements.



Specification



Female- Male
Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
mm mm mm mm kg
2 3/8"API Reg 2 3/8"API Reg 77 77 140 65 4.0 4148301570
2 3/8"API Reg 2 3/8"API Reg 90 90 140 65 5.5 4148301571
2 3/8"API Reg 2 3/8"API Reg 102 102 130 76 7.8 4148301572
2 3/8"API Reg 2 3/8"API Reg 90 90 144 65 5.5 4148301573
2 3/8"API Reg 2 3/8"API IF 95 95 130 65 8.0 4148301574
2 3/8"API Reg 2 7/8"API Reg 90 102 120 95 10.5 4148301575
2 3/8"API IF 3 1/2"API Reg 90 90 164 65 6.8 4148301576
2 7/8"API Reg 2 3/8"API Reg 90 90 154 65 6.5 4148301577
2 7/8"API Reg 2 3/8"API Reg 90 115 120 95 11.0 4148301578
3 1/2"API Reg 3 1/2"API Reg 115 115 219 95 12.5 4148301579
3 1/2"API Reg 2 3/8"API IF 115 115 160 95 10.5 4148301580
3 1/2"API Reg 2 7/8"API Reg 115 115 160 95 10.8 4148301581
3 1/2"API Reg 2 7/8"API IF 115 115 160 95 10.8 4148301582
3 1/2"API Reg 3 1/2"API Reg 115 115 160 95 10.5 4148301583
3 1/2"API Reg 4 1/2"API Reg 146 146 132 120 16.5 4148301584
4 1/2"API Reg 3 1/2"API Reg 146 115 235 95 19.0 4148301585
F48×10 F42×10 59 59 203 40 - 4148301586
F48×10 F48×10 59 59 203 40 - 4148301587
F48×10 2"API Reg 59 59 203 40 - 4148301588
Female - Female
Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
mm mm mm mm kg
2 3/8"API Reg 2 3/8"API Reg 77 77 200 65 4.5 4148301589
2 3/8"API Reg 2 3/8"API Reg 90 90 200 65 6.0 4148301590
2 3/8"API Reg 2 7/8"API Reg 90 90 225 65 6.2 4148301591
2 3/8"API Reg 3 1/2"API Reg 115 115 210 95 10.0 4148301592
Male - Male
Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
mm mm mm mm kg
2 3/8"API Reg 2 3/8"API Reg 90 90 70 65 4.6 4148301593
2 3/8"API Reg 3 1/2"API Reg 90 115 97 95 9.0 4148301594
3 1/2"API Reg 3 1/2"API Reg 115 115 90 95 10.0 4148301595



DTH Pipe Adapters and Subs for Connecting Drill Pipes in DTH Drilling 0
