IADC Code S122, S223, S324, 5 To 7 Blades Steel Body Diamond Drill Bit Applicated in Oil and Gas field

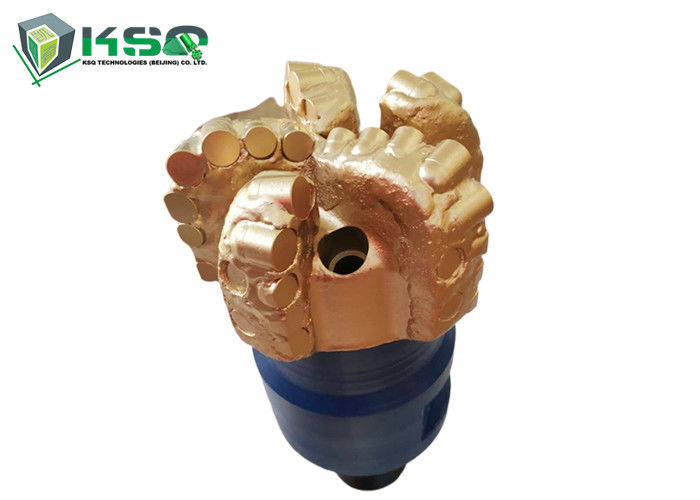

Large Image : IADC Code S122, S223, S324, 5 To 7 Blades Steel Body Diamond Drill Bit Applicated in Oil and Gas field

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	ISO, API
Model Number:	IADC Code: S122, S223, S324

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard export packing or as requirements
Delivery Time:	15-20 days
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Type:	PDC Drill Bit	Material:	Steel Body And PDC Cutters
Processing Type:	Casting	Blades:	4 To 7 Wings
API Shank:	2 3/8, 2 7/8, 4 1/2, 6 5/8, 7 5/8 Reg	Bit Profile:	Short Profile, Medium Profile
Bit Size:	4 To 17 1/2 Inch	Cutter Size:	13mm, 16mm, 19mm
Application:	Oil/gas/water Well Drilling	Rock Formation:	Soft To Medium Soft Formation
Highlight:	7 blades pdc bit , 5 blades pdc bit , pdc gas well drilling bit

Description

We can make various kinds of diamond drill bits from 4 inch to 17 1/2 inch, and can manufacture special structure bit according to customer's requirements. Steel body bits are manufactured by machining the steel bars per design.

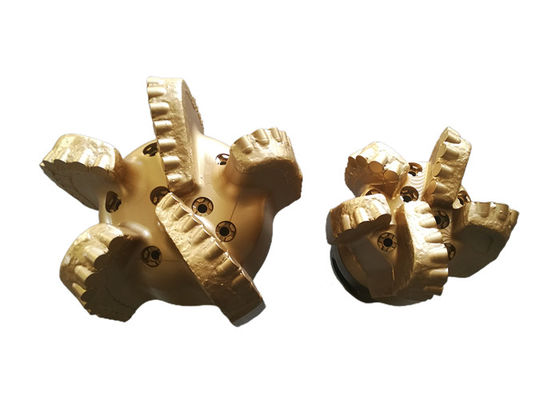

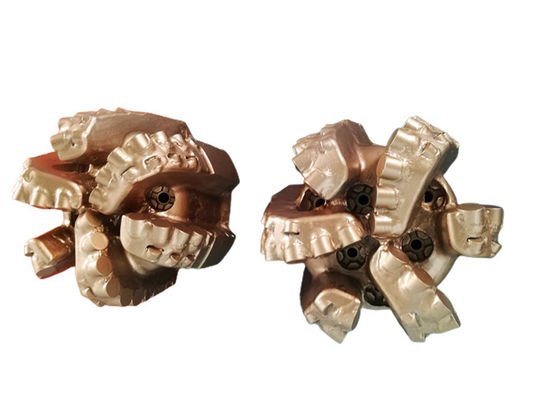

IADC Code S122, S223, S324, 5 To 7 Blades Steel Body Diamond Drill Bit Applicated in Oil and Gas field 0

Specifications

IADC Code: S122

Design Parameters						Operating Parameters
Size (in)	Primary cutter size (mm)	Gage length (in)	Nozzle	Number of blades	API Shank (in)	WOB(kn)	RPM	Flow rate (l/s)
3 7/8	13	1 1/2	4P	4	2 3/8 REG	5-25	90-350	8-20
4 5/8	13	1 1/2	4P	4	2 7/8 REG	5-30	90-360	8-20
4 1/2	13	1 1/2	4P	4	2 7/8 REG	5-30	90-360	8-20

IADC Code: S223

Design Parameters						Operating Parameters
Size (in)	Primary cutter size (mm)	Gage length (in)	Nozzle	Number of blades	API Shank (in)	WOB(kn)	RPM	Flow rate (l/s)
8 1/2	19	4	6NZ+1P	5	4 1/2 REG	25-100	60-260	22-35
12 1/4	19	3	6NZ+1P	5	6 5/8 REG	30-140	60-260	28-70
13 5/8	19	2 5/7	7NZ	5	6 5/8 REG	30-160	60-260	35-70
14 3/4	19	2 8/9	7NZ	5	7 5/8 REG	30-170	60-260	40-70
16	19	3	7NZ	5	7 5/8 REG	30-180	60-260	40-70
17 1/2	19	3	7NZ	5	7 5/8 REG	30-200	60-260	45-80

IADC Code: S324

Design Parameters						Operating Parameters
Size (in)	Primary cutter size (mm)	Gage length (in)	Nozzle	Number of blades	API Shank (in)	WOB(kn)	RPM	Flow rate (l/s)
8 1/2	16	3 1/9	6NZ	6	4 1/2 REG	25-100	60-260	22-35
8 3/4	16	3 1/9	6NZ	6	4 1/2 REG	25-100	60-260	22-35
9 1/2	16	2 1/5	8NZ	4	6 5/8 REG	25-130	60-260	22-35

Tag:

Contact Person: Mr. Yingkai Zhang

Tel: +86 18501231988
