11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling

11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling

  • 11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
  • 11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: 11 Degree Taper Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: Carton, wooden boxes or customized
Delivery Time: 15-20 days
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Material: Alloy Steel With TC Buttons Diameter: 32mm,36mm, 38mm, 40mm, 41mm
Buttons: 4, 5 , 6 , 7, 8 Buttons Skirt: Normal Or Long
Flushing Holes: 2 Or 3 Holes Taper Degree: 4, 7, 11, 12 Degree
Button Shape: Ballistic, Spherical, Conical Shank Size: H19, H22, H25
Color: Green, Black Or Others Packing: Wooden Cases
High Light:

11 degree tapered button bit

,

tapered button bit for rock drilling

,

carbide button bits 11 degree

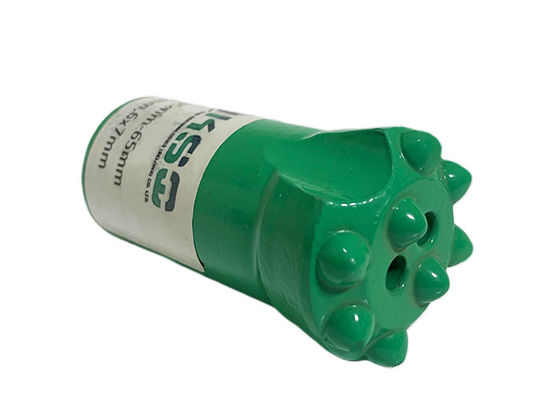

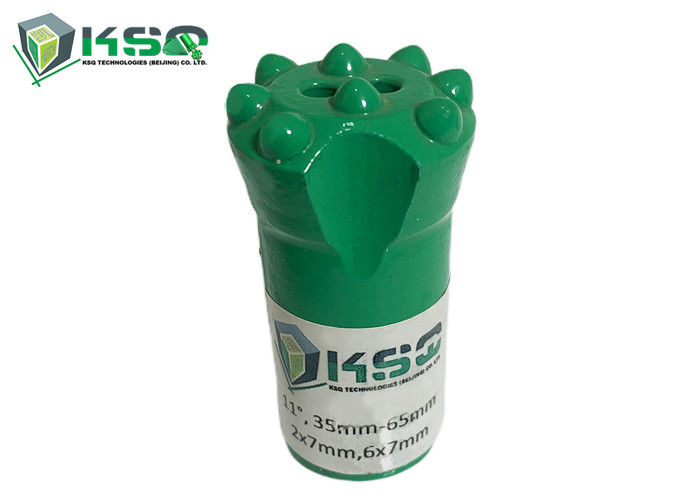

11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling



Taper button bit, as a small hole bit, are used for air leg or hand held jack hammer driller in quarrying and mining.

With diameter of 32mm to 65mm, they are widely used in mining and quarrying, with combination of well anti-wear and anti-impact carbide buttons and high performance steel, it features the advantages of higher driving efficiency, long service life, better powder exhausting and easier bit back.



Specifications



11° Tapered Button Bit Bit Dia. Buttons and Size (mm) Flushing Hole Weight Product Code
mm inch Front Gauge Front Side kg

Button Bit, Short Skirt
BS5XX
38 1 1/2 2x8 3x9 1 1 0.39 BS538-11D-22
40 1 4/7 2x8 3x9 1 1 0.4 BS540-11D-22-1
40 1 4/7 2x9 3x9 1 2 0.4 BS540-11D-22-2

Button Bit, Short Skirt
BS6XX
33 1 2/7 2x7 4x7 1 1 0.25 BS633-11D-22
34 1 1/3 2x7 4x7 1 1 0.29 BS634-11D-22
36 1 3/7 2x7 4x7 1 1 0.36 BS636-11D-22

Button Bit, Short Skirt
BS7XX
32 1 1/4 2x7 5x7 1 1 0.24 BS732-11D-22
35 1 3/8 2x7 5x7 1 1 0.33 BS735-11D-22-1
35 1 3/8 2x7 5x8 1 1 0.33 BS735-11D-22-2
36 1 3/7 2x7 5x8 1 1 0.36 BS736-11D-22
38 1 1/2 2x7 5x8 1 1 0.39 BS738-11D-22-1
38 1 1/2 2x7 5x9 1 1 0.39 BS738-11D-22-2
40 1 4/7 2x7 5x9 1 1 0.4 BS740-11D-22-1
40 1 4/7 2x8 5x9 1 1 0.4 BS740-11D-22-2
41 1 5/8 2x7 5x9 1 1 0.41 BS741-11D-22

Button Bit, Long Skirt
BL7XX
32 1 1/4 2x7 5x7 1 1 0.3 BL732-11D-22
33 1 2/7 2x7 5x7 1 1 0.31 BL733-11D-22
35 1 3/8 2x7 5x9 1 1 0.38 BL735-11D-25
36 1 3/7 2x7 5x9 1 1 0.39 BL736-11D-25
38 1 1/2 2x7 5x9 1 1 0.41 BL738-11D-22
38 1 1/2 2x7 5x9 1 1 0.41 BL738-11D-25
41 1 5/8 2x7 5x9 1 1 0.42 BL741-11D-22
41 1 5/8 2x7 5x9 1 1 0.42 BL741-11D-25

Button Bit, Long Skirt
BL8XX
33 1 2/7 2x7 6x7 1 1 0.31 BL833-11D-22
35 1 3/8 2x7 6x7 1 1 0.35 BL835-11D-22





11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling 0

11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling 1
