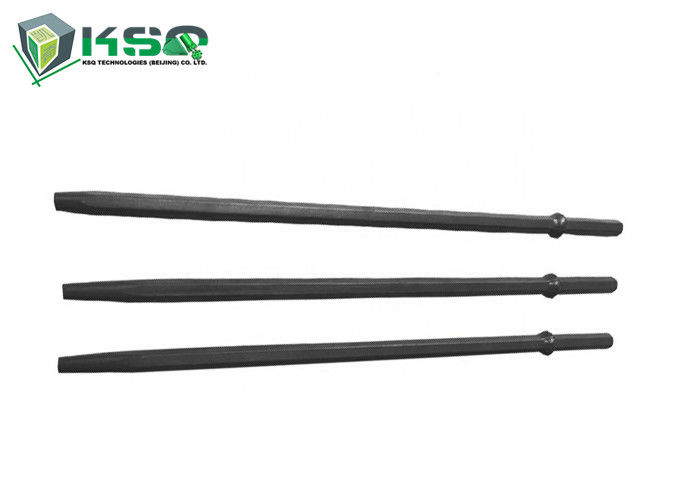

600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling

600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling
600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling 600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling 600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling

Large Image :  600mm To 8000mm H22 H25 Tapered Drill Rod For Small Hole Rock Drilling

Product Details:

Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Hex Tapered Rod

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customized
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Detailed Product Description
Material: Alloy Steel Shank: H22x108mm, H25x159mm
Type: Tapered Drilling Tools Length: 600mm-8000mm
Usage: Small Hole Drilling Color: Black Or Customised
Bit Dia.: 22mm (7/8"), 25mm (4 1/4") Advantage: OEM
Processing Type: Forging Tapered Degree: 7, 11, 12 Degree
High Light:

h25 tapered drill rod

,

h22 tapered drill rod

,

600mm tapered drill rod

Description

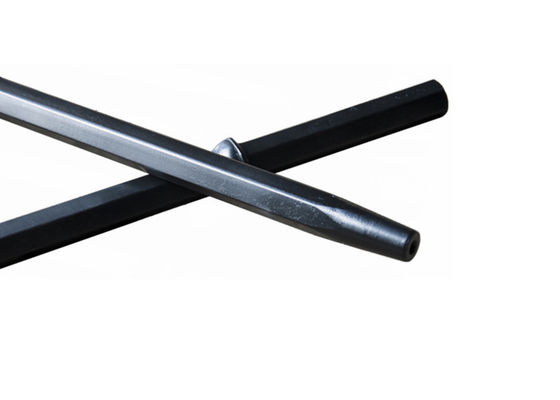

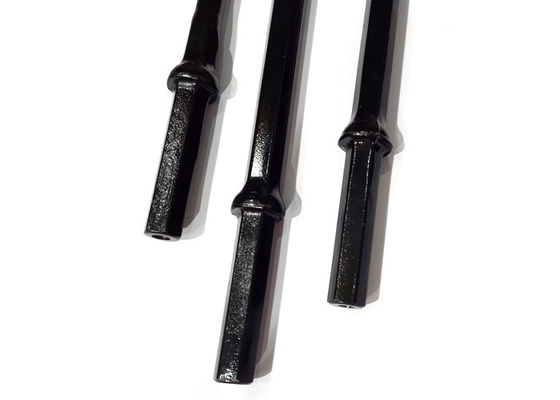

Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end.


Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling


Specification

Hex Tapered Rod Length Weight Product Code
mm ft kg
7° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") 600 2 1.93 H22-7D-600
800 2 5/8 2.54 H22-7D-800
1000 3 2/7 3.15 H22-7D-1000
1200 3 8/9 3.76 H22-7D-1200
1500 4 8/9 4.68 H22-7D-1500
1600 5 1/4 4.98 H22-7D-1600
1800 5 8/9 5.59 H22-7D-1800
2000 6 5/9 6.2 H22-7D-2000
2200 7 2/9 6.81 H22-7D-2200
2300 7 5/9 7.12 H22-7D-2300
2400 7 7/8 7.42 H22-7D-2400
2500 8 1/5 7.73 H22-7D-2500
2600 8 5/9 8.03 H22-7D-2600
3000 9 5/6 9.25 H22-7D-3000
3500 11 1/2 10.78 H22-7D-3500
4000 13 1/8 12.3 H22-7D-4000
4500 14 3/4 13.83 H22-7D-4500
5000 16 2/5 15.35 H22-7D-5000
5500 18 16.88 H22-7D-5500
6000 19 2/3 18.3 H22-7D-6000
7° Hex Tapered Rod Shank 25x159mm (1"x6 1/4") 4000 13 1/8 16.1 H25-7D-4000
4700 15 3/7 18.9 H25-7D-4700
5000 16 2/5 22.1 H25-7D-5000
5500 18 22.1 H25-7D-5500
6000 19 2/3 24.1 H25-7D-6000
Hex Tapered Rod Length Weight Product Code
mm ft kg
11° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") 610 2 2.2 H22-11D-610
1220 4 4.1 H22-11D-1220
1830 6 5.9 H22-11D-1830
2000 6 5/9 6.4 H22-11D-2000
2435 8 7.8 H22-11D-2435
2600 8 5/9 8.3 H22-11D-2600
3200 10 1/2 10.1 H22-11D-3200
3655 12 11.5 H22-11D-3655
4000 13 1/8 12.6 H22-11D-4000
4800 15 3/4 14.9 H22-11D-4800
5600 18 3/8 17.4 H22-11D-5600
6400 21 19.8 H22-11D-6400
7200 23 5/8 22.2 H22-11D-7200
8000 26 1/4 24.6 H22-11D-8000
Hex Tapered Rod Length Weight Product Code
mm ft kg
12° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") 610 2 2.2 H22-12D-610
1220 4 4.1 H22-12D-1220
1830 6 5.9 H22-12D-1830
2000 6 5/9 6.4 H22-12D-2000
2435 8 7.8 H22-12D-2435
2600 8 5/9 8.3 H22-12D-2600
3200 10 1/2 10.1 H22-12D-3200
3655 12 11.5 H22-12D-3655
4000 13 1/8 12.6 H22-12D-4000
4800 15 3/4 14.9 H22-12D-4800
5600 18 3/8 17.4 H22-12D-5600
6400 21 19.8 H22-12D-6400
7200 23 5/8 22.2 H22-12D-7200
8000 26 1/4 24.6 H22-12D-8000
12° Hex Tapered Rod Shank 25x159mm (1"x6 1/4") 1830 6 7.96 H25-12D-1830
2435 8 10.38 H25-12D-2435
3050 10 12.84 H25-12D-3050
3655 12 15.26 H25-12D-3655
3965 13 16.5 H25-12D-3965
4270 14 17.72 H25-12D-4270
4880 16 20.16 H25-12D-4880
5530 18 1/7 22.76 H25-12D-5530
6095 20 25.02 H25-12D-6095
